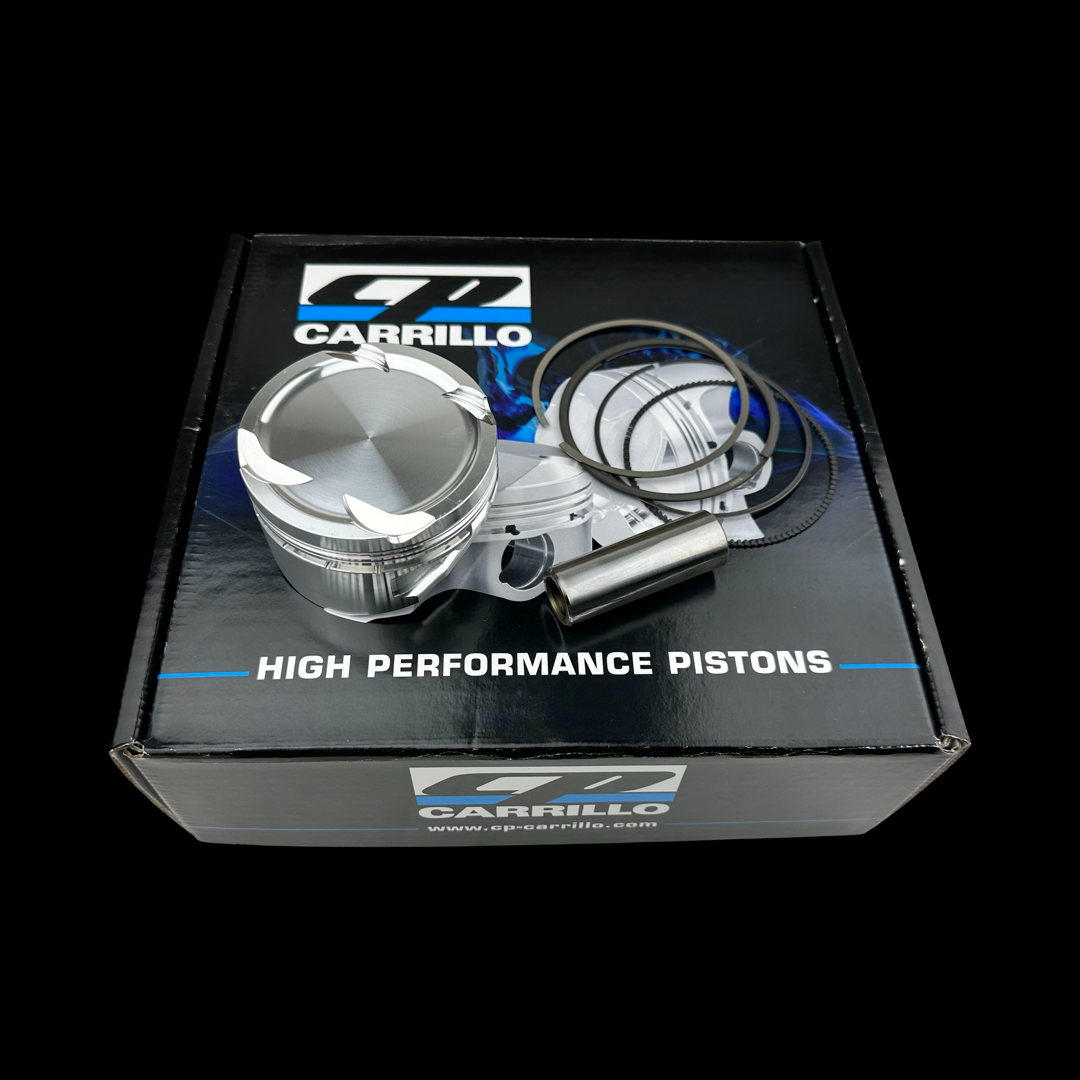

CP7116 – Honda B16A CP Shelf Pistons w/All Hardware – 81.5mm x 12.5:1

CP7116: The Definitive Forged Upgrade for the Honda B16A

For the performance builder seeking not just an improvement but a fundamental recalibration of the legendary Honda B16A’s volumetric efficiency and mechanical integrity, the CP Carillo CP7116 shelf piston set stands as the unequivocal benchmark. Engineered to the exacting standards that dominate professional motorsport, this 81.5mm, 12.5:1 compression ratio kit transcends the realm of “replacement parts.” Each piston is a unibody forging from 2618-T6 aluminum alloy, a material selection that prioritizes ultimate tensile strength and fatigue resistance over thermal expansion characteristics, making it the mandatory choice for high-boost, high-RPM, or nitrous applications where cylinder pressure is extreme. Unlike cast or even lesser forged alternatives, the CP7116 is designed from the outset for controlled deformation and maximum durability under punishing conditions. This is not a mere overbore option; it is a holistic performance system that includes a complete wrist pin and Spirolox retention package, ensuring a drop-in solution engineered for perfect harmony with the B16A’s renowned VTEC architecture. The result is an engine capable of sustaining significantly elevated power levels while delivering the razor-sharp throttle response and explosive top-end charge that defines Honda performance at its pinnacle.

Metallurgical & Geometric Engineering: The Foundation of Reliability

The core of the CP7116’s superiority lies in its material science and sophisticated design geometry. The use of 2618 alloy is a critical differentiator. While it exhibits slightly greater cold clearance than a 4032 alloy piston, this property is its greatest asset under load. The alloy’s lower silicon content provides superior ductility and fracture toughness, allowing it to absorb detonation events and thermal shock that would catastrophically fail a more brittle component. CP’s proprietary forging process, utilizing over 8,000 tons of pressure, aligns the metal’s grain structure to follow the piston’s final contours, dramatically increasing strength throughout the entire component, particularly in the critical pin boss and ring land areas.

Geometrically, the piston profile is optimized for the B16A’s cylinder bore. The asymmetric skirt design minimizes contact area to reduce friction and heat build-up while maintaining perfect piston-to-wall alignment throughout the stroke, combating the parasitic power loss and wear induced by piston rock. The contour of the 12.5:1 compression dome is not a simple hemisphere; it is a computer-optimized shape designed to promote efficient combustion flame travel and work in concert with the B16A/B16B cylinder head chamber to minimize quenching areas and hot spots that can lead to pre-ignition. This precise dome volume, combined with the recommended head gasket thickness and deck height, allows builders to achieve a true and consistent 12.5:1 static compression ratio, a key enabler for high-output naturally aspirated builds. For a deeper technical analysis of piston alloy properties and their impact on engine building, refer to this authoritative resource on piston metallurgy at Engine Labs.

Performance Benefits & System Integration

Installing the CP7116 piston kit transforms the B16A from a responsive street motor into a precision powerplant. The benefits are systematic and measurable, affecting every aspect of engine performance.

• Extreme Duty Forged Construction: Provides the structural margin of safety necessary for sustained high-RPM operation, forced induction beyond 400whp, or nitrous oxide use, where cylinder pressures can exceed 1,500 psi.
• Optimized 12.5:1 Compression Ratio: Directly increases thermal efficiency and specific output for naturally aspirated applications, yielding substantial gains in torque and horsepower across the entire powerband, with a pronounced effect on top-end power.
• Reduced Rotating Assembly Weight: Each forged piston is significantly lighter than its OEM cast counterpart, reducing reciprocating mass. This lowers the stress on connecting rods and crankshaft bearings, decreases parasitic inertia, and allows the engine to rev more freely and accelerate faster.
• Proprietary Ring Land Design: Features CNC-machined platforms for the included performance ring set (typically a ductile iron top ring and Napier-style second ring). This design maximizes ring seal from startup to redline, crucial for maintaining cylinder pressure and controlling blow-by.
• Complete Hardware Inclusion: The kit includes precisely matched wrist pins and Spirolox retainers, ensuring perfect compatibility and eliminating the guesswork and potential failure point of mixing components from different manufacturers.

Vehicle Fitment & Application Notes

The CP7116 (also referenced under part number SC7116) is engineered as a direct-fit performance replacement for the 1.6-liter Honda B16A engine family. Correct installation requires precision machining and assembly techniques to realize its full potential and ensure longevity.

Primary Fitment:

• Honda Civic/CRX SiR (EF8, EF9) – JDM B16A
• Honda Civic SiR II (EG6) – JDM B16A
• Honda Integra XSi/RSi (DA6, DA8) – JDM B16A
• Honda Del Sol SiR (EG2) – JDM B16A
• Acura Integra GS-R (1994-1995, DB7 chassis) – USDM B17A1 (requires verification of final deck height and compression calculation)

Critical Application Instructions: This 81.5mm bore size is a 0.5mm overbore from the standard B16A bore of 81.0mm. The engine block must be professionally bored and honed to 81.5mm with a finish optimized for moly or plasma-moly rings, typically a plateau hone with a specific crosshatch angle. Piston-to-wall clearance must be set according to CP’s specifications for the 2618 alloy, which is wider than OEM clearance (typically 0.0035″ – 0.0045″). Failure to set proper clearance will result in piston scuffing or excessive noise. Final assembly must include precise measurement of deck height, squish, and compression ratio using the actual combustion chamber volume of your cylinder head. The use of a high-quality performance head gasket from Cometic or equivalent is strongly recommended.

Technical Specifications: CP7116 Piston Kit

The CP7116 shelf piston kit represents the apex of purpose-built componentry for the Honda B16A. It delivers the foundational strength required for any serious performance endeavor, whether that be chasing every last naturally aspirated horsepower or building a bulletproof foundation for forced induction. By integrating advanced metallurgy, precision geometry, and a complete hardware suite, CP Carillo provides the performance builder with a component that removes compromise from the equation. This is the choice when the objective is not just to rebuild an engine, but to definitively upgrade it.
