Elite 2500 Subaru WRX MY06-10 Plug ‘n’ Play Adaptor Harness Kit

Modern Management for the Hawk-Eye: WRX Elite Adaptor Harness

The 2006-2010 Subaru WRX marked a significant evolution in the EJ platform, introducing advanced CAN bus integration and refined Drive-By-Wire (DBW) systems. The Elite 2500 Subaru WRX MY06-10 Plug ‘n’ Play Adaptor Harness Kit allows tuners to bypass the limitations of the factory Denso ECU and unlock the full potential of the EJ255 engine. This harness serves as a seamless bridge, translating the sophisticated signals of the WRX’s body and engine wiring into a format compatible with the Haltech Elite 2500 ECU. By utilizing a direct plug-in architecture, this kit eliminates the need for invasive wiring modifications, preserving the vehicle’s factory loom while enabling advanced motorsport features such as launch control, anti-lag, and full flex-fuel capability.

Engineering for CAN Bus and DBW

This adaptor harness is engineered to handle the specific requirements of the MY06-10 “Hawk-Eye” and “Stink-Eye” chassis. The harness correctly routes the electronic throttle pedal and throttle body signals to the Elite 2500, ensuring safe and responsive DBW operation. Furthermore, it integrates with the vehicle’s CAN bus network to maintain functionality of critical dashboard systems where possible. The adaptor includes an M14 air temperature sensor to replace the factory MAF-based temperature reading, allowing for a true Speed Density tuning strategy that is essential for high-power turbocharged applications. The auxiliary I/O plug provided allows for the easy addition of external sensors, such as wideband O2 or fuel pressure, directly to the ECU without cutting into the main engine harness.

Compatibility and Limitations

It is critical to identify the specific ECU manufacturer of your Subaru before installation. This harness is designed exclusively for vehicles equipped with the Denso factory ECU. It is not compatible with models using the Hitachi ECU. The harness is pin-matched for the Australian Domestic Market (ADM) WRX MY06-10 and the STI MY06-07 (2.5L Denso). Users must verify their ECU type to avoid pinout mismatches that could damage the engine management system.

Fitment Guide

• Subaru WRX: MY06-10 (ADM Only)
• Subaru STI: MY06-07 2.5L (Denso ECU Only)

Technical Specifications

Summary & Includes

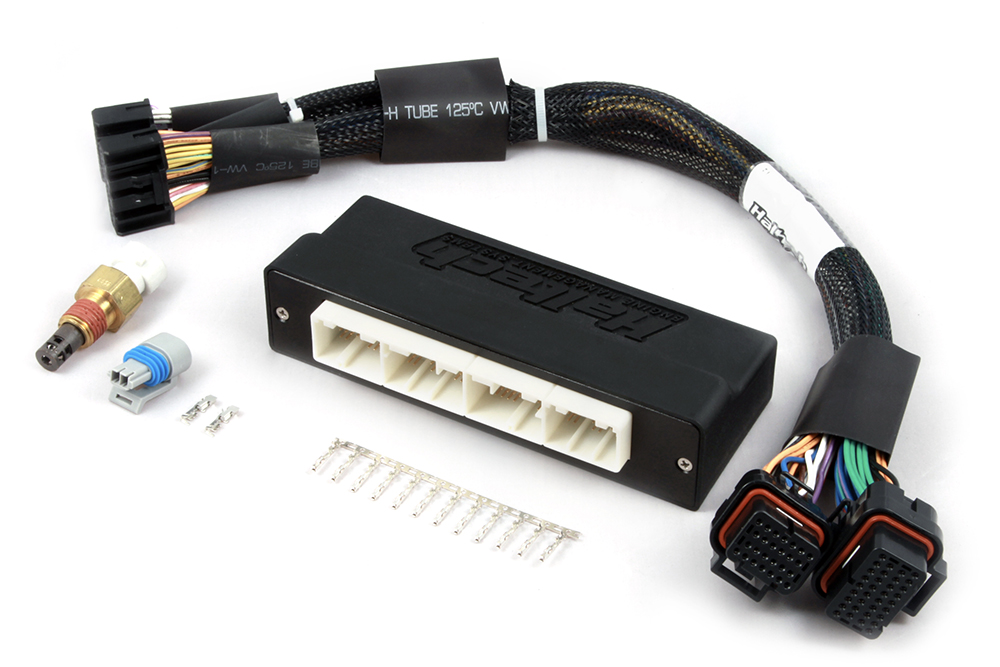

Includes:

• 1 x Injection Molded Plug ‘n’ Play Adaptor Harness
• 1 x M14 x 1.5 Air Temp Sensor with matching plug and pins
• 1 x Auxiliary I/O 16 Pin Tyco plug and pins

Note: Strictly for Denso ECU models. Incompatible with Hitachi ECU variants.
