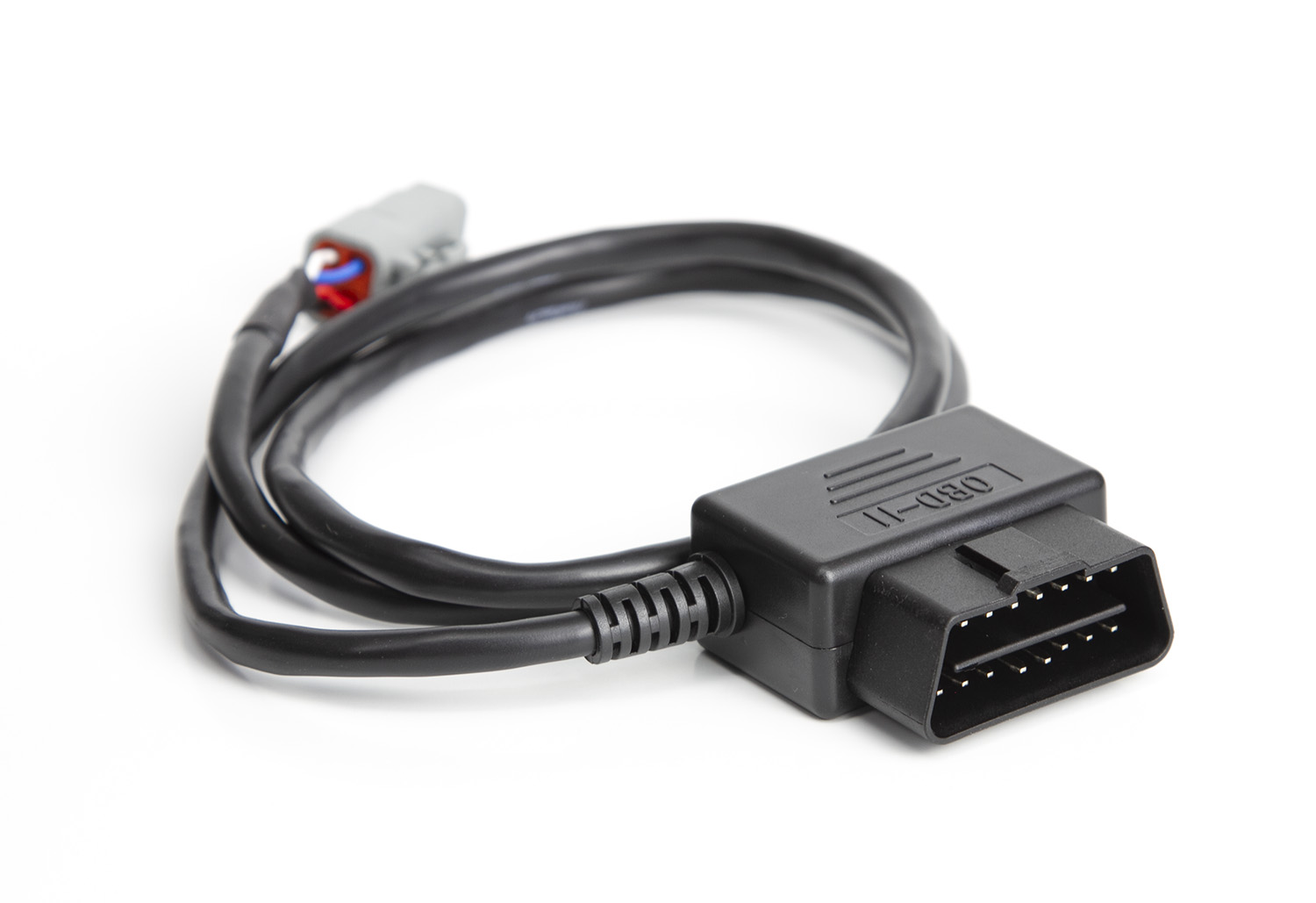

Ford MK1 Radio Reprogramming Cable Length: 0.8M / 2.6Ft

Specialized Diagnostics: Ford MK1 Radio Reprogramming Cable

The Ford MK1 Radio Reprogramming Cable (0.8M / 2.6Ft) is a purpose-built diagnostic bridge designed to solve a specific integration challenge in the Ford Falcon FG Mk1 platform. When upgrading to a high-performance engine management system like the Haltech Elite PRO Plug-in ECU, the vehicle’s complex CAN bus network—specifically the communication between the ECU and the Interior Command Centre (ICC) or Radio unit—often requires recalibration or handshake protocols to function correctly. This cable is the engineering key to that process. It adapts the specialized DTM4 CAN port found on the Haltech harness to a standard OBDII CAN interface, allowing technicians to connect factory-level or aftermarket diagnostic tools directly to the radio’s communication line for reprogramming, code clearing, and configuration.

Technical Architecture: DTM4 to OBDII Bridge

This assembly is not a generic adapter; it is a precision-wired interface. On one end, a Deutsch DTM4 connector mates directly with the auxiliary CAN port provided on the Elite PRO Plug-in harness for the Ford Falcon “Barra” i6. On the other, a standard J1962 female OBDII connector provides a port for your scan tool or reprogramming interface (such as VCM Suite or Ford IDS hardware). The 0.8-meter length is calculated to provide sufficient reach from the ECU mounting location (often in the footwell or behind the dash) to the technician’s workspace, without introducing excessive signal reflection or impedance mismatch on the CAN High/Low lines. The cable utilizes twisted-pair construction for the CAN data lines, ensuring high noise immunity against the electromagnetic interference common in the footwell area.

Operational Benefits for the Tuner

For workshops specializing in the Ford Barra platform, this cable eliminates the need for “pin-out” guesswork or hacking into the factory wiring loom.

• Seamless Radio Integration: Facilitates the necessary software updates to the Ford FG Mk1 Radio/ICC to ensure it recognizes the new ECU, preventing security lockouts or display errors.
• Safe Data Access: Provides a dedicated, fused (via the ECU or vehicle) connection point that isolates the radio programming traffic from other bus noise.
• Plug-and-Play Utility: Designed specifically for the Elite PRO Plug-in ecosystem, ensuring correct pin alignment for CAN High, CAN Low, Power, and Ground.

Fitment Guide

This cable is a specialized service tool intended for specific vehicle platforms equipped with Haltech Plug-in solutions.

• Vehicle: Ford Falcon FG Mk1 (I6 Barra Engines).
• ECU Compatibility: Haltech Elite PRO Plug-in ECU (Ford Falcon i6 “Barra”).
• Application: Reprogramming Radio/ICC modules via CAN bus.

Technical Specifications

Summary & Includes

The package contains the dedicated adapter cable required to bridge your diagnostic tool to the Ford FG Mk1 Radio sub-system through the Haltech ECU harness.

Includes:

• 1 x Ford MK1 Radio Reprogramming Cable (0.8M)

Note: This cable is for reprogramming/diagnostic use only and is not intended to be left permanently connected to the vehicle.
