HPI6 – High Power Igniter – 15 Amp Six Channel with Plug & Pins

Professional Loom Integration: HPI6 Igniter with Plug & Pins

The HPI6 High Power Igniter – 15 Amp Six Channel module is a precision power stage designed for high-performance 6-cylinder ignition systems. This specific SKU is designed for the custom loom builder, providing the 6-channel HPI module and the corresponding AMP 26-Pin 2 Row Superseal Connector and Pins. This allows for a completely bespoke harness integration on engines like the 2JZ-GTE, RB26DETT, or S54, ensuring that 15 amps of switching power per channel are delivered through motorsport-grade wiring. It is the professional’s tool for achieving absolute spark energy and detonation protection on high-boost configurations.

Engineering Deep-Dive: MOSFET Signal Processing

The HPI6 acts as a high-current bridge between a standalone ECU integration and the ignition coils. It receives a 0-5V logic trigger and uses a high-speed MOSFET array to switch the ground path for the coils. This Analogue-to-Digital interface logic is designed for maximum efficiency and thermal stability. By providing the module with the loose plug and pins, Haltech ensures that the harness integration can utilize Milspec (Tefzel) wiring without any splices. This is critical for maintaining Ignition Timing accuracy at high RPM, where even a tiny increase in resistance can cause timing jitter and robbed power. The HPI6 is housed in a rugged aluminum heatsink, engineered to survive the intense thermal environment of a professional race engine.

Operational Benefits for the 6-Cylinder Specialist

For the tuner specializing in RB26 or 2JZ platforms, the HPI6 provides the electrical headroom needed to eliminate spark blow-out. By providing a stable 15-amp capacity, the HPI6 ensures that even with rich fuel map calibrations or high levels of water/methanol injection, the combustion event remains consistent. This allows the tuner to find the true MBT timing cell by cell. Additionally, the HPI6’s discrete channel design allows for full sequential ignition, enabling individual cylinder timing trims—a vital safety feature for protecting high-risk cylinders from detonation. This module is the key to unlocking the full potential of high-energy “Dumb” coils in a 6-cylinder environment.

Technical Specs Table

Summary & Includes

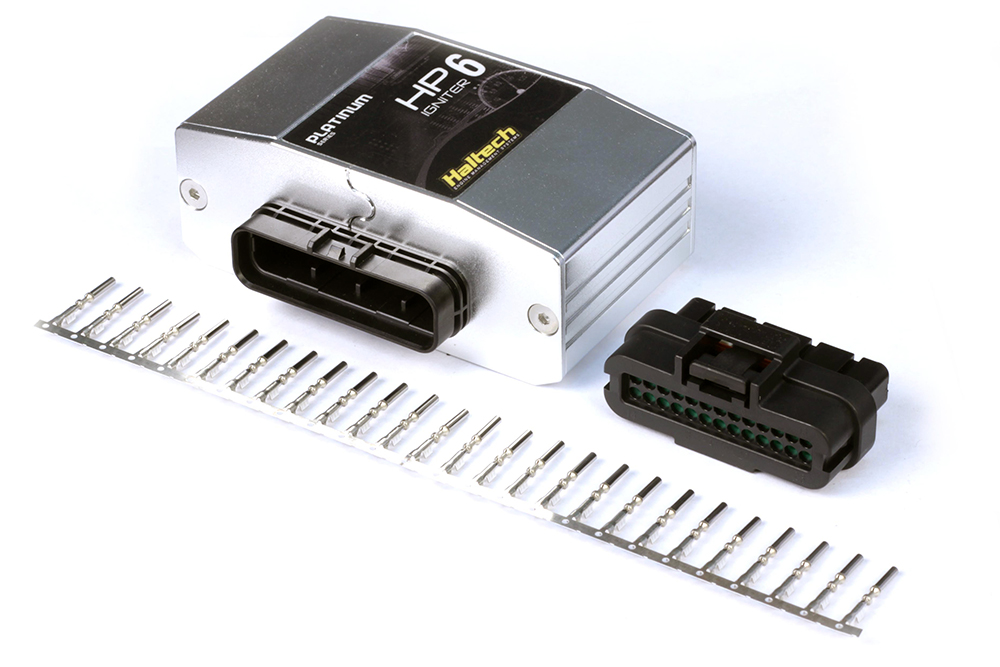

The HPI6 with Plug & Pins is the master-builder’s choice for 6-channel ignition amplification. Includes: 1 x HPI6 Six-Channel Module and 1 x Matching AMP 26-Pin Superseal Connector with Pins. Note: Ideal for custom engine looms requiring sequential 6-cylinder ignition control.
