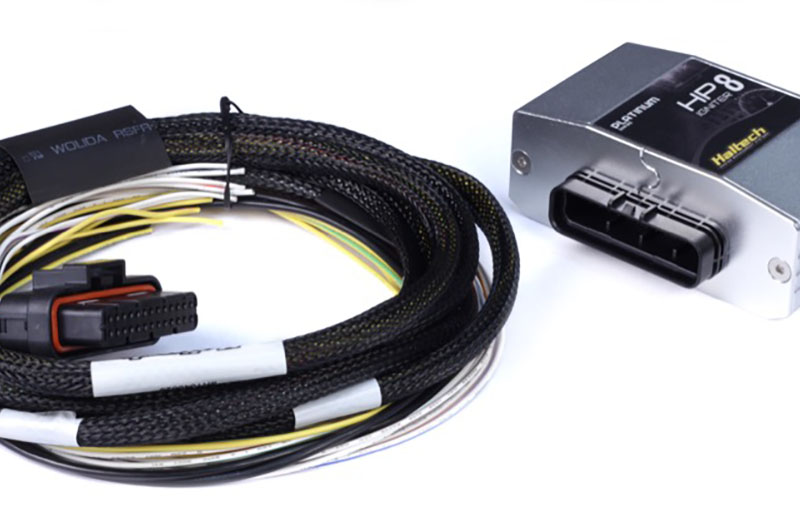

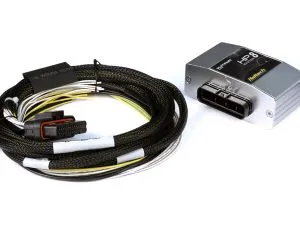

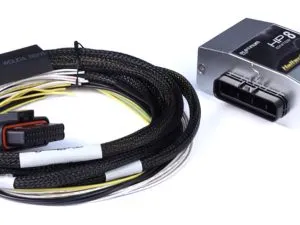

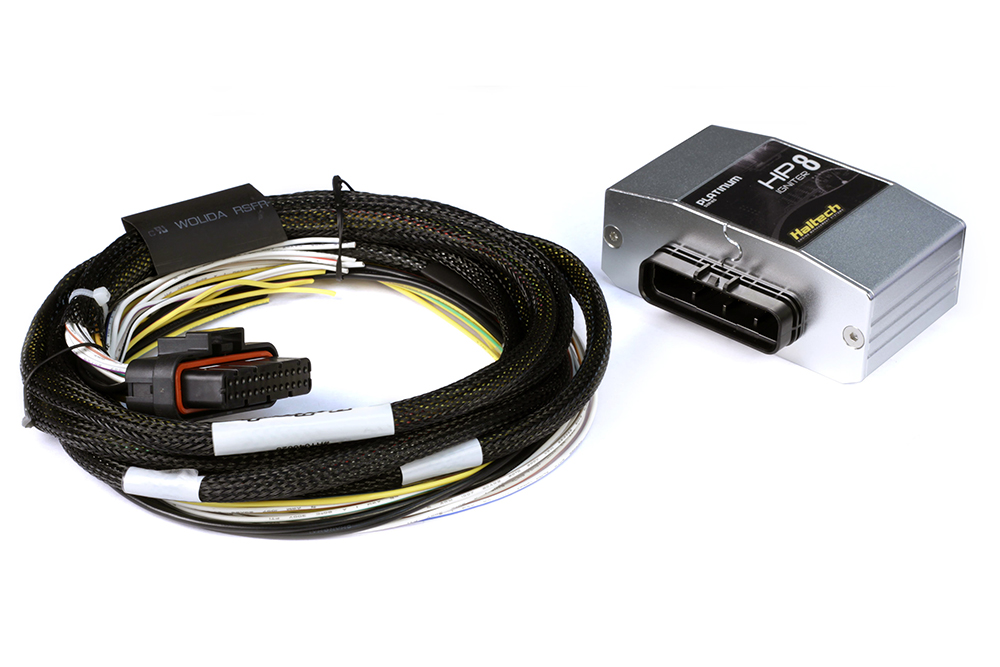

HPI8 – High Power Igniter – 15 Amp Eight Channel Flying Lead Kit Length: 2.0m (78″)

V8 Ignition Dominance: HPI8 8-Channel High Power Flying Lead Kit

The HPI8 High Power Igniter Kit is the ultimate solution for high-horsepower V8, V10, and multi-rotor engines that require an external ignition amplifier. This comprehensive kit includes the high-performance 8-channel HPI8 module and a 2.0-meter (78″) flying lead loom. Designed to handle 15 amps continuous per channel, this system acts as the high-current interface between your standalone ECU integration and your ignition coils. Whether you are running a twin-turbo LS-swap, a big-block Hemi, or a 4-rotor rotary, the HPI8 provides the current reserve necessary to fully saturate your coils, eliminating high-RPM misfires and ensuring maximum detonation protection.

Engineering Principles: MOSFET Switching and Current Reserves

Modern “Dumb” coils require significant primary current to produce a high-energy spark. The HPI8 uses advanced MOSFET-based power switching to take a low-current 5V logic signal from the ECU and pull the coil negative to ground. This Analogue-to-Digital interface logic is designed for zero latency, ensuring that the ECU’s Ignition Timing commands are followed with surgical precision. The 15-amp per channel rating provides a massive safety margin, preventing the “spark fade” that occurs with lesser igniters at high RPM. In a fuel map calibration scenario, this consistency allows the tuner to find the true MBT timing, knowing that every cylinder is receiving identical spark energy, regardless of engine speed or load.

Operational Benefits for Custom Harness Construction

The HPI8 kit is designed for the harness integration specialist. The 2.0m flying lead loom allows for professional routing around the engine bay or through the firewall. By centralizing the high-current ignition switching in the HPI8 module, you significantly reduce the amount of EMI (Electromagnetic Interference) traveling back to the ECU. This is vital for maintaining clean sensor signals for crank, cam, and MAP sensors. Additionally, the HPI8 module features an integrated aluminum heatsink to manage the thermal energy generated during high-duty-cycle operation, ensuring that your ignition system remains stable during long pulls or endurance races.

Technical Specs Table

Summary & Includes

The HPI8 Flying Lead Kit is the definitive ignition package for high-cylinder-count racing engines. Includes: 1 x HPI8 Eight-Channel Module and 1 x 2.0m Flying Lead Harness. Note: Mandatory for high-current sequential ignition on V8 and multi-rotor engines.
