iC-7/uC-10 Tube Mount For tube OD 31.75mm (1.25″) Size: 60mm x 44mm

Rigid Roll-Cage Integration for Digital Dashes

In a competition environment, the stability of your instrumentation is non-negotiable. The iC-7/uC-10 Tube Mount is a precision-machined solution designed to secure your Haltech digital dash directly to the vehicle’s roll cage or chassis tubing. Engineered specifically for 31.75mm (1.25″) OD tubing, this mount bridges the gap between the structural safety cell of the car and the driver’s line of sight. Unlike flimsy strap-clamps or universal brackets that vibrate and slip under G-loading, this anodized aluminum mount provides a positive, mechanical lock to the tube. It creates a solid foundation that ensures your shift lights, warning alarms, and lap times remain perfectly legible, even when bouncing over curbing or traversing rough rally stages.

Engineering Deep-Dive: Billet Construction & Vibration Damping

This mount is CNC-machined from a solid block of aluminum, chosen for its high strength-to-weight ratio and natural vibration damping properties. The clamp design maximizes surface area contact with the tube, distributing the clamping load to prevent crushing thin-wall chromoly or mild steel cages. The mounting face, sized at 60mm x 44mm, is specifically drilled to interface with the Haltech iC-7 and uC-10 mounting brackets (HT-060070/HT-060071). By rigidly coupling the dash to the chassis, the mount eliminates the resonant frequency vibration that often plagues dashboard-mounted electronics, protecting the internal components of your expensive display from fatigue failure.

Operational Benefits: Ergonomic Positioning

The tube mount system offers unparalleled flexibility in cockpit layout. In many race cars, the original dashboard is removed or modified, leaving no suitable surface for gauge mounting. This tube mount allows you to position the dash directly on the steering column extension, the main hoop cross-bar, or an A-pillar down bar. This adjustability ensures that the display can be placed directly in the driver’s peripheral vision, reducing eye-diversion time and allowing the driver to maintain focus on the track. The black anodized finish not only protects against corrosion but also reduces glare, ensuring the mount disappears into the cockpit shadows.

Fitment and Compatibility

Tube Size: Fits any round tubing with an Outer Diameter (OD) of 31.75mm (1.25 inches).

Dash Compatibility: Designed to mate with Haltech iC-7 and uC-10 Mounting Brackets (HT-060070 and HT-060071).

Technical Specifications

Summary & Includes

The HT-060072 Tube Mount is the professional fabricator’s choice for integrating digital dashes into tube-frame vehicles. It offers strength, style, and security in a compact package.

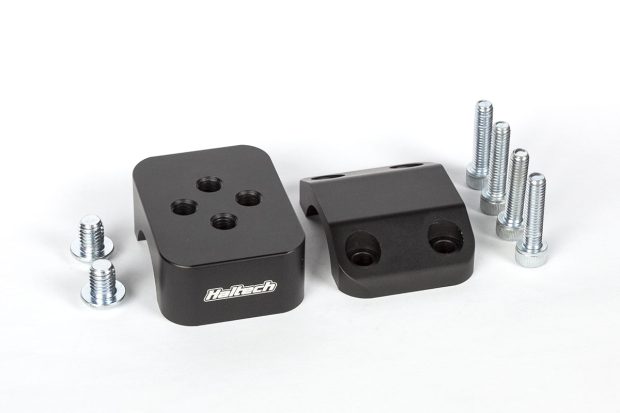

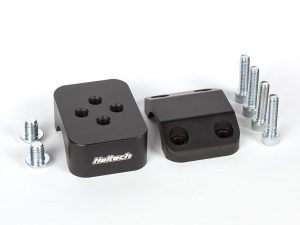

Includes:

• 1 x Anodized Dash Tube Mount (31.75mm ID)
• 2 x Zinc M8 x 10 Bracket Mounting Screws
• 4 x Zinc M6 x 25 Assembly Screws

Installation Note: Ensure the roll bar tubing is clean and free of thick paint or powder coat at the clamping area to ensure a secure, non-slip fit.
