The Apex of Vehicle Control: Nexus R5 VCU

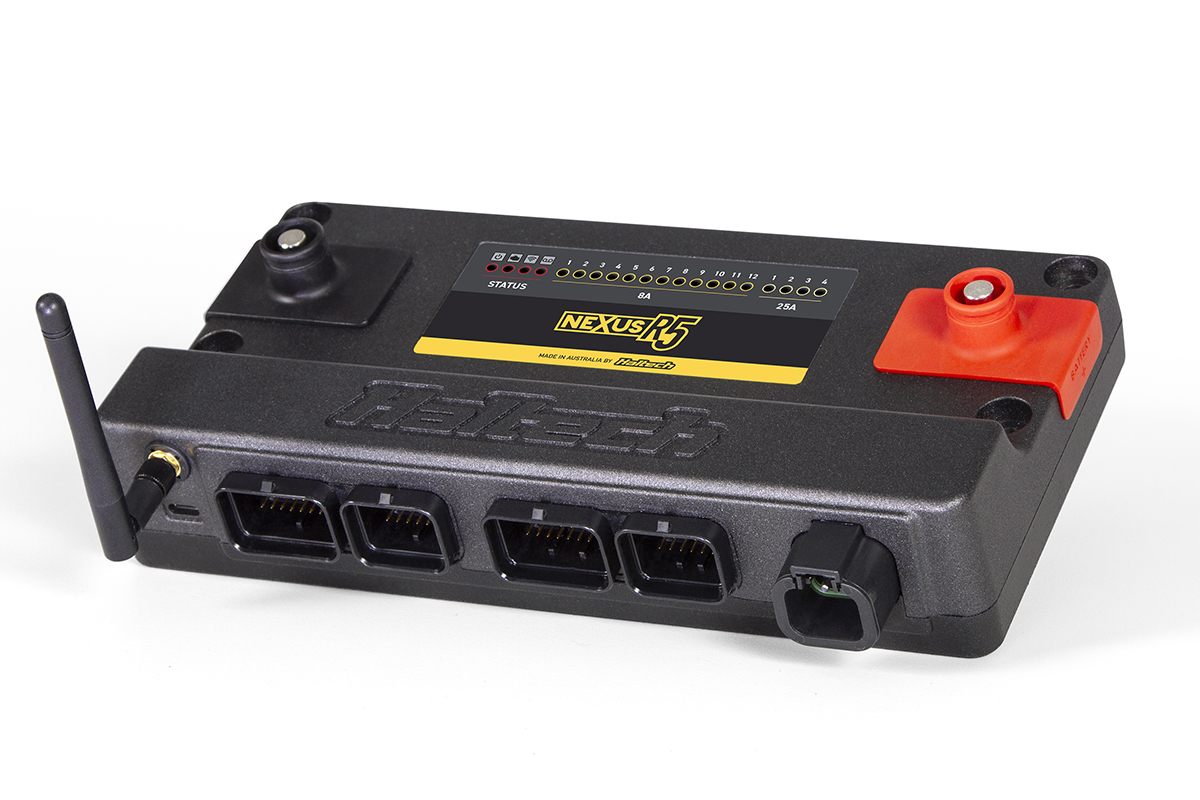

The Haltech Nexus R5 VCU (Vehicle Control Unit) is a revolutionary device that integrates the functions of a high-end Engine Control Unit (ECU), a Power Distribution Module (PDM), a Data Logger, and a Wideband Controller into a single, water-resistant unit. Designed for top-tier motorsport applications, the Nexus R5 simplifies vehicle wiring while providing unprecedented control over every aspect of the drivetrain and chassis.
Engineering Deep-Dive: Integrated Power and Logic

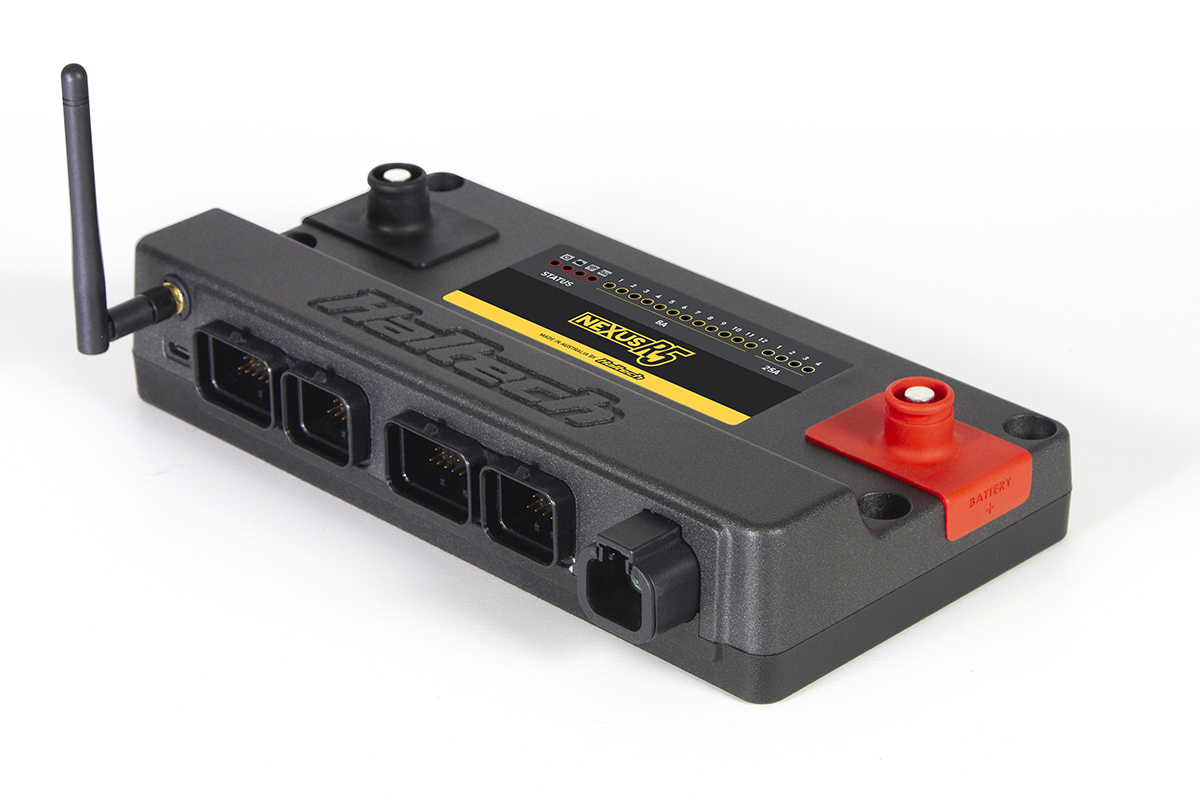

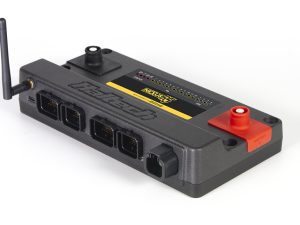

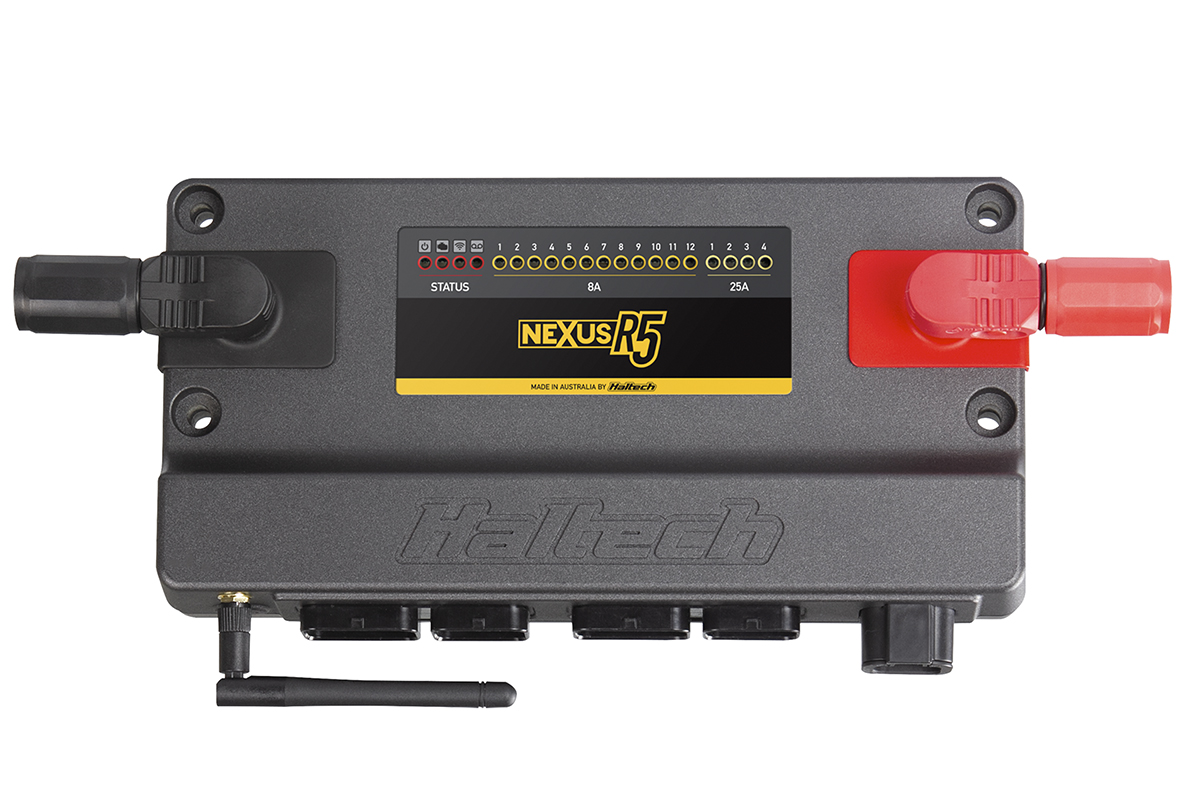

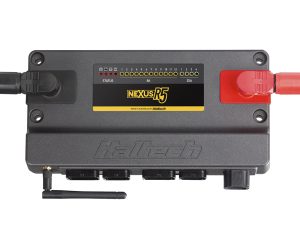

The R5 features 4 x 25A High Current Outputs (HCOs) capable of PWM control, allowing direct drive of fuel pumps (for speed control), thermo-fans (for soft start), and trans-brakes. This eliminates the need for solid-state relays or fuse boxes for these high-load devices. It also includes 12 x 8A High Side Outputs for powering sensors, injectors, and solenoids. The VCU supports 18 injector drivers and 12 ignition outputs, capable of running a V12 sequentially or complex multi-stage injection on drag cars. Dual onboard wideband controllers support both NTK and LSU4.9 sensors.
Operational Benefits: Complete Ecosystem
With built-in Wi-Fi, the R5 allows for wireless laptop tuning and data display on mobile devices. The internal data logger captures 500 channels at high frequency. Advanced features include traction control, torque management, launch control, and nitrous management (up to 6 stages). The unit is housed in an IP67 sealed case, making it suitable for open-cockpit and off-road environments.
Fitment and Application Scope
Suits:
- Engines: 1-12 Cylinder, 2-6 Rotor.
- Motorsport: Drag Racing, Circuit, Drift, Off-Road.
- Transmission Control: Supports various automatics (4L60E, 4L80E, etc.) and sequential gearboxes.
Technical Specifications

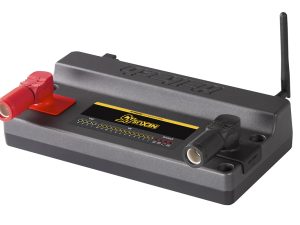

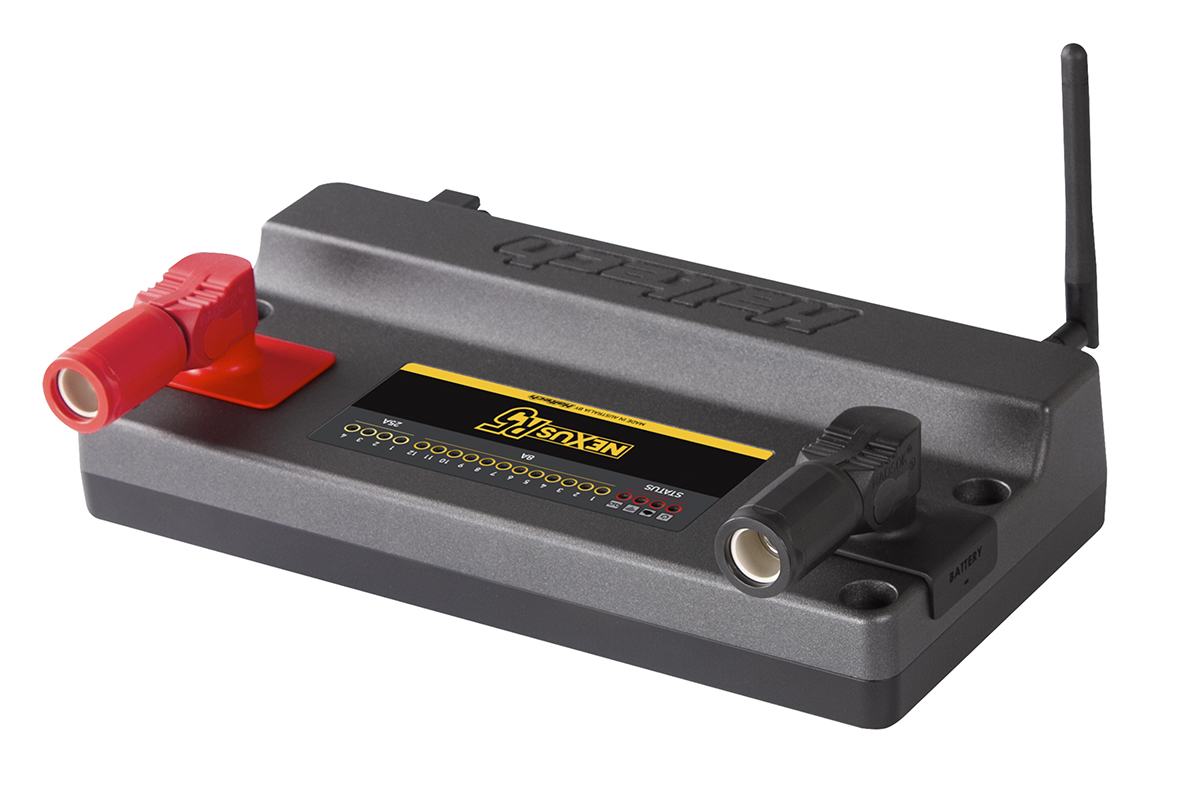

| Parameter | Specification |
|---|---|
| Outputs | 18 Injector / 12 Ignition / 4 HCO (25A) / 12 HSO (8A) |
| Inputs | 23 Analog / 10 Pulsed / 2 Wideband |
| Comms | 3 x CAN Bus / Wi-Fi / USB-C |
| Logging | Internal High Speed |
| Connectors | SurLok Power / AMP Superseal Signal |
Summary & Includes
The HT-195000 is the standalone unit only. Ideal for those building a completely custom system.

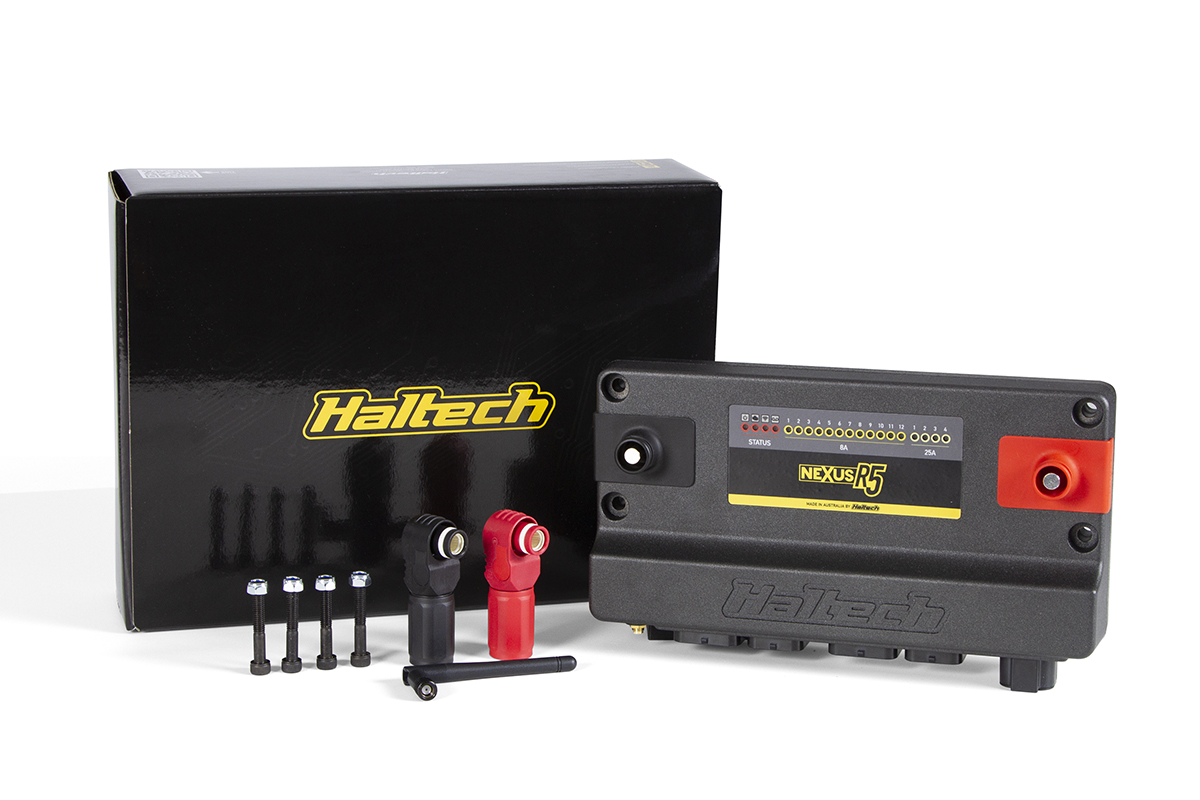

Includes:
- 1 x Nexus R5 VCU
- 1 x SurLok Connector Set (Red/Black)
- 1 x Wi-Fi Antenna
- 1 x USB-C Cable
- 1 x USB-C Dust Cap
- 1 x Mounting Bolts
