Plug and Pins Only – 16 Pin Tyco 16 Pin TYCO

Motorsport Connectivity: 16-Pin Tyco Connector Set

In professional harness integration, the reliability of auxiliary I/O connections is critical for vehicle diagnostics and peripheral control. The Plug and Pins Only – 16 Pin Tyco Connector is a high-density electrical interface designed for professional engine management systems. This specific connector suits Haltech auxiliary I/O expansions, including the Platinum PRO Plug-in, Platinum Sport GM, and TCA 2/4 thermocouple amplifiers. Utilizing genuine Tyco (TE Connectivity) hardware ensures that your standalone ECU integration maintains a secure, low-resistance connection for essential signals like sensor data and output triggers.

Engineering Principles: High-Density Signal Routing

The Tyco 16-pin system is engineered for aerospace and high-end motorsport where pin count must be balanced with housing size. The connector uses a high-retention terminal system that provides 16 individual circuits for data and low-current power. This Analogue-to-Digital interface (regarding the inputs it handles) is vital for secondary sensor groups like oil temperature, EGT, and fuel pressure. The housing is constructed from a chemical-resistant polymer that resists warping in high-heat engine bays, ensuring that the connector remains weatherproof and physically locked during the intense vibrations of a professional drift or drag racing event.

Operational Benefits for Auxiliary I/O Expansion

For builders performing custom harness integration for LS-swap or 2JZ builds, this “Plug and Pins Only” kit provides the flexibility needed for a clean, Milspec finish. It allows the professional installer to build custom I/O looms—such as for the TCA 4 Thermocouple Amplifier—using high-quality Tefzel wire without the need for unreliable splices. In a fuel map calibration context, having a reliable connector for auxiliary sensors means the ECU can trust the data used for secondary safety trims. This kit provides the modularity needed for fast module swaps or harness reconfiguration during a race weekend, maintaining the standards of elite motorsport teams.

Fitment and Integration Requirements

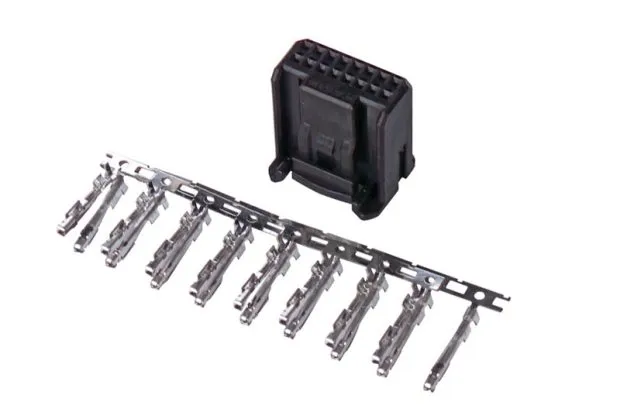

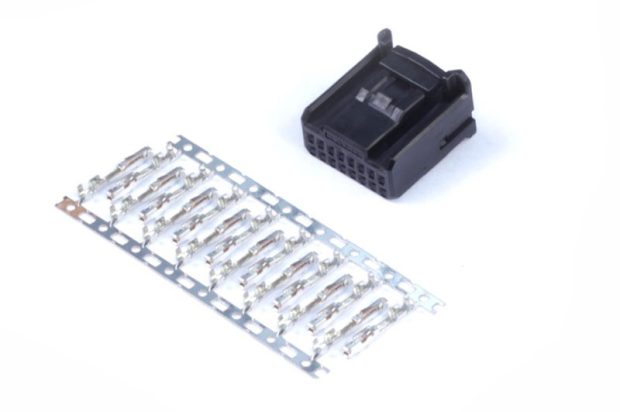

This kit includes a pack of 16 precision pins and the 16-pin Tyco female housing. It is a direct fit for the auxiliary I/O ports on various Haltech Platinum and Elite series products. For a professional result, it is mandatory to use a dedicated Tyco/TE Connectivity crimp tool to ensure a gas-tight mechanical bond. These connectors are fully compatible with Haltech’s ecosystem of expander boxes and controllers, allowing for the modular expansion of your vehicle’s electronic capabilities. Proper installation ensures that your standalone ECU integration remains robust and free from the intermittent connection issues that plague low-quality alternatives.

Technical Specifications Table

Summary & Includes

The 16-Pin Tyco set is the professional prerequisite for auxiliary I/O and TCA module wiring. Includes: 1 x 16-Pin Connector Housing and a Pack of 16 Precision Terminals. Note: Specifically designed to interface with Haltech Platinum and Elite peripheral ports.
