Plug and Pins Only – 24 Pin Tyco

High-Density Integration: 24-Pin Tyco Connector Set

The 24-Pin Tyco Connector is a professional-grade electrical interface designed for high-density harness integration on complex vehicle systems. This “Plug and Pins Only” kit is the designated interface for Haltech’s most powerful expansion modules, including the IO12 Expander Box, the WBC1/WBC2 CAN Wideband Controllers, and the Device Emulator 8. In a professional standalone ECU integration, managing 24 independent circuits through a single modular plug is the only way to achieve a championship-caliber wiring finish. This kit ensures that your auxiliary sensor data and actuator signals are transmitted with zero signal loss, which is vital for detonation protection and fuel control.

Engineering Principles: Multi-Channel Signal Integrity

The Tyco 24-pin system provides 24 individual paths for power, ground, and data signals in a compact housing. This high pin density is critical for modules like the IO12, which must process multiple Analogue Voltage Inputs (AVI) and Digital Pulsed Outputs (DPO). This Analogue-to-Digital interface (via the expander) is highly sensitive to resistance; any looseness in the pins would result in data drift. The connector features high-retention terminals and a robust locking mechanism that prevents “pin walk” during extreme vibration. The housing is constructed from a chemical-resistant, high-temperature polymer that survives the intense thermal environment of an LS-swap or 2JZ racing engine bay.

Operational Benefits for Complex Control Loops

Using a 24-pin Tyco connector allows the builder to consolidate multiple system controls into one serviceable break-point. For builds running sophisticated closed-loop boost control or multi-stage nitrous, the IO12 expander becomes the hub for all related sensors and solenoids. This kit allows the installer to build a custom-length harness using Milspec wire, ensuring that EMI (Electromagnetic Interference) is kept to a minimum through proper shielding and grounding at the connector. In a fuel map calibration scenario, having a pristine wideband signal from a WBC1/WBC2 module is foundational; this connector ensures the ECU receives an accurate Lambda reference for real-time fueling corrections.

Fitment and Component Integration

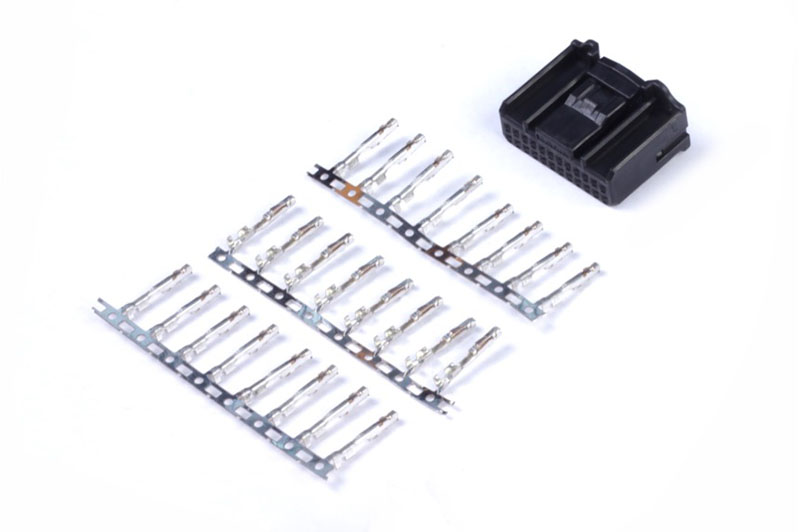

This kit includes a pack of 24 precision pins and the 24-pin Tyco female housing. It is a direct fit for the IO12 Expander, Haltech Wideband Controllers, and Device Emulator. To achieve a professional finish, it is mandatory to use a dedicated Tyco/TE Connectivity crimp tool to ensure a gas-tight bond for all 24 wires. These connectors are fully compatible with Haltech Elite and Nexus terminated harnesses, providing the modularity required for fast module replacement or system reconfiguration during competition. Proper harness integration using these connectors is what differentiates a professional-grade electrical system from a standard build.

Technical Specifications Table

Summary & Includes

The 24-Pin Tyco kit is the professional standard for expander module and wideband controller termination. Includes: 1 x 24-Pin Connector Housing and 24 Precision Terminals. Note: Mandatory for high-density I/O expansion in motorsport harness projects.
