Plugs and Pins Only – Suit LS1 Coil

V8 Reliability: Plugs and Pins for LS1 Ignition Coils

The GM LS1 and LS6 ignition coils are legendary for their durability and high-output performance, making them a staple in LS-swap projects across the globe. However, even the best coil is useless without a secure electrical connection. The Plugs and Pins Only kit for LS1 Coils provides the professional-grade Metri-Pack 150.2 series terminals and housings required to interface with factory or aftermarket LS1 coils. This kit is essential for harness integration in custom builds, ensuring that the ECU’s trigger signals reach the coil without interference or voltage drop, which is critical for detonation protection.

Engineering Principles: Metri-Pack 150.2 Architecture

LS1 coils are “Smart” coils (Integrated Igniter), utilizing a 4-pin interface for Power, Ground, Signal Ground, and Trigger. This Analogue-to-Digital interface (the logic trigger) is sensitive to high-frequency noise. The Metri-Pack 150.2 system included in this kit is specifically designed for high-vibration engine environments, featuring a secondary locking mechanism that ensures the pins remain seated even under the stress of 7000+ RPM. The terminals are precision-stamped from high-conductivity copper alloy to minimize resistance. By using this kit for your standalone ECU integration, you eliminate the “pin fretting” and intermittent connectivity issues that often plague high-mileage factory looms or cheap pigtail adapters.

Operational Benefits for Custom LS-Swap Looms

For builders constructing a custom “flying lead” harness or a tucked engine loom for an LS-swap, this kit allows for a “factory-plus” finish. It enables you to cut your ignition wiring to the exact length needed, reducing clutter and improving the overall aesthetic of the engine bay. In a fuel map calibration context, a reliable ignition connection means the ECU can trust the spark event is happening exactly when commanded. This is foundational for achieving Maximum Brake Torque (MBT) timing. Furthermore, the weatherproof seals included in the kit protect the electrical contacts from oil, fuel, and moisture, preventing the corrosion that leads to high-RPM misfires and diagnostic headaches.

Technical Specs Table

Summary & Includes

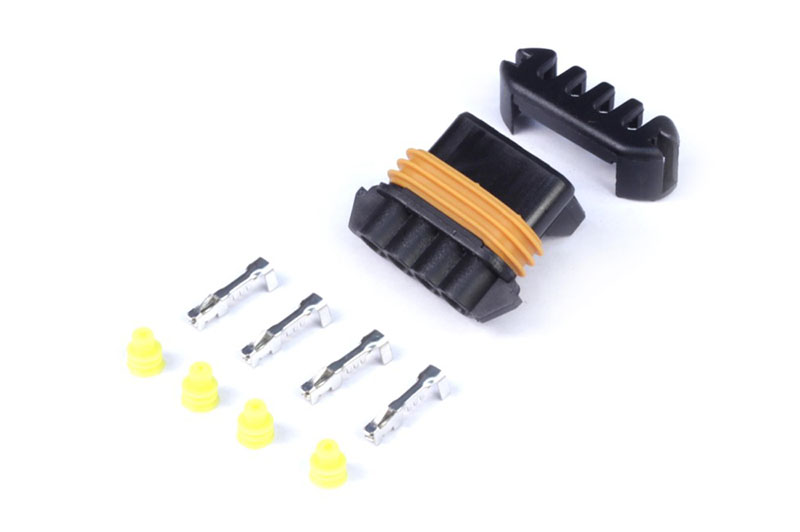

The LS1 Coil Plug and Pin kit is the professional standard for LS-based ignition wiring. Includes: 1 x 4-Pin Connector Housing, Seals, and Terminals. Note: Specifically designed for LS1/LS6 coil-on-plug configurations.
