LS1 Coil with built-in Ignitor

Foundational Firepower: LS1 Coil with Integrated Ignitor

The LS1 Coil with built-in Ignitor is the component that revolutionized the LS-swap movement. Known for its incredible reliability and high-energy discharge, this “Smart” coil integrates the power transistor directly into the coil assembly. This allows for a standalone ECU integration where the ECU provides a simple low-current trigger signal, and the coil handles the heavy-duty current switching. Whether you are building a naturally aspirated LS1 street car or a twin-turbo LS6 drag machine, these coils provide the consistent, powerful spark necessary for finding the Maximum Brake Torque (MBT) timing and maintaining detonation protection.

Engineering Principles: Integrated IGBT Technology

The LS1 coil utilizes an internal Inductive ignition architecture. By housing the igniter (IGBT) inside the coil body, the circuit distance for the primary current is minimized, which reduces electrical noise and improves EMI (Electromagnetic Interference) suppression. This is critical for standalone ECU integration, as it protects the ECU’s sensitive sensor signals from the high-voltage flyback generated during ignition. The coil is engineered for a long spark duration, which is essential for igniting the turbulent air-fuel mixtures found in high-performance engines. This robustness allows tuners to develop aggressive fuel map calibrations with the confidence that the spark will never be the weak link in the chain.

Operational Benefits for Forced Induction

While originally designed for NA applications, the LS1 coil has proven itself capable of supporting massive boost levels when paired with the right dwell settings. In a standalone ECU integration, the tuner can optimize the dwell map to provide the maximum possible spark energy (typically 80mJ+) during high-load scenarios. This is vital for closed-loop boost control applications where the air density in the cylinder would otherwise extinguish a weaker spark. The built-in igniter is thermally protected, ensuring that the coil maintains its performance even in the high-heat environment of a V8 engine bay. This reliability is why the LS1 coil remains a favorite for everything from daily drivers to professional drift cars.

Installation and Harness Integration

The LS1 coil features a standard 4-pin interface and is designed for “Coil-on-Plug” mounting directly on the valve cover. The unit includes the matching plug and pins, allowing for a professional harness integration that meets motorsport standards. Proper wiring is essential: each coil must have a dedicated 14-16 AWG power and ground to handle the peak primary current. These coils are compatible with all modern standalone ECUs, including Haltech Elite and Nexus. For 2JZ or RB26 builders, the LS1 coil is a popular alternative to R35 coils for those who prefer the ruggedness and availability of the GM ignition platform.

Technical Specs Table

Summary & Includes

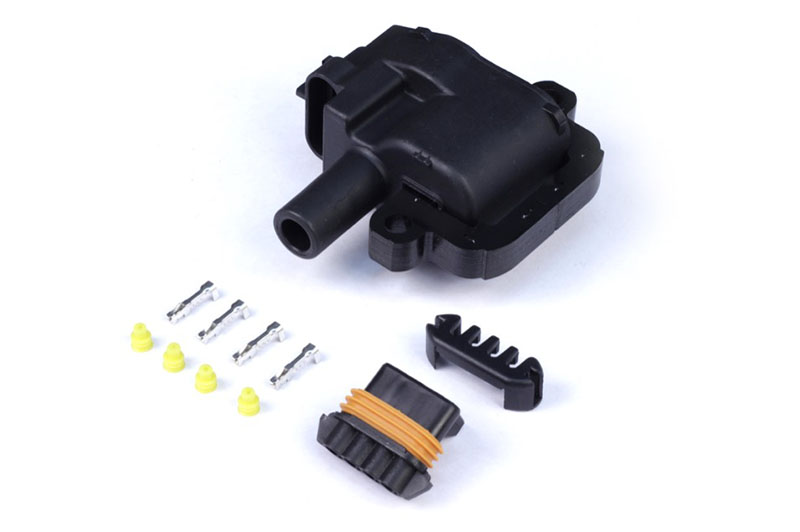

The LS1 Coil with built-in Ignitor is the industry standard for reliable V8 ignition. Includes: 1 x LS1 Smart Coil and matching plug/pins. Note: The definitive choice for LS-swap reliability and high-energy performance.
