6 Channel Ignition Extension Harness – 1200mm / 47.2″ Length: 1200mm / 47.2″

Professional Loom Integration: 6 Channel Ignition Extension Harness

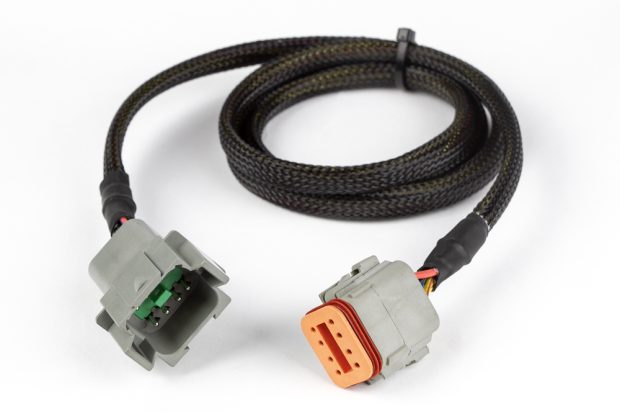

In the world of custom harness integration, cable management and length flexibility are paramount. The 6 Channel Ignition Extension Harness is a 1200mm (47.2″) professional-grade bridge designed to extend the reach of your ignition signals. This harness is an essential component for projects where the ECU or ignition coils have been relocated, or when utilizing a standalone ECU integration in a chassis with a long engine bay. Built to meet the demands of high-performance environments, this extension ensures that the ignition trigger signals travel from the ECU to the coils without signal degradation or interference.

Engineering Standards and Signal Integrity

Ignition trigger signals are low-current and can be sensitive to EMI (Electromagnetic Interference). The 6 Channel Extension Harness is constructed using high-quality automotive-grade wire that is twisted and loomed to provide maximum noise rejection. The 1200mm length provides the necessary slack for routing wires away from high-heat areas like exhaust manifolds and turbochargers. Each of the six channels is clearly defined, supporting up to a 6-cylinder engine in a sequential configuration. By using this extension instead of splicing wires, you maintain a continuous, low-resistance path for the ECU’s trigger pulses, which is critical for maintaining absolute timing accuracy during fuel map calibration.

Operational Benefits for Custom Builds

The primary benefit of this extension harness is the ability to achieve a clean, professional finish on any standalone ECU integration. For builders using the 2JZ, RB26, or S54 platforms, relocating the coils or the ECU is common for weight distribution or aesthetic reasons. This harness allows for that relocation without the risk associated with hand-soldered extensions, which can become brittle and fail under vibration. The extension is fully terminated with high-quality connectors, ensuring that the ignition system remains a “plug-and-play” modular component of the vehicle’s electrical system. This modularity also makes diagnostics much simpler if a coil issue is suspected.

Fitment and Compatibility Notes

This harness is designed to suit Selected Haltech Terminated Engine Harnesses, but it can be adapted for custom use. It is important to note that the user should always check pinout compatibility when using this harness to adapt to looms from other manufacturers. The extension handles 6 channels of signal, making it ideal for inline-6 or V6 engines. For V8 applications, two extensions may be required depending on the layout. The kit includes the 1200mm terminated harness, ready for immediate installation into a Haltech-based system. It is a vital tool for ensuring that your harness integration is reliable and track-ready.

Technical Specifications

Summary & Includes

The 6 Channel Ignition Extension Harness is the definitive solution for extended loom routing. Includes: 1 x 1200mm Extension Harness. Note: Verify pinout compatibility if using with non-Haltech engine looms.
