Plugs and Pins Only – Suit High Output IGN-1A Inductive Coil with built-in Ignitor

Intelligent Ignition Interface: IGN-1A Coil Connector Set

The IGN-1A Inductive Coil is arguably the most powerful smart coil in the performance industry, favored for Mazda 13B rotaries and high-boost 2JZ configurations. However, the coil’s performance is entirely dependent on its harness integration. The Plugs and Pins Only kit for IGN-1A is designed for the professional loom builder who requires a custom-length sequential ignition harness. Because the IGN-1A is an Intelligent Ignition unit with a built-in IGBT (Insulated-Gate Bipolar Transistor), the connector must manage five distinct signals: high-current power, high-current ground, secondary ground, trigger signal, and often a signal ground. This kit ensures that each of these critical pathways is terminated with OEM-grade reliability.

Engineering Deep-Dive: Managing High-Energy IGBT Triggers

The IGN-1A is a “Smart” coil, meaning it does not require an external igniter module. Instead, it receives a low-current logic signal (typically 0-5V) from a standalone ECU integration and performs the high-current switching internally. This design places a significant burden on the connector to maintain electrical isolation between the high-voltage flyback and the sensitive logic signals. This Analogue-to-Digital interface (the trigger pulse) is prone to EMI (Electromagnetic Interference) if the connector is not properly sealed and pinned. The terminals in this kit are engineered to provide a gas-tight connection to minimize resistance, ensuring the ECU’s fuel map calibration and timing advance are executed with microsecond precision.

Operational Benefits for Sequential Ignition

In high-horsepower LS-swap or turbo K-swap applications, moving to sequential ignition is the best way to achieve detonation protection. By using this kit to wire IGN-1A coils, the tuner can set individual cylinder dwell times. The IGN-1A is capable of producing over 150mJ of spark energy, but only if the electrical path is robust. Using these specific plugs and pins prevents the “terminal walk” or pin fretting that occurs with low-quality connectors in high-vibration racing environments. For the professional tuner, this means the spark energy remains consistent from the dyno cell to the finish line, allowing for leaner, more efficient fuel map calibrations without the risk of spark blow-out.

Technical Specs Table

Summary & Includes

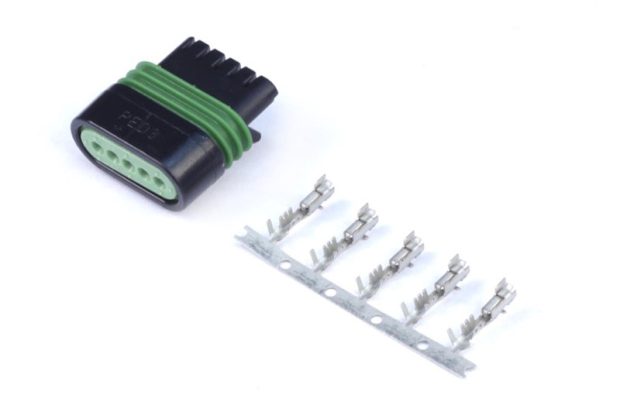

The IGN-1A Plug and Pins set is the prerequisite for building a world-class ignition harness. Includes: 1 x 5-pin Connector Housing, Seals, and 5 Precision Terminals. Note: Specifically designed for IGBT-equipped coils with integrated ignitors.
