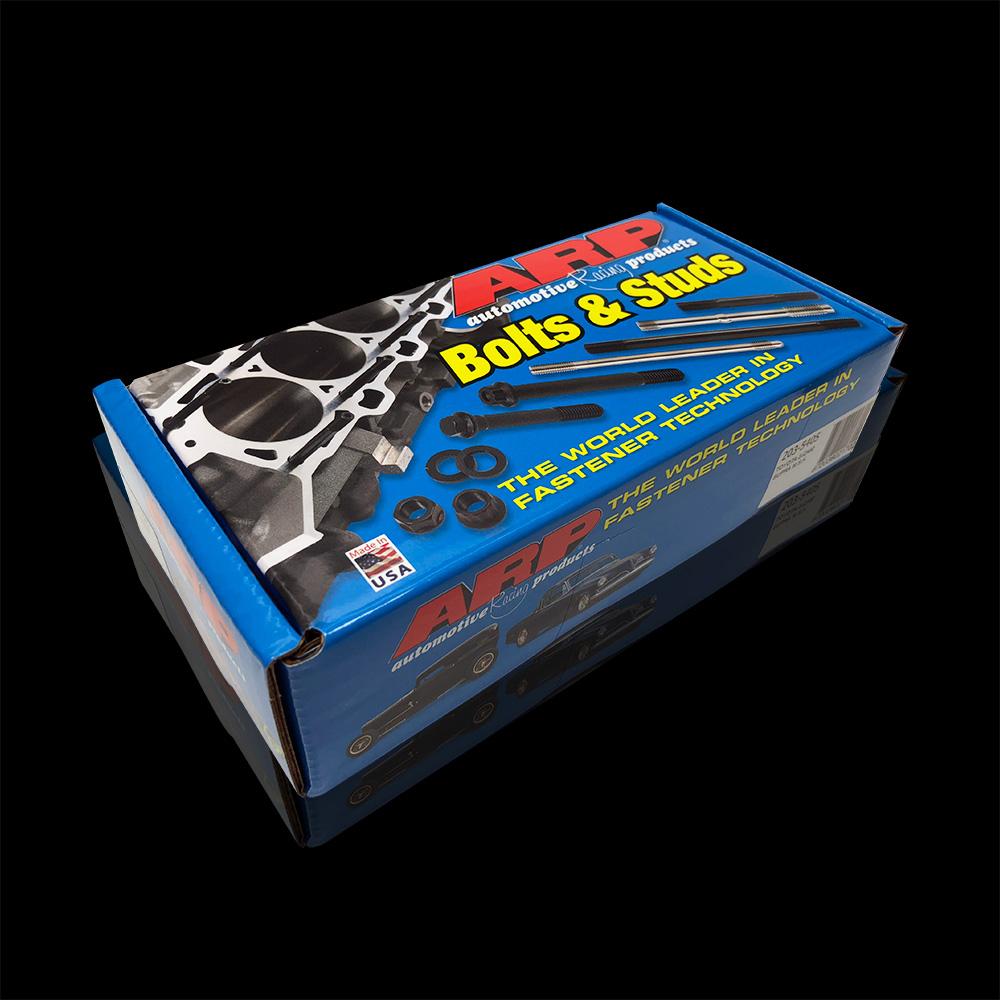

AR8650 – Chevrolet LS Series (03-earlier) ARP Head Studs

For the serious builder of Chevrolet’s seminal LS Series engines (2003 and earlier), the cylinder head attachment point represents the most critical sealing interface in the entire powerplant. Factory torque-to-yield head bolts, while cost-effective for mass production, are a calculated compromise—one that becomes the primary point of failure under the increased cylinder pressures of forced induction, nitrous oxide, or high-compression naturally aspirated builds. The ARP8650 Head Stud Kit is not merely an upgrade; it is a fundamental re-engineering of this junction, transforming it from a potential liability into a bedrock of reliability. Engineered by ARP, the undisputed leader in fastener technology, this kit provides the absolute clamp force consistency and elastic resilience required to contain the explosive forces of a high-output LS, ensuring the head gasket remains immutably sealed across the entire RPM and thermal range. This is the definitive solution for builders who equate performance with permanence.

The Engineering Principle: Why Studs Supersede Bolts

The superiority of a stud-and-nut assembly over a conventional bolt is rooted in fundamental mechanical engineering. A bolt must perform two conflicting duties simultaneously: it must align the components as it is turned into the block’s threads, and it must provide the final clamp load. This alignment process creates lateral shear forces on the bolt shank and the block threads, inducing friction and variability in the final achieved torque. A stud, by contrast, is installed finger-tight to a precise seated position. This allows the cylinder head to be lowered onto the perfectly perpendicular, stationary studs with zero binding. The nut is then torqued in a pure, axial fashion, applying force directly along the stud’s centerline. This method eliminates parasitic friction from thread drag, yielding a dramatically more accurate and consistent clamp load across all cylinders—the single most important factor in achieving a perfect, permanent head gasket seal. For the LS engine, with its relatively shallow thread engagement in the aluminum block, this precision is non-negotiable for longevity.

Precision Installation & Clamp Load Consistency

The ARP8650 kit’s performance is fully realized only with methodical, precision installation. Each 8740 chromoly steel stud is coated with ARP’s proprietary lubricant, a critical component engineered to provide a consistent, near-frictionless coefficient of friction (typically 0.12). This allows the torque wrench reading to translate directly into precise clamp load, unlike engine oil or generic anti-seize which introduce significant variance. Installation mandates a clean, chased, and oil-free thread in the block. Studs should be seated using a precise, non-thread-damaging tool—never a jam nut—until they contact the thread’s base. The recommended torque sequence and value (typically 75 ft-lbs in three progressive steps for a standard LS) provided by ARP are the result of exhaustive engineering analysis. Adherence to this protocol ensures the cylinder head is pulled down evenly, without distorting the sealing deck, and that the elastic limit of the stud material is optimally utilized to maintain load through thermal cycling.

Key Performance & Reliability Benefits

• Unmatched Clamp Force Stability: 8740 chromoly steel provides a higher tensile strength and, more importantly, a superior elastic modulus compared to OEM bolts, maintaining load through extreme heat cycles and preventing head gasket “creep”.
• Elimination of Thread Galling in Aluminum: The studs remain static in the block threads; only the nuts turn. This prevents the destructive wear and aluminum pick-up that can occur when repeatedly torquing bolts in and out of a soft aluminum LS block.
• Facilitates Precision Head Alignment & Serviceability: The stationary studs act as precise alignment dowels, making head installation and removal far simpler, especially in cramped engine bays. Heads can be lifted straight off without disturbing the block’s threads.
• Optimized for High-Pressure Environments: Designed specifically to resist the tensile loads generated by high-boost turbocharger, supercharger, or nitrous applications where cylinder pressures can exceed 2,000 psi.
• Reusable Construction: Unlike one-time-use TTY bolts, ARP studs can be torqued and re-torqued indefinitely without loss of integrity, making engine service and gasket changes straightforward and cost-effective.

Detailed Vehicle & Engine Fitment

The ARP8650 is engineered specifically for the foundational generations of the GM LS/LS-based Vortec engine family, encompassing both passenger car and truck applications. Correct identification of the engine block casting number is imperative before installation. This kit is designed for the standard-head-bolt-spacing pattern found on the vast majority of early LS engines.

Primary Application: Chevrolet/GMC LS1, LS6, LQ4, LQ9, LM7, LR4, LS2 (early), and related Vortec truck engines from model years 1997 through 2003 (and some early 2004 vehicles). This includes applications in the Chevrolet Corvette (C5), Camaro (4th Gen F-Body), Pontiac Firebird/Trans Am, GMC Sierra, Chevrolet Silverado, and Chevrolet Tahoe/Suburban.

Critical Compatibility Note: This kit is for engines manufactured in 2003 and earlier. Later LS engines (e.g., LS2 in 2005+, LS3, LS7, etc.) may utilize a different head bolt pattern, thread pitch, or length. Always verify your engine’s specifications against the ARP catalog. This stud kit is not compatible with “LSX” aftermarket blocks or Gen IV/V engines with active fuel management (AFM/DOD) without verification of deck height and thread specification.

Technical Specifications & Kit Contents

In the ecosystem of LS performance, where power gains are often measured in transient dyno pulls, the ARP8650 Head Stud Kit is an investment in enduring strength. It addresses the root cause of a common failure mode not by adding complexity, but by applying superior materials science and mechanical design to a fundamental assembly. For an in-depth analysis of head gasket failure modes in high-performance LS engines and the engineering behind their prevention, consult the technical resource at EngineLabs. When building an LS engine destined for serious duty, specifying the ARP8650 is the unequivocal choice for builders who prioritize an unbreakable foundation over temporary fixes.
