BC0229U – Nissan VQ35HR Stroker Kit – 86.4mm Stroke/ProH2K Rods – Unbalanced

The Definitive Upgrade: Engineering a Dominant VQ35HR with the BC0229U Stroker Kit

For the performance engineer and discerning builder targeting absolute dominance from the Nissan VQ35HR platform, incremental modifications are insufficient. The pursuit of monumental torque, relentless power delivery, and ultimate structural integrity demands a fundamental re-engineering of the engine’s internal geometry. The Brian Crower BC0229U Stroker Kit represents this paradigm shift. This is not merely a parts collection; it is a cohesive, precision-machined system engineered to transform the acclaimed 3.5-liter HR engine into a displacement-enhanced powerhouse, meticulously designed for forced induction or high-RPM atmospheric aggression. By increasing the stroke to a substantial 86.4mm and pairing it with the legendary Pro Series H2K Connecting Rods, this unbalanced kit provides the foundational core for builds exceeding 1000+ horsepower, establishing a new benchmark for VQ35HR performance potential.

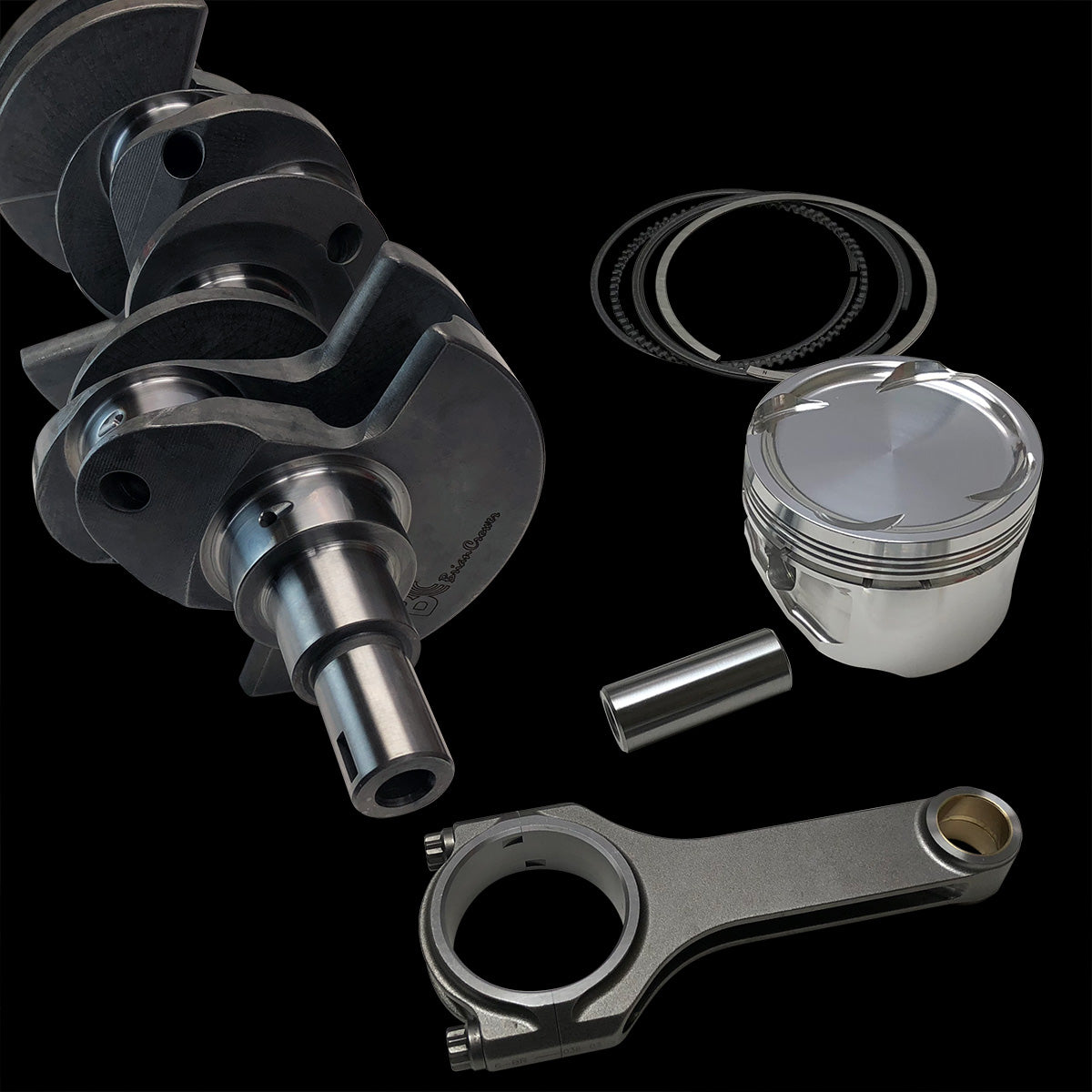

Core Architecture: The 86.4mm Stroke & ProH2K Rod Synergy

The transformative power of the BC0229U kit originates from its calculated revision of the engine’s reciprocating assembly. The factory VQ35HR utilizes a 81.4mm stroke. The Brian Crower 4340 forged steel crankshaft increases this dimension to 86.4mm, a significant 5mm gain. This longer stroke directly increases engine displacement and, most critically, leverage on the crankshaft. The result is a profound increase in low-end and mid-range torque—the kind of tractable, immediate thrust that defines streetable performance and provides a monumental advantage in forced induction applications where turbo lag is a primary concern.

This increased stroke and the accompanying forces mandate an indestructible link between piston and crank. The included Pro Series H2K Connecting Rods are the industry’s gold standard for a reason. Machined from 4340 chromoly steel using a proprietary H-beam design, they are shot-peened, Magnaflux inspected, and outfitted with ARP 2000 cap screws. The “H2K” designation signifies their proven capability to withstand power levels in excess of 2000 horsepower in other platforms, making them astronomically overbuilt for all but the most extreme VQ applications. This synergy—increased stroke acting upon an unyielding connecting rod—creates a reciprocating assembly of unparalleled resilience and performance character.

Technical Specifications & Component Breakdown

Note: This is an “unbalanced” kit. The crankshaft is supplied without final balancing, providing the expert engine builder or machinist the critical flexibility to precisely balance the entire rotating assembly (crank, rods, pistons, rings, pins) as a unit. This process is non-negotiable for achieving smooth operation at high RPM and is the professional standard for ultimate performance and longevity.

Performance Advantages & Application Rationale

• Torque Multiplication: The 86.4mm stroke fundamentally increases engine displacement and mechanical leverage, generating substantially more torque across the entire powerband, particularly in the low-to-mid range where it is most usable.
• Foundation for Forced Induction: The increased displacement provides a larger “air pump,” allowing turbochargers or superchargers to spool faster and produce more power at lower boost levels, reducing stress on the entire system.
• Unmatched Durability: The 4340 forged crankshaft and ProH2K rods create a reciprocating assembly with a safety margin far exceeding the power limits of the factory block, cylinder heads, and even aftermarket blocks in some cases.
• Builder-Centric Flexibility: The unbalanced configuration and exclusion of pistons allow for complete customization. Builders can select pistons for optimal compression, ring pack, and valve reliefs tailored to their specific fuel, boost, and RPM goals.
• High-RPM Stability: When properly balanced by a qualified machinist, this forged assembly is capable of sustaining RPM levels far beyond the factory redline with stability that stock components cannot approach.

Vehicle Fitment & Critical Installation Notes

The BC0229U Stroker Kit is engineered specifically for the Nissan VQ35HR engine platform. This dual-intake, high-revving engine variant is distinct from the earlier VQ35DE and must be correctly identified. Primary applications include:

• Nissan 350Z (Z33) – 2007-2008 Model Years (HR Engine)
• Nissan 370Z (Z34) Early Models – 2009-2010 Model Years (Utilizing VQ35HR in some configurations)
• Infiniti G35 (V36) – 2007-2008 Model Years (Sedan & Coupe, HR Engine)
• Infiniti G37 (V36) – 2009-2010 Model Years (Early models with VQ35HR)

Installation Imperatives: Installation of this kit is a professional engine-building procedure. It requires complete engine disassembly, professional machining (boring/honing, decking, line honing mains), and most critically, precision balancing of the entire rotating assembly. The builder must source appropriate pistons, rings, and wrist pins. Clearances for rod and main journals, as well as piston-to-wall and ring end gaps, must be set according to the intended use (e.g., forced induction tolerances are wider than naturally aspirated). For a deeper technical understanding of the VQ platform’s evolution and design considerations that inform such a build, refer to this authoritative engineering analysis on the VQ engine family’s development.

The Strategic Choice: Unbalanced for Ultimate Precision

The “unbalanced” designation of the BC0229U is a feature, not an omission. It is the choice for the builder who demands perfection. Factory and many “pre-balanced” kits assume generic component weights. In a high-performance build, the specific weights of the chosen pistons, pins, rings, and even the rod bearings vary. By allowing a master machinist to spin-balance the entire assembly as a unit—drilling material from the crankshaft counterweights as needed—harmonic vibrations are eliminated. This process ensures buttery-smooth operation, reduces stress on main bearings, and is absolutely essential for reliability at sustained high RPM and elevated power output. It is the final, critical step in transforming a collection of world-class components into a harmonious, unstoppable rotating force.

In conclusion, the Brian Crower BC0229U Stroker Kit is the definitive core upgrade for the serious VQ35HR builder. It trades simplicity for supremacy, offering the engineered components and necessary flexibility to construct an engine with transformative torque characteristics and legendary durability. By selecting this kit, you are not just building an engine; you are architecting a legend.
