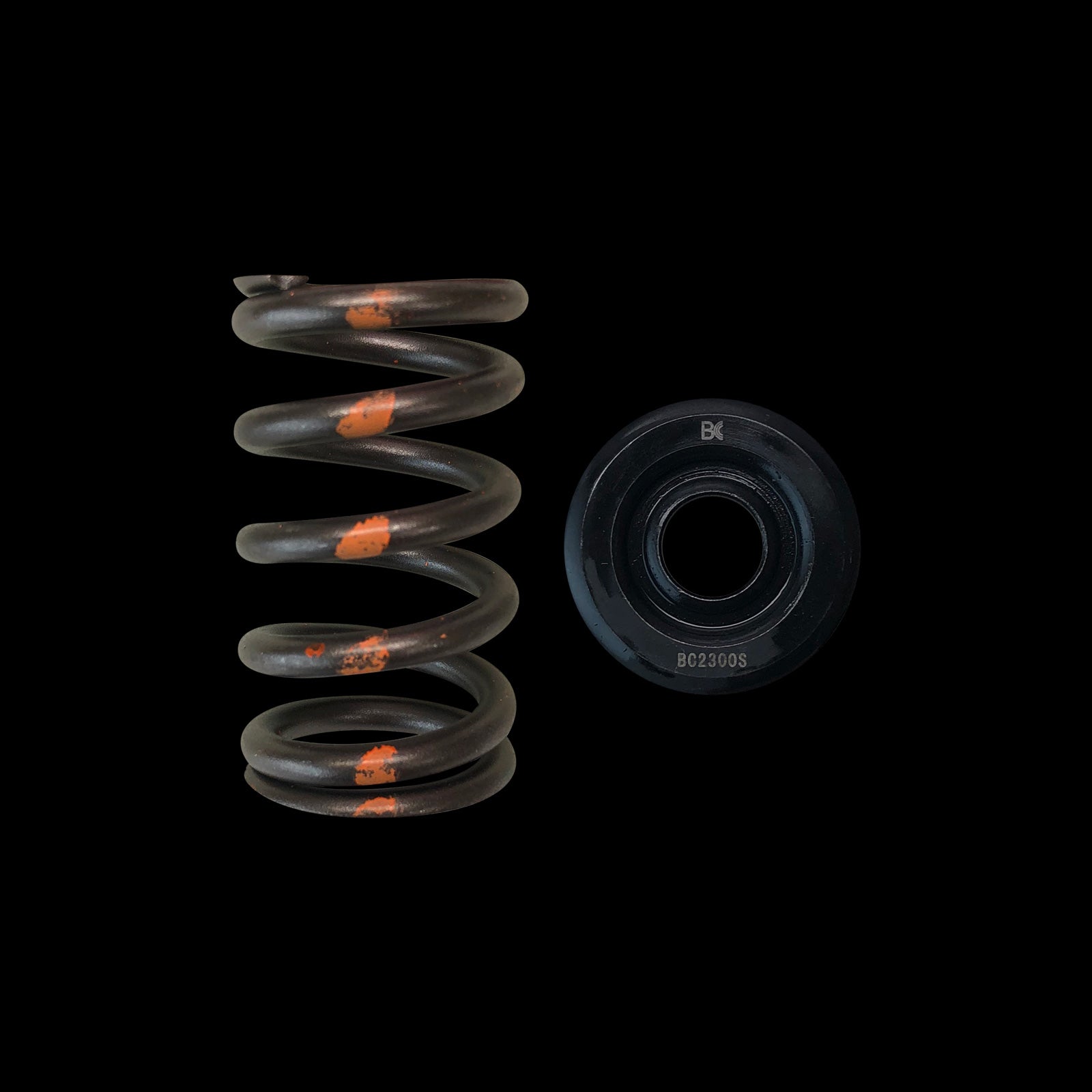

BC0400S – Mazda MZR Single Spring/Steel Retainer Kit

In the realm of forced induction and high-RPM naturally aspirated builds, the valvetrain is the final frontier of engine integrity. Stock valve springs, designed for OEM reliability and noise compliance, become the weakest link when cylinder pressures soar and redlines climb. For Mazda MZR and Ford Duratec 2.3L/2.5L engines—powerplants famed for their tuning potential in platforms like the Mazdaspeed3, MX-5 Miata, and Focus ST—this limitation is a well-known bottleneck. The Brian Crower BC0400S Single Spring and Steel Retainer Kit is engineered as a direct, high-performance solution to this fundamental constraint. This kit replaces the factory dual-spring setup with a purpose-built, single high-load spring and machined steel retainers, providing the necessary valve control and margin of safety for aggressive camshaft profiles, turbocharged applications, and sustained high-RPM operation. It is not merely an upgrade; it is essential preventative maintenance for any engine pushing beyond its factory performance envelope.

Engineering Philosophy: The Single Spring Advantage

The OEM MZR/Duratec valvetrain employs a dual-spring (inner and outer) configuration, a common design that helps mitigate harmonics and provide fail-safe operation in mass-production vehicles. However, for performance applications, this design introduces drawbacks: increased mass, potential for heat buildup between coils, and a limited total lift capacity before coil bind. The Brian Crower BC0400S kit adopts a single spring design crafted from premium chrome-silicon alloy wire. This material offers superior fatigue resistance and heat tolerance compared to standard spring steel. The single, precisely wound spring provides a significantly higher seat pressure and open pressure profile within the same installed height, ensuring the valve follows the cam lobe profile exactly at elevated RPMs and slams shut against intense cylinder pressure. This eliminates valve float—a condition where the spring cannot keep the lifter in contact with the cam lobe, leading to lost power, valve timing errors, and catastrophic valve-to-piston contact.

Performance Benefits & Application Scope

Installing the BC0400S kit transforms the high-end stability of your MZR/Duratec engine. The benefits are measurable and critical for engine survival under stress.

• Eliminates High-RPM Valve Float: The increased spring pressures maintain positive valvetrain control, allowing you to safely extend the usable RPM range and capitalize on aggressive cam profiles.
• Enables Aggressive Camshaft Upgrades: Provides the necessary clearance and control for high-lift, long-duration performance camshafts, unlocking greater volumetric efficiency.
• Prevents Valve Bounce Under Boost: In forced induction applications, high cylinder pressure during combustion can force the valve open against spring pressure. The BC0400S’s high seat pressure keeps the valve sealed, protecting against power loss and combustion gas leakage.
• Reduces Valvetrain Mass: Replacing the factory dual springs and retainers with a single spring and lightweight—yet stronger—steel retainers reduces reciprocating mass, decreasing the inertial load on the cam lobes and allowing for more precise valve actuation.
• Enhanced Durability & Fatigue Resistance: The chrome-silicon construction offers a longer service life under high-stress conditions compared to OEM springs, making it a reliable foundation for a built engine.

For a deeper technical dive into the physics of valve spring dynamics and coil bind, refer to this authoritative resource on valve spring fundamentals from EngineLabs.

Precision-Matched Components: The Steel Retainer

A performance spring is only as good as its interface. The BC0400S kit includes meticulously machined heat-treated steel retainers. These replace the factory powder-metal or aluminum retainers, which can deform or fracture under the increased load of performance springs. The steel retainers feature a precise lock groove geometry for a positive grip on the valve locks (keepers), distributing the immense clamping force evenly. Their reduced weight profile, compared to the bulkier OEM components, complements the spring’s performance by further minimizing reciprocating mass. This synergy between spring and retainer is critical for achieving stable valvetrain harmonics at engine speeds exceeding 7,500 RPM.

Vehicle Fitment & Compatibility

The Brian Crower BC0400S kit is engineered for a specific family of engines. Correct fitment is crucial for proper installed height and spring pressure.

Primary Engine Applications:

• Mazda MZR 2.0L (LF-VD)
• Mazda MZR 2.3L (L3-VE)
• Mazda MZR 2.5L (L5-VE)
• Ford Duratec 2.3L (MZR-based)
• Ford Duratec 2.5L (MZR-based)

Common Vehicle Platforms: Mazdaspeed3 (2007-2013), Mazda MX-5 Miata (NC 2006-2015), Mazda 3 (with 2.3L/2.5L), Mazda 6 (with 2.3L/2.5L), Ford Focus ST (2013-2018), Ford Ranger (2.3L Duratec).

Note: This is a single spring kit. It is designed to replace the factory dual-spring setup and requires the use of the included steel retainers and your factory valve locks. Installation requires a valve spring compressor and precise measurement of installed height; shimming may be necessary to achieve the optimal specification for your specific camshaft profile.

Technical Specifications

For the serious builder, the Brian Crower BC0400S kit is a foundational component. It provides the robust, repeatable valve control required to harness the full potential of turbo upgrades, high-lift cams, and track-day RPMs. It is a calculated investment in mechanical certainty, ensuring your engine’s breath is always controlled, precise, and powerful.
