BC0458-UPG – Chevrolet LS Series Wet Sump Stroker Kit – 4.000″ Stroke/ProH625+ Rods, CP Custom MTO Pistons

Engineering Maximum Displacement: The BC0458-UPG LS Stroker Kit

For the engine builder who views cubic inches as the ultimate currency of performance, the BC0458-UPG Stroker Kit from Brian Crower represents a definitive statement. This is not a generic assortment of parts; it is a precision-engineered system designed to transform your Chevrolet LS-series block into a high-displacement, high-output foundation capable of enduring extreme power levels. Centered on a massive 4.000-inch stroke crankshaft and mated to premium ProH625+ connecting rods and custom-forged CP-Custom MTO pistons, this wet-sump kit is the calculated choice for serious street, strip, or boosted applications where absolute durability and optimal power production are non-negotiable. We are dissecting the components and engineering principles that make this kit a benchmark in LS performance.

Core Component Analysis: The Foundation of Power

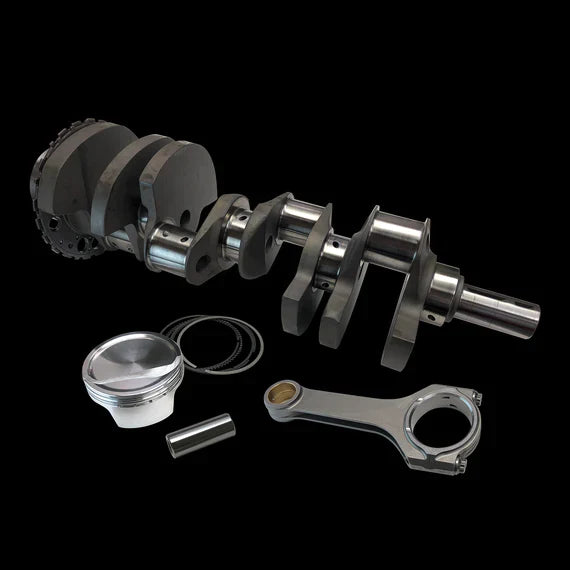

Every successful engine build begins with components that do not compromise. The BC0458-UPG kit is defined by its triumvirate of a forged crank, ultra-duty rods, and purpose-built pistons.

The 4.000″ Stroke Forged Crankshaft: Leveraging Torque

The heart of any stroker assembly, the provided 4340 chromoly forged steel crankshaft is the key to unlocking a significant displacement increase—typically resulting in a 427-440 cubic inch engine depending on your base bore. The 4.000-inch stroke increases lever arm length, which directly translates to higher torque production at a given cylinder pressure. This forging is stress-relieved, heat-treated, and precision-machined to exacting tolerances. Critical areas like the rod and main journals receive a super-finish polish to minimize friction and optimize oil film retention, while the counterweights are strategically sized and balanced to work in harmony with the specific bobweight of the accompanying rods and pistons.

ProH625+ Connecting Rods: The Ultimate Link

Connecting the increased stroke motion to the piston is a task that demands an unbreakable link. Brian Crower’s ProH625+ rods are engineered for this singular purpose. Manufactured from a proprietary 200,000 PSI tensile strength 4340 steel alloy, these are H-beam design forgings that prioritize absolute strength and fatigue resistance. The “Pro” designation signifies features like ARP Pro-Series 2000 cap screws, which offer a substantial increase in clamp load over standard fasteners, virtually eliminating cap walk under extreme combustion pressures. The large beam profile and generous ribbing provide immense resistance to buckling and stretching, making them the correct choice for high-RPM, high-boost, or nitrous applications where rod integrity is paramount.

CP-Custom MTO Pistons: The Custom-Tuned Interface

A stroker kit is only as good as its piston configuration. This kit utilizes CP-Custom MTO (Mold Tooled Forging) pistons, which are not shelf-stock items. They are custom-ordered to match the exact deck height, rod length, and stroke of this specific assembly, ensuring optimal quench and compression height. The 2618 aluminum forging offers superior ductility and thermal shock resistance compared to 4032 alloys, making it ideal for forced induction or nitrous. CP’s proprietary CNC-machined profiles include features like valve reliefs cut for aggressive camshafts, a barrel-shaped skirt design for reduced friction, and advanced ring land geometry designed to stabilize the top ring under boost. The final compression ratio is determined by your cylinder head chamber volume, allowing you to tailor the engine’s personality.

• Maximized Displacement & Torque: The 4.000″ stroke fundamentally increases engine size, generating substantially more low- and mid-range torque, the bedrock of explosive acceleration.
• Extreme-Duty Rotating Assembly: A fully forged 4340 steel crank and ProH625+ rods create a rotating mass capable of withstanding the stresses of 1000+ horsepower applications.
• Application-Optimized Pistons: Custom CP pistons ensure perfect deck clearance, correct compression, and are built from 2618 alloy for resilience in high-heat, high-power scenarios.
• Pre-Balanced Foundation: The components are manufactured to work together, simplifying the balancing process and ensuring smooth operation at elevated RPM.
• Wet-Sump Compatibility: Engineered for the vast majority of LS applications using a traditional oil pan, simplifying installation in stock or aftermarket chassis.

Vehicle Fitment & Application Notes

Primary Fitment: This BC0458-UPG kit is designed for GM LS-series engines utilizing a traditional wet-sump oiling system. This includes popular variants such as the LS1, LS6, LS2, LS3, L92, LQ4, LQ9, and other Gen III/IV truck engines, provided they are in a standard configuration. It is critical to verify block casting and crankshaft flange compatibility (e.g., 6-bolt vs. 8-bolt).

Key Installation Considerations: Stroking an engine requires meticulous attention to detail. Block clearancing is almost always required; the increased stroke radius means the connecting rods may contact the block cylinder walls or oil pan rail in certain positions. This is a normal machining operation. You must verify piston-to-valve clearance with your specific cylinder heads and camshaft. Deck height and resulting compression ratio must be calculated prior to assembly. This kit is intended for experienced builders or professional engine shops. For a deeper dive into LS platform fundamentals that inform these decisions, review this resource on building a better LS engine.

Technical Specifications

The Verdict: A System Engineered for Dominance

The Brian Crower BC0458-UPG Stroker Kit is a purpose-built assembly for the performance enthusiast who recognizes that foundational strength is the precursor to massive power. By integrating a rugged 4.000-inch stroke crankshaft with the nearly indestructible ProH625+ connecting rods and custom-specified CP pistons, this kit eliminates the weak links inherent in a high-stress, high-displacement environment. It provides the mechanical blueprint for an engine that doesn’t just make impressive peak numbers, but delivers a devastatingly broad torque curve and the relentless durability required for competitive use. This is the rotating assembly you select when the goal is not merely to build an engine, but to forge an undefeatable powerhouse.
