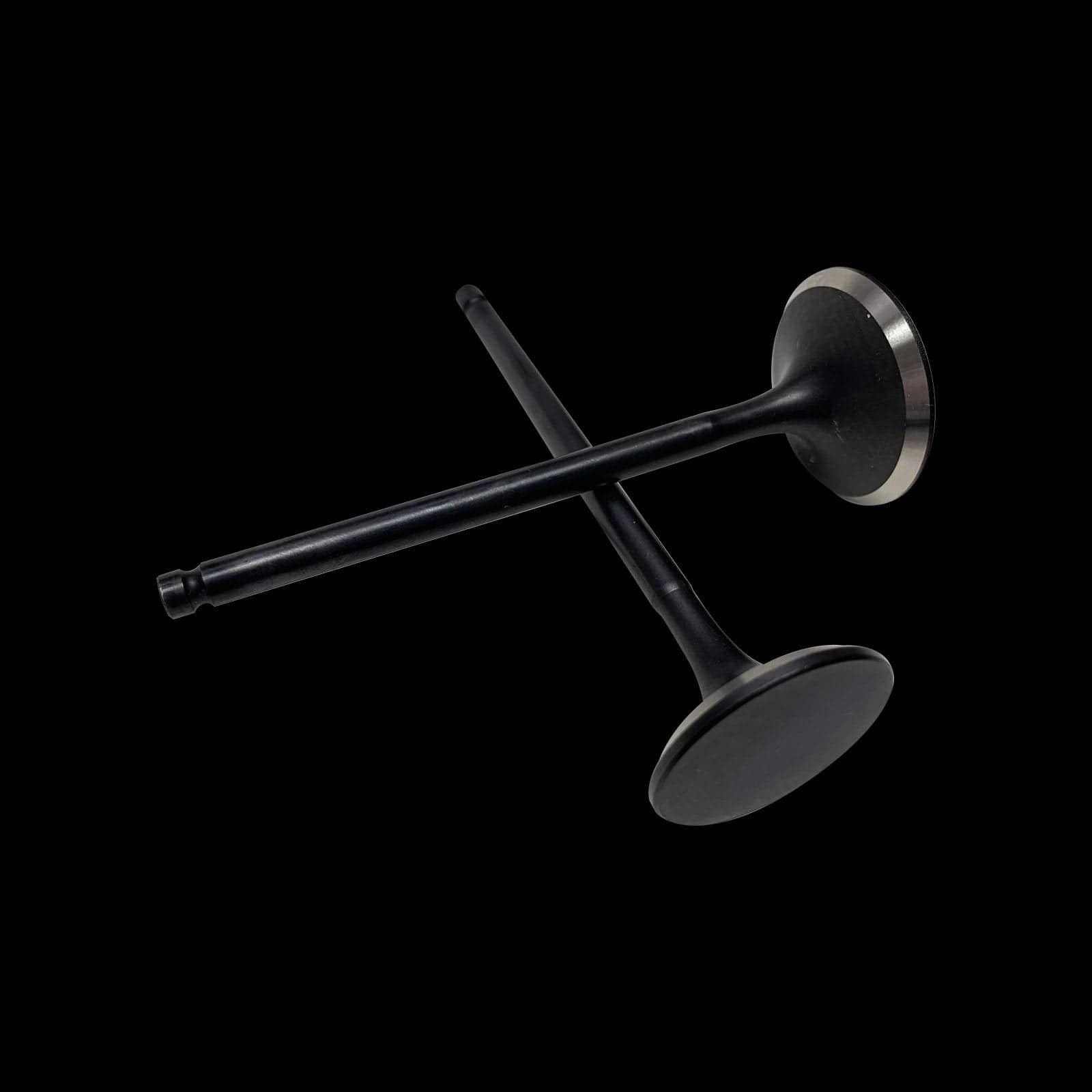

BC3034S-8 – Honda H22/H22A Intake Valves (36mm / +1mm) – set/8

For serious Honda H22 and H22A engine builders, valvetrain integrity and airflow capacity are non-negotiable foundations of power. The Brian Crower BC3034S-8 intake valve set is a precision-engineered solution designed to meet these demands head-on. This set of eight valves features a 36mm head diameter, representing a critical +1mm oversize versus stock components, directly addressing the airflow limitations of the factory valvetrain. Constructed from high-grade stainless steel and finished with a proprietary black nitride coating, these valves are built for the relentless environments of high-RPM, forced induction, and all-out racing applications. This technical description will dissect the engineering, benefits, and exact specifications of the BC3034S-8, providing the master mechanic with the data necessary for informed integration into any performance build.

Precision Engineering for the Honda H-Series Platform

The Honda H22A engine, particularly the Type-S and Euro-R variants, is revered for its high-revving nature and stock performance. However, the factory intake valves become a bottleneck when pursuing significant power increases. The BC3034S-8 valves are engineered as a direct, drop-in upgrade that eliminates this restriction. The +1mm oversize (36mm vs. the stock 35mm) is a calculated increase that maximizes port flow without typically requiring extensive cylinder head machining, preserving head integrity and simplifying the upgrade path. Each valve is manufactured using CNC precision grinding from a billet of EV8+ stainless steel, a material chosen for its excellent balance of tensile strength, thermal fatigue resistance, and malleability. This ensures the valves can withstand the intense heat and mechanical stress of aggressive camshaft profiles and elevated boost pressures without succumbing to elongation or head tuliping.

Advanced Material Science: The Black Nitride Advantage

The choice of material is only half the battle; surface treatment is paramount for longevity and performance. Brian Crower subjects the BC3034S-8 valves to a rigorous black nitride coating process. This thermochemical treatment diffuses nitrogen into the surface of the steel, creating an extremely hard, low-friction layer. The benefits are multifaceted: it significantly reduces stem and guide wear, mitigates carbon buildup on the valve head and stem, and enhances overall corrosion resistance. This coating is not a mere paint or plating; it is an integral part of the valve’s microstructure. The reduction in friction is particularly crucial for maintaining valvetrain stability at the 8,000+ RPM range the H22 is capable of, reducing heat generation and preserving precious horsepower. The science behind such coatings is well-documented in resources like this comprehensive guide to engine valve coatings, which details their role in modern performance engines.

Performance Enhancements and Operational Benefits

Integrating the BC3034S-8 valve set transforms the engine’s breathing characteristics. The larger valve head area, when paired with appropriate porting and camshafts, increases the cross-sectional area for airflow at low lift, improving mid-range torque. At high lift, it reduces air velocity resistance, allowing the engine to ingest more air for peak power gains. This is not merely about top-end horsepower; it’s about broadening the powerband and improving throttle response. The valves are weight-matched to ensure consistent valvetrain harmonics, critical when using stiffer valve springs for high-RPM operation. Below are the key benefits this valve set delivers:

• Maximized Airflow: The 36mm (+1mm) diameter directly increases intake port flow capacity, supporting horsepower gains from bolt-ons to full race builds.
• Exceptional Durability: EV8+ stainless steel construction provides superior resistance to heat fatigue, pitting, and valve stretch compared to stock or inferior alloys.
• Reduced Friction & Wear: The black nitride coating creates an ultra-hard, lubricious surface that prolongs guide life and maintains clearances for thousands of miles.
• Consistent Performance: Precision CNC machining and weight-matching ensure uniform operation across all cylinders, promoting smooth engine balance.
• Direct Fitment: Engineered as a direct replacement for OEM valves, minimizing installation complexity while offering a substantial performance upgrade.

Technical Specifications: Dimensional Data and Critical Tolerances

Every dimension of the BC3034S-8 is controlled to a strict tolerance, ensuring perfect fit and function. The following table details the exact specifications that mechanics and engineers require for proper clearancing, spring selection, and installation planning. Adherence to these specs is vital for achieving the intended performance and reliability.

Vehicle Fitment: Compatibility and Installation Guidelines

The BC3034S-8 is specifically designed for the Honda H22 and H22A DOHC VTEC engines. Precise fitment is as follows: Primary Applications: 1992-2001 Honda Prelude (with H22A1, H22A4, H22A5, H22A7 [Euro-R], and JDM H22A Type-S engines). It is also compatible with JDM H22A engines swapped into vehicles like the Honda Accord, Civic, or CR-V. Critical Installation Notes: While these are direct replacement valves, the +1mm oversize necessitates verification of piston-to-valve clearance, especially when used with aftermarket high-lift camshafts or lowered-deck-height blocks. A thorough clearance check using modeling clay is strongly recommended. Furthermore, the installation of new valve stem seals and a professional valve job to seat the new valves is mandatory for optimal performance and oil control. The black nitride coating is durable but should still be lubricated with assembly lube during installation to prevent galling. Always pair these valves with correspondingly rated valve springs and retainers, such as Brian Crower’s matched valvetrain kits, to handle increased RPM potential safely.
