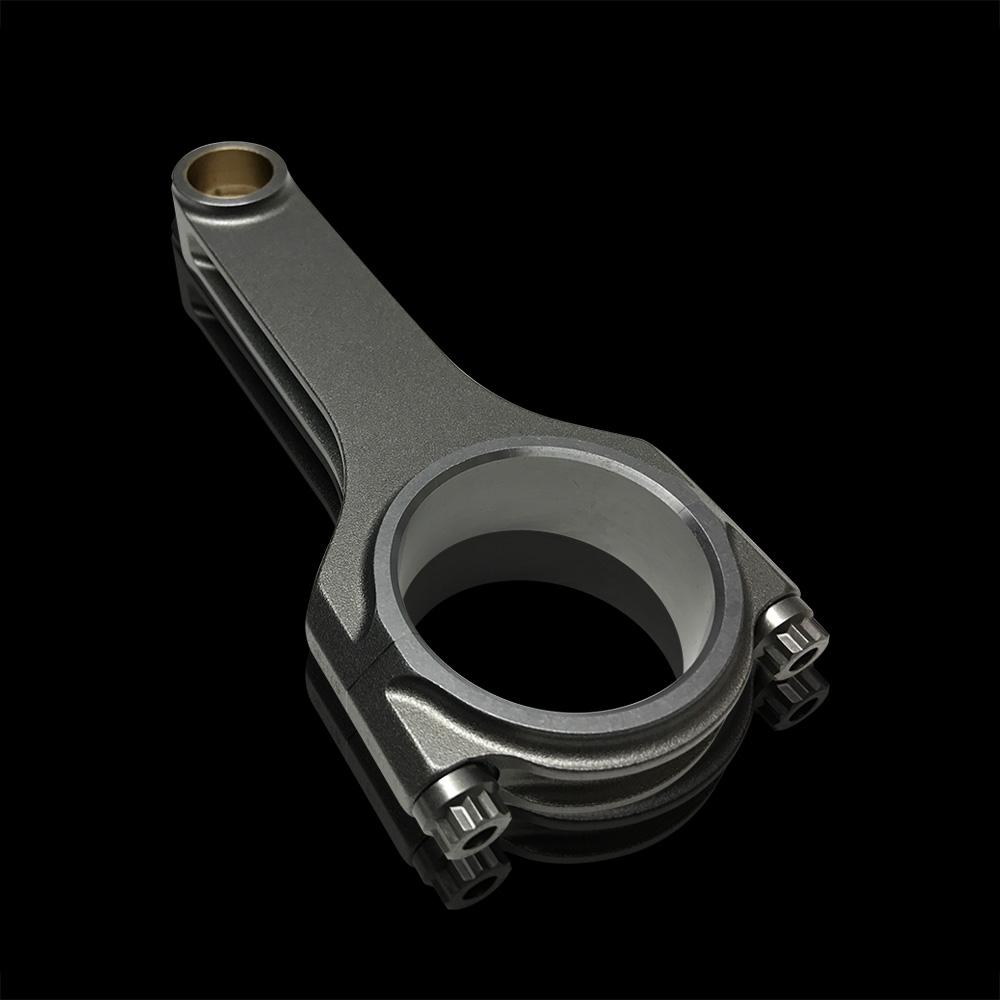

BC6148 – Mitsubishi 6G72 – ProH625+ Connecting Rods w/ Custom Age Fasteners

In the high-stakes realm of forced induction and high-RPM engine builds, the connecting rod is the definitive lifeline between piston and crankshaft, a component whose failure is catastrophic. For the Mitsubishi 6G72 platform—a engine known for its robust architecture and tunability in applications ranging from the stealthy 3000GT VR-4 to the potent Dodge Stealth R/T Turbo—the stock rods become the primary limiting factor well before the block itself concedes. The Brian Crower BC6148 ProH625+ Connecting Rod Set is engineered specifically to obliterate that limitation. This is not merely an upgrade; it is a fundamental re-engineering of the rotating assembly’s most critical link. Manufactured from proprietary ProH625+ alloy steel, shot-peened and Magnafluxed for flawless integrity, and assembled with premium Custom Age 8740 fasteners, these rods are the calculated solution for builds targeting relentless horsepower, explosive turbocharger response, and absolute rotational stability at engine speeds that would instantly destroy a factory component.

Engineering for Absolute Rotational Integrity

The core philosophy behind the BC6148 rods is the elimination of dynamic flex and fatigue. Under load, a connecting rod is subjected to immense compressive and tensile forces, a cycle repeated thousands of times per minute. The proprietary ProH625+ alloy steel is selected for its exceptional yield and ultimate tensile strength, providing a significant safety margin over common 4340 forgings. This material choice allows Brian Crower engineers to optimize the rod’s beam design for maximum stiffness without unnecessary mass. Each rod is precision forged to near-net shape, ensuring the grain flow of the metal follows the rod’s contours, dramatically increasing its resistance to fatigue cracking compared to a machined-from-bar alternative. Post-forging, every single rod undergoes a rigorous shot-peening process. This cold-working procedure bombards the surface with small media, inducing compressive stresses that help to inhibit the initiation and propagation of cracks—a non-negotiable process for any component in a high-stress, cyclical loading environment.

The Critical Advantage of Custom Age Fasteners

The rod bolt is the single most stressed fastener in any engine, and its failure guarantees total engine destruction. The BC6148 kit includes premium Custom Age 8740 steel fasteners, which represent a significant upgrade over standard cap screws. These fasteners are manufactured to exceptionally tight tolerances and are “age” hardened, a thermal process that creates a more uniform molecular structure for consistent clamp load and superior resistance to elongation under stress. Proper installation using the stretch method (as opposed to a simple torque value) is critical to achieve the designed preload and ensure the big-end bearing bore remains perfectly circular under operation. For a detailed technical breakdown on the importance of rod bolt torque and stretch, refer to this authoritative guide on connecting rod bolt procedures. The machined register between the rod and cap, combined with these fasteners, ensures unparalleled big-end stability, directly contributing to maintained bearing clearance and oil film integrity.

Performance Benefits & Application Scope

Deploying the BC6148 ProH625+ rods transforms the capability ceiling of your 6G72 build. The primary benefit is the removal of the “rod fear” that constrains tuners, allowing you to safely explore power levels and RPM ranges that are simply off-limits with OEM or lesser aftermarket components. The precision balancing and weight-matching of the set contribute to a smoother, more responsive engine, reducing parasitic losses from harmonic vibration.

• Eliminates the Stock Rod Failure Point: Designed to reliably support power levels in excess of 800+ horsepower in turbocharged applications, depending on supporting mods and fuel.
• Enhanced High-RPM Stability: The stiff beam design and rigid big-end assembly prevent bearing “breathing” and oil film collapse at sustained high revolutions.
• Optimized Weight-to-Strength Ratio: ProH625+ material allows for a strong, lightweight design, improving throttle response and reducing rotating mass.
• Precision Manufacturing for Consistency: CNC-machined to exacting tolerances, ensuring perfect piston alignment and consistent compression height across all cylinders.
• Professional-Grade Durability Treatments: Shot-peened and Magnafluxed (fluorescent penetrant inspected) to expose any subsurface flaws before they become failures.
• Direct, No-Modification Fitment: Engineered as a true drop-in component for the 6G72, utilizing standard bearing sizes for straightforward assembly.

Vehicle Fitment & Compatibility

The Brian Crower BC6148 ProH625+ Connecting Rod Set is engineered as a direct, precision-fit replacement for the factory connecting rods in all variants of the Mitsubishi 6G72 engine. Correct installation assumes the use of the appropriate standard-size performance crankshaft and rod bearings. Critical verification of all clearances (rod side, bearing crush, and pin fit) remains the responsibility of the engine builder. Primary applications include:

Mitsubishi 6G72 Engine Family:
• Mitsubishi 3000GT (1991-1999) – All models, including base, SL, and VR-4.
• Dodge Stealth (1991-1996) – All models, including base, ES, R/T, and R/T Turbo.
• Mitsubishi Montero (1994-1999) – Models equipped with the 6G72 engine.
• Mitsubishi Eclipse (1990-1994) – 6G72 V6 models.
Note: Always verify engine displacement and configuration (DOHC vs. SOHC). These rods are designed for the standard stroke 6G72 crankshaft.

Technical Specifications

Installation Precision & Final Build Considerations

The installation of the BC6148 rods is a procedure that demands machinist-level precision. While they are a direct fit, their performance potential is only unlocked through correct assembly. This mandates the precise measurement of connecting rod side clearance and crankpin bearing clearance with plastigage or micrometers. The provided Custom Age fasteners must be installed using the recommended stretch specification or torque + angle method as per Brian Crower’s instructions, not generic values. Pair these rods with a precision-balanced crankshaft, high-quality bearings, and forged pistons to create a rotating assembly capable of withstanding the extreme pressures of modern turbocharging or high-RPM naturally aspirated competition. For the serious 6G72 builder, the BC6148 set is not an option; it is the foundational component for any build where horsepower goals exceed factory engineering margins and long-term reliability is non-negotiable.
