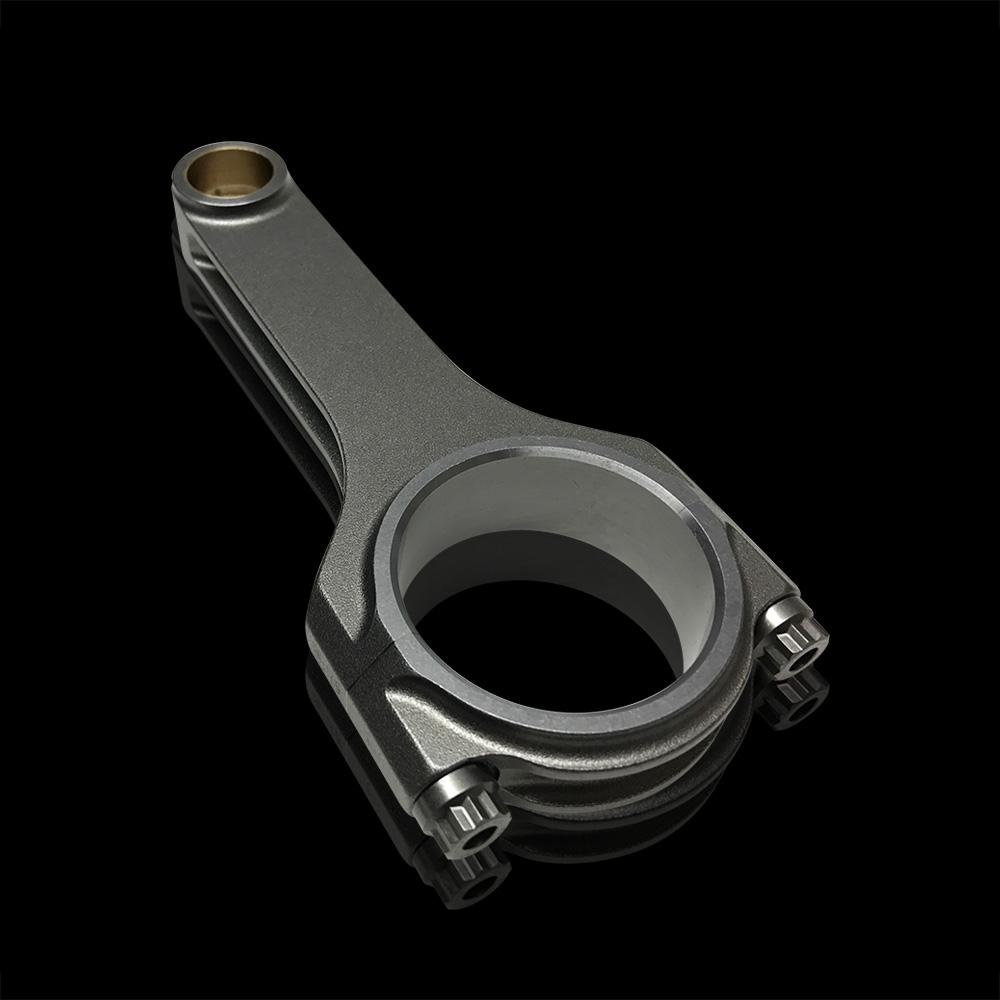

BC6369 – Toyota 1GRFE – ProH2K Connecting Rods w/ARP2000 Fasteners
In the high-stakes realm of forced induction and high-RPM performance, the connecting rod is the component that separates a successful build from a catastrophic failure. For Toyota’s legendary 1GR-FE 4.0L V6, a cornerstone of the FJ Cruiser, 4Runner, Tacoma, and Tundra platforms, the stock powdered metal rods represent the single greatest limiting factor for significant power increases. The Brian Crower BC6369 ProH2K Connecting Rod Set with ARP2000 Fasteners is engineered to eradicate that limitation. This is not an incremental upgrade; it is a fundamental re-engineering of the reciprocating assembly’s backbone, transforming the robust but constrained 1GR into a platform capable of reliably handling the extreme cylinder pressures of turbocharging, supercharging, and sustained high-RPM operation. Every facet of the ProH2K rod—from its H-beam design and proprietary 4340 chromoly forging to the inclusion of premium ARP2000 cap screws—is a calculated decision focused on delivering uncompromising strength, perfect dimensional consistency, and long-term durability under punishing loads.
Design Philosophy: The H-Beam Advantage for the 1GR-FE
The ProH2K series utilizes a precision-machined H-beam design, the industry standard for high-performance and racing applications. This geometry is selected for its optimal balance of tensile strength and column strength (resistance to buckling). The wide, flat beams provide superior resistance to the compressive forces experienced during the combustion stroke, while the centralized “web” of the ‘H’ efficiently manages the tensile loads as the piston is pulled down during the intake stroke. For the long-stroke 1GR-FE, which inherently places higher side-loading forces on the rods, this design is critical. Furthermore, the H-beam profile allows for strategic weight reduction through precisely machined lightening pockets and profiles without sacrificing structural integrity, contributing to a lower reciprocating mass for improved engine response and reduced bearing loads.
Material Science: 4340 Chromoly and Premium Heat Treating
The foundation of the ProH2K’s reliability is its material construction. Each rod is CNC-machined from a premium-grade 4340 chromoly steel billet. 4340 steel, defined by its nickel-chromium-molybdenum alloy composition, is revered for its exceptional strength-to-weight ratio, superior fatigue life, and high impact resistance. Brian Crower subjects every set to a multi-stage heat-treating process, including precise quenching and tempering, to achieve a uniform core hardness of Rockwell C 38-42. This process ensures the material’s grain structure is optimized for the alternating high-stress cycles of an internal combustion engine, providing a significant safety margin over the stock components and many “beam-style” aftermarket rods that may use inferior materials or less rigorous processing.
Technical Specifications & Component Integration
Beyond the rod itself, the complete BC6369 kit is a system engineered for compatibility and performance. The inclusion of ARP2000 Wave-Loc Fasteners is non-negotiable for a serious build. These cap screws are manufactured from a proprietary 8740 chrome moly steel and heat-treated to 200,000 psi tensile strength, far exceeding the capability of any OEM or standard aftermarket bolt. The “Wave-Loc” underhead design creates a superior clamping force that is more resistant to loosening under harmonic vibration. For proper assembly, these fasteners require the use of ARP Ultra-Torque fastener lubricant and a precise torque-plus-angle procedure to achieve the correct clamp load, a critical step for ensuring rod bearing clearance and longevity. As noted in a comprehensive technical analysis on EngineLabs, the rod bolt is the single most stressed fastener in the entire engine, making this upgrade paramount.
| Specification | Detail |
|---|---|
| Part Number | BC6369 |
| Engine Application | Toyota 1GR-FE 4.0L V6 |
| Center-to-Center Length | Stock Replacement (Precisely matched) |
| Big End Diameter | Machined for Stock Crankshaft Journal Size |
| Small End Diameter | Machined for Stock Floating Piston Pin |
| Material | Premium 4340 Chromoly Steel |
| Fasteners Included | ARP2000 Wave-Loc Cap Screws (Set of 12) |
| Weight (Per Rod Assembly) | Competitively matched for balance; typically within ±2 grams |
| Finish | Shot-Peened for Fatigue Resistance |
| Recommended Use | High-Boost Turbo/Supercharged, High-RPM, Nitrous, and Severe Duty Applications |
Vehicle Fitment & Application Guidelines
The BC6369 ProH2K rod set is a direct, precision-fit replacement for the OEM connecting rods in all Toyota 1GR-FE and 1GR-FBE engines. This covers a wide range of popular Toyota trucks and SUVs known for their durability, which are prime candidates for performance enhancement. It is absolutely critical that upon receiving the rods, the builder verifies all critical dimensions—particularly big end bore size and housing bore with bolts torqued—and checks for proper bearing clearance with Plastigage or micrometers during assembly. These rods are designed for use with standard size crank journals and full-floating piston pins.
Primary Vehicle Applications Include: Toyota FJ Cruiser (2007-2014), Toyota 4Runner (2003-2022 with 4.0L V6), Toyota Tacoma (2005-2015 with 4.0L V6), Toyota Tundra (2005-2021 with 4.0L i-FORCE V6), Lexus GX 470 (2003-2009). For any forced induction build exceeding 500+ wheel horsepower or engines intended for sustained RPM above 6,500, these connecting rods are considered essential supporting hardware.
Installation & Final Assembly Considerations
Installing the ProH2K rods requires the engine to be completely disassembled to the bare block. The rods must be paired with their original cap via the factory match-marking, and the ARP2000 bolts should only be installed using ARP’s specified lubricant and torque sequence. A final balancing of the entire rotating assembly (crankshaft, rods, pistons, and flywheel/flexplate) is highly recommended to mitigate harmonic vibrations at elevated RPM. Pair these rods with quality forged pistons (such as Brian Crower’s matching 1GR offerings), a balanced crankshaft, and a performance main stud girdle for a fully fortified short block capable of withstanding 800+ horsepower.
Definitive Performance Benefits
- Eliminates the Stock Rod Failure Point: Replaces the powdered metal OEM rods, which are prone to failure under high cylinder pressure, with a billet 4340 steel H-beam capable of supporting multi-hundred horsepower increases.
- Unmatched Fastener Strength: Integrated ARP2000 cap screws provide a clamping force and fatigue resistance orders of magnitude greater than stock, securing rod bearing alignment under extreme loads.
- Superior Fatigue and Impact Resistance: The combination of premium material and controlled heat-treating offers exceptional longevity in high-stress environments, from desert racing to drag strip passes.
- Precision Machining for Reliability: CNC machining ensures perfect bore geometry, parallel surfaces, and consistent weight, leading to balanced operation and predictable bearing wear.
- Enables Forced Induction and High-RPM Builds: This is the foundational component required to safely pursue turbo, supercharger, nitrous, or high-RPM NA builds on the 1GR-FE platform, unlocking its true performance potential.
For the builder who views the 1GR-FE not as a limit but as a starting point, the Brian Crower BC6369 ProH2K Connecting Rod Set is the definitive solution. It provides the engineering certainty needed to contain explosive combustion forces, making it the single most important investment for any serious 1GR performance or endurance build. This is the component that turns ambition into reliable, repeatable power.
