Mid-Generation GC8 Tuning: Elite Adaptor for MY97-98 WRX
The MY97-98 Subaru WRX represents a transitional phase in the GC8 lineage, featuring a distinct 3-plug yellow ECU connector configuration that differs from both the earlier and later models. The Elite 1000/1500 Plug ‘n’ Play Adaptor Harness is precision-engineered to interface specifically with this ECU header. It provides a bolt-in solution for upgrading to a Haltech Elite ECU, bypassing the factory computer’s limitations on boost, fuel, and tuning resolution. This harness is essential for anyone building a high-horsepower GC8 from this era, ensuring reliable electrical connection without the nightmare of a custom wire-in job.
Engineering for the Facelift GC8
This adaptor harness correctly maps the MY97-98 specific pinout, which includes changes to the ignition coil dwell and injector drivers compared to the MY93-96 models. It integrates seamless support for the factory idle control valve and fuel pump relay logic. The harness is constructed with high-quality automotive-grade wire and connectors that lock securely into the factory vehicle harness. It is designed to support the conversion from the factory MAF sensor to a Speed Density system (MAP sensor + Air Temp Sensor), which eliminates the intake restriction and reliability issues associated with the old hot-wire MAF.
Operational Benefits
With this harness, the Elite ECU can take full command of the EJ20 turbo engine. Users gain access to advanced features such as closed-loop boost control, knock protection, and transient throttle enrichment. The harness includes an auxiliary I/O plug, enabling the addition of extra sensors like oil pressure or ethanol content for flex-fuel tuning. This robust electrical foundation ensures that the ECU receives clean signals and can drive the engine’s actuators with precision.
Fitment Guide
- Subaru WRX: MY97-98 (Australian Delivered and JDM)
- Chassis: GC8 / GF8
Technical Specifications
| Parameter | Specification |
|---|---|
| Supported ECU | Elite 1000 or Elite 1500 |
| Connector Type | 3-Plug Yellow Factory Header |
| Transmission | Manual Only |
| Tuning Type | Ready for Speed Density (Map Sensor based) |
Summary & Includes

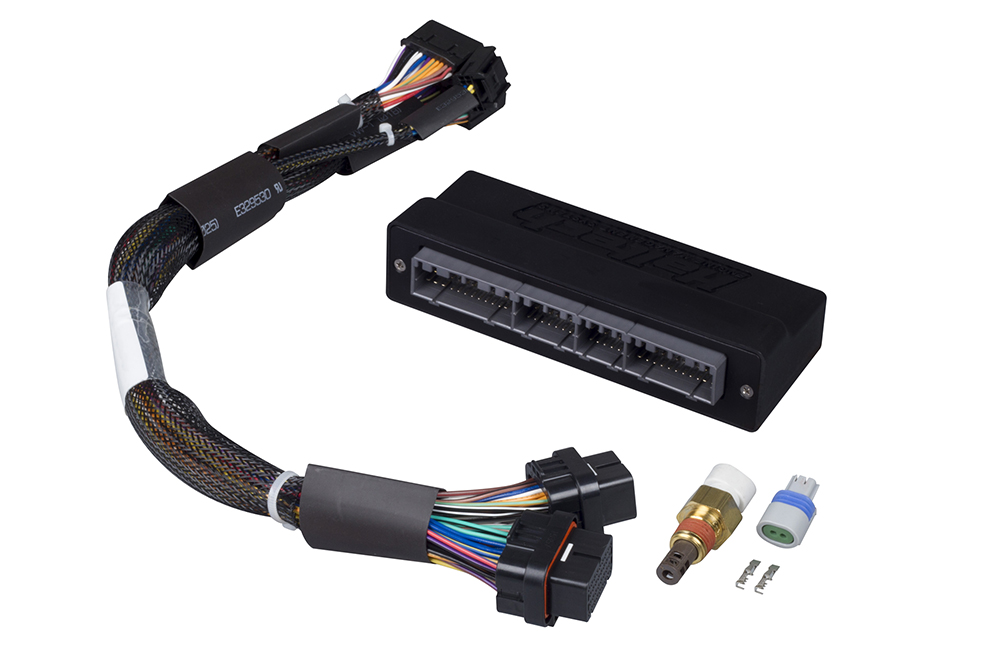

Includes:
- 1 x Injection Molded Plug ‘n’ Play Adaptor Harness
- 1 x M14 x 1.5 Air Temp Sensor with matching plug and pins
- 1 x Auxiliary I/O 16 Pin Tyco plug and pins
Note: Manual transmission only.
