High Output CDI Coil

Extreme Ignition Energy: High Output CDI Coil

In the high-pressure environment of a forced-induction race engine, the demands placed on the ignition system are immense. As cylinder pressures rise, the air-fuel mixture becomes exponentially more difficult to ionize, leading to a phenomenon known as “spark blow-out.” The High Output CDI Coil is specifically engineered to combat this. Unlike traditional inductive coils that build energy slowly, a Capacitive Discharge Ignition (CDI) coil is designed to receive a high-voltage pulse from a CDI module and discharge it almost instantaneously. This results in an incredibly sharp, high-intensity spark that can jump the gap in the most extreme conditions. This is the definitive solution for engines pushing high boost levels on methanol or E85, where detonation protection and consistent combustion are non-negotiable.

The Physics of Capacitive Discharge Ignition

To understand why a CDI coil is superior for high-RPM and high-boost applications, one must differentiate between CDI and Inductive ignition. In an inductive system, the coil acts as the energy storage device; it requires “dwell time” to charge its magnetic field. At high RPM, there is simply not enough time to fully charge the coil, leading to a weaker spark. In a CDI system, the energy is stored in a capacitor within the ignition module (like a Haltech IC-8) and is then dumped into the coil. The High Output CDI Coil is optimized for this rapid energy transfer, featuring a low primary inductance that allows for a much faster voltage rise time. This ensures that the spark reaches its peak voltage in microseconds, ensuring that combustion is initiated precisely when commanded, regardless of engine speed. This is a critical component for RB26, 2JZ, and K-swap drag cars.

Operational Benefits and Durability

The High Output CDI Coil provides a level of spark energy that traditional coils cannot match. This allows the tuner to run a wider spark plug gap, which creates a larger spark kernel and promotes a more complete burn of the air-fuel mixture. This improved combustion efficiency directly translates to more power and better throttle response. Furthermore, these coils are built to withstand the intense thermal and electrical stresses of motorsport. The internal windings are potted in a high-temperature epoxy to prevent arcing and vibration failure. When integrated into a harness integration project, these coils provide the reliability needed for endurance racing or high-power street use. This is especially vital when using closed-loop boost control to push the turbocharger to its absolute efficiency limit.

Installation and ECU Integration

It is critical to note that these are CDI-specific coils and cannot be driven directly by a standard ECU’s igniter output. They must be used in conjunction with a dedicated CDI power module. When configuring the fuel map calibration, the dwell time (or discharge curve) must be set according to the CDI module’s requirements, not standard inductive settings. The kit includes a high-quality Delphi plug and pins to ensure a secure, moisture-resistant electrical connection. These coils are often used in “Coil-on-Plug” (COP) or “Coil-near-Plug” configurations, depending on the engine’s physical layout and spark plug access. Proper grounding of the CDI system is essential to prevent electrical noise from interfering with the ECU’s sensitive sensor signals.

Technical Specifications

Summary & Includes

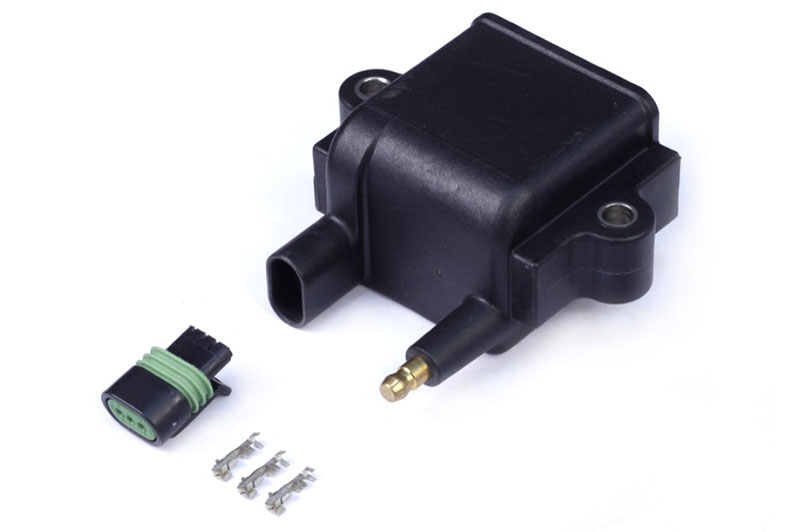

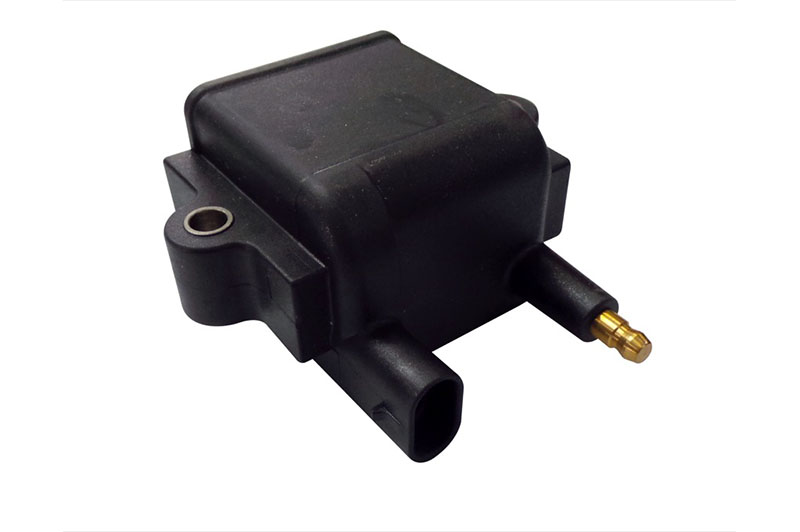

The High Output CDI Coil is the ultimate ignition upgrade for extreme performance engines. Includes: 1 x High Output CDI Coil and a Matching Delphi plug and pins. Warning: Do not attempt to use these with a standard inductive ignition system.
