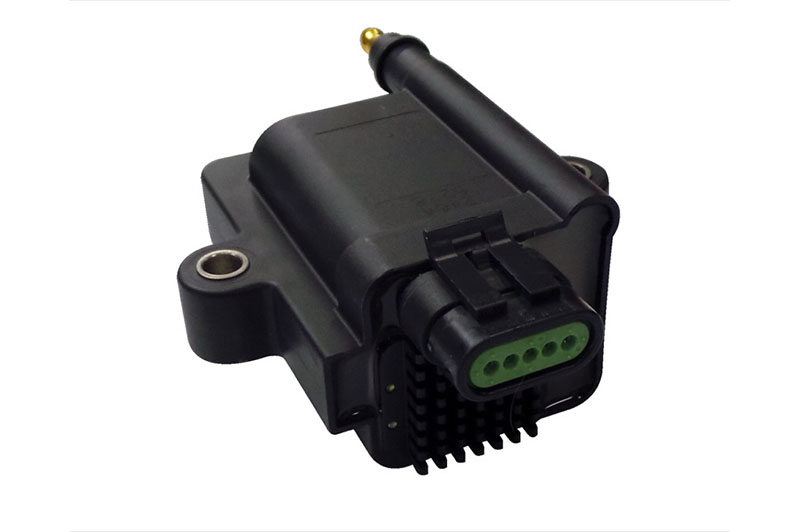

High Output IGN-1A Inductive Coil with built-in ignition module

Combustion Authority: High Output IGN-1A Inductive Coil

When cylinder pressures exceed the limits of traditional ignition systems, the High Output IGN-1A Inductive Coil becomes a mandatory component for engine survival. This is a “Smart” coil, featuring an integrated ignition module (IGBT) that allows it to be driven directly by any standalone ECU integration without an external igniter. Widely recognized as the standard for Mazda 13B rotary engines and high-boost 2JZ-GTE builds, the IGN-1A produces a spark of such intensity—over 100mJ of energy—that it can ignite almost any air-fuel ratio, even under massive boost levels or methanol-heavy fuel map calibrations. It is the definitive solution for eliminating spark blow-out and ensuring detonation protection in competition environments.

The Engineering of the Built-In Smart Module

The core innovation of the IGN-1A is the integration of the power transistor directly into the coil body. This Inductive ignition architecture allows for a dedicated ground for the secondary winding, which drastically reduces EMI and noise interference that can often plague RB26 or LS-swap electronics. By having the igniter internal to the coil, the high-current switching happens centimeters away from the magnetic core, minimizing inductance losses. This results in a faster voltage rise time and a longer spark duration than almost any other coil on the market. In a standalone ECU integration, this allows the tuner to use a simple 0-5V logic pulse to command massive spark energy, making it compatible with everything from a Haltech Elite to a MoTeC M1.

Operational Benefits for Force Induction

For engines utilizing closed-loop boost control to push 30+ PSI, the dielectric resistance in the combustion chamber becomes immense. The IGN-1A overcomes this with a secondary voltage capacity exceeding 45,000V. This allows for a wider spark plug gap, which creates a larger flame kernel and more consistent ignition. For the tuner, this consistency is vital for building a stable fuel map calibration. If the spark is weak, the engine may misfire or “break up” at high RPM, leading to false AFR readings and potential engine damage. With the IGN-1A, the spark is deterministic and powerful, allowing the tuner to find the true Maximum Brake Torque (MBT) timing without hardware limitations.

Installation and Harness Integration

The IGN-1A requires a specific 5-pin electrical interface. Because of its massive current draw, proper harness integration is vital; it should never share power or ground with sensitive sensors. Each coil should have a dedicated 14-16 AWG power feed and a high-quality ground directly to the engine block. The unit includes the matching plug and pins for a professional termination. These coils are typically mounted “near-plug” using a bracket, with a short, high-quality spark plug lead connecting to the plug. This setup is highly effective for managing heat and vibration compared to a traditional coil-on-plug (COP) unit.

Technical Specs Table

Summary & Includes

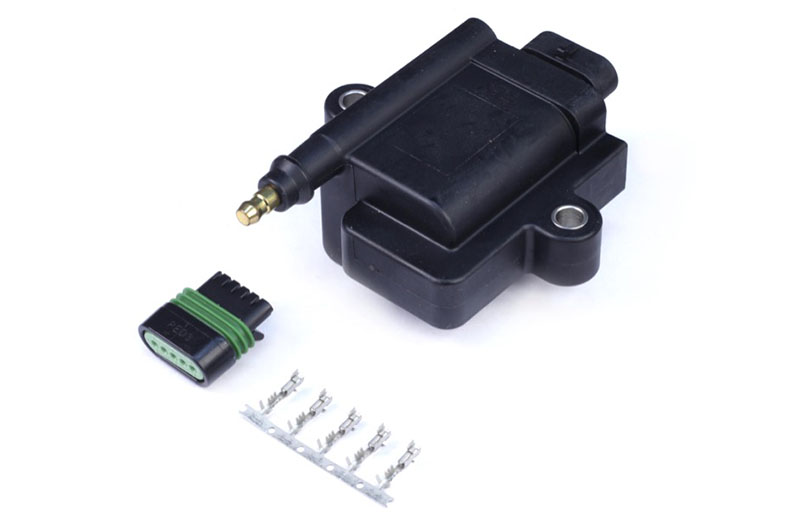

The High Output IGN-1A is the world’s premier inductive smart coil for motorsport. Includes: 1 x IGN-1A Coil and matching plug/pins. Note: Mandatory for 1000+ HP builds and high-RPM rotary applications.
