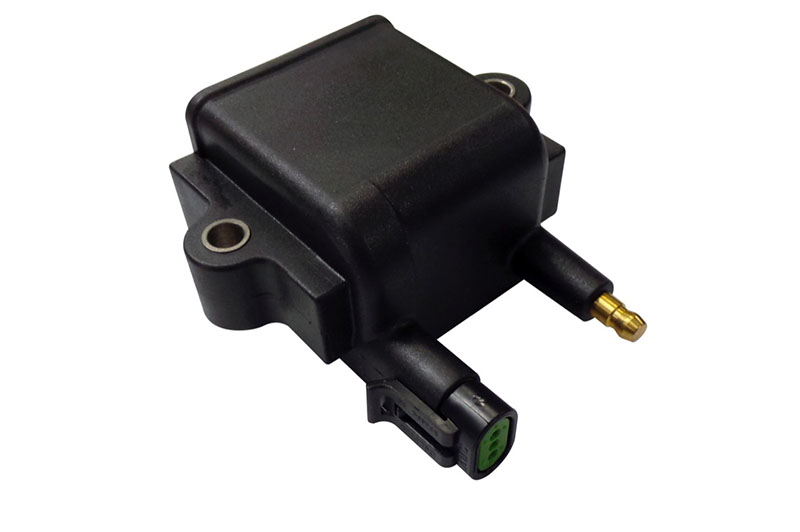

High Output Inductive Coil

Pure Inductive Power: High Output Inductive Coil

In many racing and high-performance configurations, the tuner may prefer to use an external igniter module to maintain a simpler, more robust coil design. The High Output Inductive Coil is a “Dumb” coil, meaning it lacks an internal power transistor. Instead, it is engineered for maximum energy storage and rapid discharge when paired with a high-current igniter, such as the Haltech HPI range. This coil is the definitive choice for builders using traditional Inductive ignition theory, where the dwell time is used to charge a massive magnetic field that is then collapsed to generate a fierce spark. This is a foundational component for LS-swap and 2JZ engines where external heat-sinking of the igniter is preferred for long-term reliability.

Engineering Principles: Dwell Time and Magnetic Saturation

The efficiency of an inductive coil depends on its primary resistance and inductance. This High Output unit is optimized for a fast current ramp-up, allowing for significant energy storage even at high RPM. Unlike many OEM coils that “saturate” and bleed off energy as heat, this coil maintains a linear energy-to-dwell relationship. In a standalone ECU integration, this allows the tuner to push the dwell settings further to achieve a “hotter” spark kernel without damaging the coil. This is particularly useful in fuel map calibration for boosted engines where the dense air-fuel mixture requires more energy to ionize. By offloading the switching heat to an external HPI module, the coil itself remains cooler, ensuring stable secondary voltage output during 24-hour endurance races or long drift sessions.

Operational Benefits: Precision Timing and Stability

Using the High Output Inductive Coil ensures that the ignition system is not a variable in the performance equation. When used with a high-speed igniter, the spark jitter is virtually non-existent, providing the Ignition Timing accuracy required for detonation protection. For the tuner, this means more consistent combustion data, leading to a smoother torque curve. In high-power RB26 or K-swap builds, this coil’s ability to provide a consistent spark helps in stabilizing the Air-Fuel Ratio (AFR) by preventing partial combustion cycles that can skew O2 sensor readings. It represents a professional-grade alternative to “coil-on-plug” systems that may be heat-limited by their proximity to the cylinder head.

Installation and System Requirements

It is critical to note that this coil must be used with an external igniter module. It cannot be driven directly by the low-current outputs of an ECU. This coil is designed to interface seamlessly with the Haltech HPI range of High Power Igniters. The kit includes the matching Delphi plug and pins for a secure, weatherproof installation. For optimal performance, the coils should be mounted in a cool location with high-quality spark plug leads. This “near-plug” mounting strategy is a favorite among top-tier builders for its balance of ignition energy and thermal protection.

Technical Specs Table

Summary & Includes

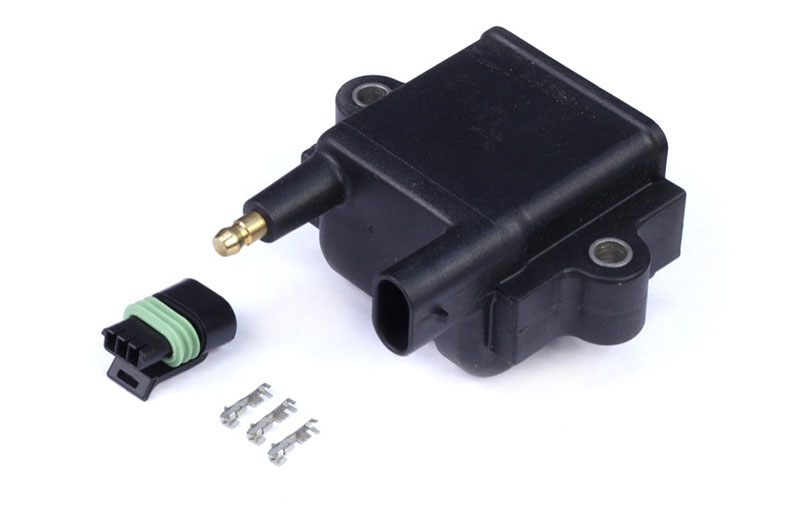

The High Output Inductive Coil is the engine builder’s choice for external-igniter systems. Includes: 1 x Inductive Coil and matching Delphi plug/pins. Warning: Must be used with an igniter module; do not connect directly to ECU signal outputs.
