Plug and Pins Only – Suits Hitachi R35 Ignition Coil

Modern Classics: Plug and Pins for Hitachi R35 Ignition Coils

The Nissan GT-R R35 ignition coil has become the universal standard for ignition upgrades on 2JZ, RB26, and Barra engines. However, the success of an R35 coil conversion relies heavily on the quality of the harness integration. The Plug and Pins Only set for Hitachi R35 Coils provides the specialized electrical interface needed to adapt these high-output coils to any custom loom. These connectors are designed to mate perfectly with the Hitachi HT-020106 coils, providing a vibration-proof and weatherproof connection that is essential for high-performance street and track vehicles where signal integrity is non-negotiable.

Engineering Principles: Coil-On-Plug Sealing and Conductivity

R35 coils are “Smart” coils (Integrated Igniter), meaning they require a 3-wire or 4-wire interface: Power, Ground, and a 5V Trigger. This Analogue-to-Digital interface (the trigger signal) must be pristine to avoid timing scatter. This kit’s pins are precision-engineered to maintain a gas-tight fit, which prevents the micro-arcing and resistance that can occur when repurposing old factory clips. Furthermore, the kit includes high-temp seals designed to keep moisture and oil out of the coil’s electrical socket—a common failure point on high-mileage JZ and RB engines with leaking valve cover gaskets. By ensuring a perfect electrical and mechanical seal, this connector set protects your standalone ECU integration from intermittent misfire events.

Operational Benefits for Custom Loom Construction

For builders performing a sequential ignition conversion on a Supra or Skyline, this kit is an essential part of a clean, professional finish. It allows you to build a harness using Tefzel wire to the exact length required, eliminating messy pigtail adapters. In a fuel map calibration session, having a reliable ignition connection means the tuner can trust the spark is delivered exactly when commanded. This is critical for detonation protection; if a coil loses signal for even a fraction of a second at 8000 RPM and 30 PSI, the results are catastrophic. These Hitachi-spec connectors ensure that your ignition system is a bedrock of reliability, allowing for more aggressive timing maps and better power delivery.

Technical Specs Table

Summary & Includes

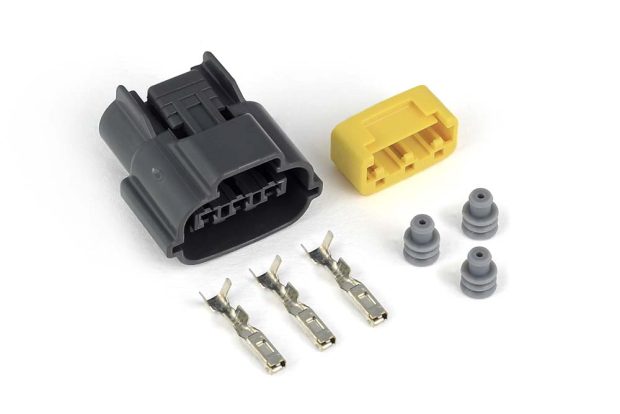

The Hitachi R35 Plug and Pin Set is the definitive connector for the industry’s most popular coil conversion. Includes: 1 x Connector, Pins, and Seals. Note: Designed exclusively for use with HT-020106 or OEM R35 GT-R Ignition Coils.
