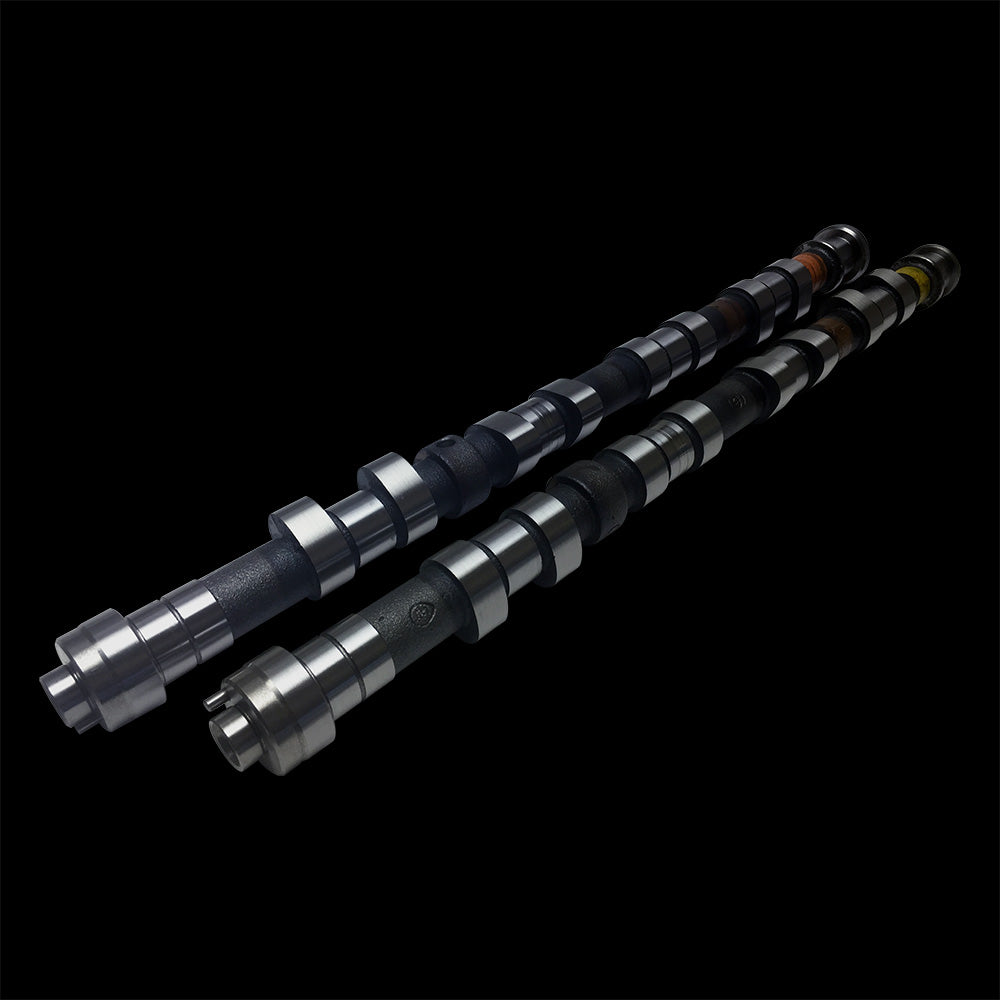

BC0161 – Dodge SRT-4 Stage 2 Camshafts – Street/Strip Spec

For the Dodge SRT-4 enthusiast who views the stoplight as a launch pad and the quarter-mile as the ultimate report card, incremental upgrades are insufficient. To breach the ceiling imposed by factory components, you must address the very heart of the engine’s breathing: the valvetrain. The BC0161 Dodge SRT-4 Stage 2 Camshafts from Brian Crower represent a calculated, precision-engineered assault on this limitation. Engineered specifically for the 2.4L DOHC engine, this Street/Strip spec camshaft set is not merely a parts swap; it is a fundamental recalibration of your engine’s personality. It masterfully bridges the gap between aggressive top-end power and tractable street manners, leveraging advanced cam profiling and superior metallurgy to unlock horsepower that the factory ECU desperately tries to hide. This is the definitive component for drivers demanding authoritative mid-range torque for devastating pulls from a roll and extended RPM range for maximum power under boost.

Engineering Philosophy: The Street/Strip Hybrid Profile

Brian Crower’s “Stage 2” designation is a commitment to a specific performance ethos. Unlike radical race cams that sacrifice all low-speed drivability, the BC0161 profile is a study in balance. The design increases both intake and exhaust valve lift and duration strategically. The increased duration allows the valves to stay open longer, facilitating a greater volume of air/fuel mixture into the cylinder and a more complete expulsion of exhaust gases. This is paramount for turbocharged applications like the SRT-4, where efficient exhaust scavenging reduces turbo backpressure and spool time. The elevated lift opens the valve farther, increasing the curtain area for airflow at the peak of the cam lobe. Crucially, the ramp design is aggressive enough for high-RPM performance but controlled to maintain valvetrain stability and minimize stress on components like the factory hydraulic lash adjusters, when used within recommended specifications. This synergistic approach ensures the engine breathes with significantly greater efficiency across a broad power band, translating directly to measurable gains in horsepower and torque where you feel it most.

Uncompromising Benefits for the SRT-4 Platform

• Broad Powerband Enhancement: Engineered for substantial gains from the mid-range through the revised 7200 RPM limit, eliminating the “hole” in power delivery common with poorly matched cams.
• Optimized for Forced Induction: The exhaust profile specifically targets improved turbocharger scavenging, reducing backpressure and promoting faster spool characteristics for better throttle response.
• Precision Machined from Billet: Each camshaft is CNC-machined from a single piece of 8620 chromoly steel billet, ensuring superior grain structure, strength, and consistency over cast or welded-core alternatives.
• Advanced Heat Treatment: Undergoes a proprietary nitriding process that creates an exceptionally hard, wear-resistant outer surface while retaining a tough, shock-absorbing core for ultimate durability under high spring pressures.
• Maintained Street Manners: Designed to function with the factory ECU and supporting fuel system at lower RPMs, preserving idle quality and low-speed driveability for daily use while screaming for action at wide-open throttle.

Technical Specifications & Vehicle Fitment

Precision requires exactitude. Below are the critical technical specifications for the BC0161 camshaft set. The data points of valve lift and duration at 0.050″ lift are the universal language of performance, dictating the cam’s character and its specific demands on supporting valvetrain components.

Vehicle Fitment

The BC0161 camshaft set is engineered as a direct-fit upgrade for a specific range of Chrysler’s turbocharged 2.4L engines. Correct fitment is critical for installation and performance. This cam set is confirmed to fit:

• 2003-2005 Dodge Neon SRT-4 (All production models)
• 2003-2005 Dodge SRT-4 (All production models)

Critical Note: Installation of these cams necessitates complementary valvetrain upgrades for reliable, high-RPM operation. Brian Crower strongly recommends pairing them with their corresponding valve springs and retainers (typically BC springs & titanium retainers kit) to control the increased lift and prevent valve float. Failure to upgrade these components risks catastrophic valvetrain failure. Professional installation and tuning are required to adjust fuel maps, ignition timing, and rev limiters to fully exploit the new cam profile’s capabilities. For a deeper technical understanding of how cam timing affects turbocharged engine performance, consider this resource from Engine Labs on camshaft fundamentals.

Installation & Tuning Imperatives

Installing the BC0161 cams is a technical procedure that demands mechanical precision. It involves timing belt removal, cam gear alignment, and critical attention to valve lash. The factory hydraulic lash adjusters (HLAs) can be reused, but their condition must be impeccable; any worn HLAs will compromise performance and noise. Post-installation, the factory ECU must be recalibrated. The increased airflow will skew the mass airflow (MAF) sensor readings and alter volumetric efficiency (VE). A professional tune using diagnostic software like DSMLink (for applicable ECUs) or HP Tuners is non-negotiable to correct air/fuel ratios, optimize ignition advance, and raise the rev limit to accommodate the new power band. This tuning step transforms the cam installation from a mechanical modification into a holistic performance upgrade, ensuring engine longevity and extracting every last horsepower the BC0161 cams are engineered to deliver.
