BC0459-UPG – Chevrolet LS Series Wet Sump Stroker Kit – 4.125″ Stroke/ProH625+ Rods, CP Custom MTO Pistons

In the pursuit of definitive naturally aspirated horsepower or monumental forced induction potential, engine displacement remains the foundational variable. For the Chevrolet LS platform, the path to a dominant 427 cubic inch configuration—and beyond—demands a component suite engineered not just to increase capacity, but to redefine structural integrity and rotational efficiency. The Brian Crower BC0459-UPG Stroker Kit represents the apex of this philosophy. This is not a collection of mass-produced parts; it is a fully integrated, wet-sump-specific system built around a monstrous 4.125-inch stroke forged crankshaft, matched with the legendary strength of Pro Series H-beam connecting rods and CP Custom MTO pistons. Designed for the builder who recognizes that true performance is forged in the details of metallurgy, balancing, and precise component symbiosis, this kit transforms an LS block into a displacement-on-demand powerhouse capable of withstanding the extreme cylinder pressures of high-RPM NA aggression or brutal boost. This is the cornerstone for building an engine that doesn’t just compete—it defines the category.

Engineering Philosophy: Beyond Mere Displacement

The objective of any stroker kit is to increase displacement by altering the crankshaft’s stroke, moving the piston further within the cylinder bore. The critical distinction of the BC0459-UPG lies in its holistic approach to this fundamental change. Brian Crower engineers the system from the center out, beginning with the crankshaft’s rotational dynamics. The increased stroke introduces greater piston speed and altered leverage angles, imposing significantly higher stress on every component in the rotating assembly. This kit is engineered to not only survive these forces but to optimize them, converting potential parasitic losses into usable, reliable power. Each component is selected and manufactured to work in perfect concert with the others, ensuring that the increased displacement translates directly into robust, repeatable performance without compromising engine longevity or drivability.

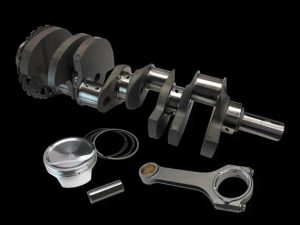

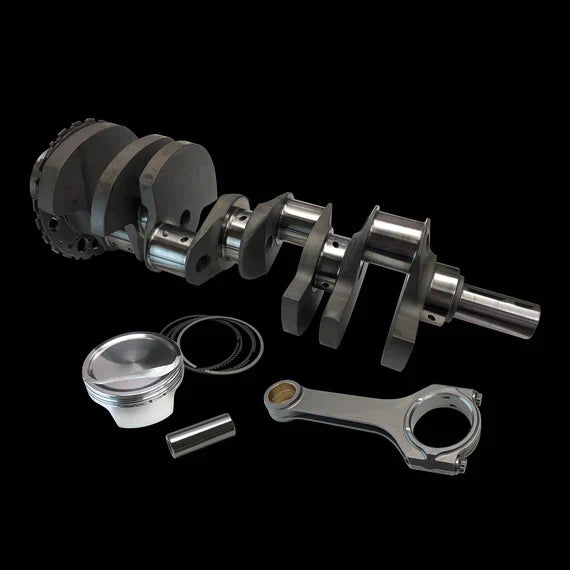

The Core Components: A Trio of Forged Dominance

The BC0459-UPG’s performance narrative is written by its three primary components, each a masterpiece of modern performance manufacturing.

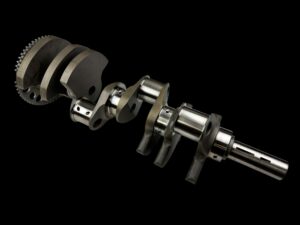

• BC 4.125″ Stroke Forged Crankshaft (4340 Steel): The heart of the system. This is a 4340 chromoly steel billet, CNC-machined to exacting specifications, then fully cross-drilled and micro-polished. The 4.125-inch stroke is the key to achieving a true 427+ cubic inch displacement in common LS bore sizes (e.g., 4.00″ bore). It features chamfered and deburred oil passages for optimal lubrication flow, Grade 8 ARP main studs for unparalleled clamping force, and is balanced to zero with the matched components in the kit. Its forging ensures a grain structure that follows the shape of the crank, providing immense tensile strength and fatigue resistance far superior to cast or even lesser forged units.
• BC ProH625+ Connecting Rods (4340 Steel): The critical link. These are not standard H-beam rods; they are Pro Series “H-plus” rods, designed with a wider, beefier beam profile for ultimate strength in high-horsepower, high-RPM applications. Machined from 4340 chromoly steel forgings, they feature CNC-profiled beams, bronze-bushed small ends for precise pin fitment, and a “fracture cap” design (where applicable) for perfect big-end alignment and cap retention. Shot-peened and Magnafluxed for flaw detection, they are rated for well over 1,500 horsepower, making them the definitive choice for connecting the aggressive stroke of the crank to the piston.
• CP Custom “MTO” (Made To Order) Pistons: The crown of the assembly. CP Pistons are the industry benchmark, and this kit includes custom units built to the exact specifications required for this specific stroker combination. The “MTO” process means they are engineered for your target compression ratio, ring package (typically 1.2mm, 1.2mm, 3.0mm), and wrist pin diameter. They are forged from 2618 aluminum alloy, a material chosen for its superior ductility and fatigue life under extreme heat and pressure compared to 4032 alloy, making them ideal for high-boost or nitrous applications. Features often include a proprietary skirt coating to reduce friction and anti-detonation grooves machined into the dome.

Performance Benefits & Application Synergy

Installing the BC0459-UPG Stroker Kit is a transformative modification. The immediate benefit is the substantial increase in displacement, which generates significantly more torque across the entire RPM band. This provides a profound improvement in throttle response and mid-range power, forming a broader, flatter power curve. For forced induction applications, the larger displacement allows you to achieve your target horsepower at lower boost levels, reducing intake air temperature and thermal stress on components, thereby enhancing reliability. The forged construction of every major component provides a massive safety margin, allowing you to explore power levels that would destroy lesser rotating assemblies. The kit is designed for wet-sump oiling systems, making it ideal for street-driven vehicles, road race cars, and drag applications where a dry-sump system is not practical or desired. For a deep dive into the theory and practice of LS stroker engine building, consider this resource on LS stroker engine fundamentals from a leading technical publication.

Vehicle Fitment & Critical Installation Notes

Vehicle Fitment: This BC0459-UPG kit is engineered for Chevrolet LS-series engines utilizing a wet sump oiling system. Specific fitment depends on block generation and bore size. It is commonly used with:

• LS1, LS6, LS2, LS3, L92, L76, L99, LSA (with appropriate block clearancing)
• LSX iron block (Gen IV)
• Aftermarket blocks from Dart, GM Performance Parts (LSX), etc., with standard cam-in-block journal sizes.

Note: The 4.125″ stroke often requires minor block clearancing (grinding) at the bottom of the cylinder bores and potentially at the pan rail to accommodate the increased rod swing. This is a standard procedure for any large-stroke LS application. Always test-fit the rotating assembly and perform necessary clearancing before final assembly. Notifications of required piston specifications must be provided at the time of order to ensure correct CP piston configuration. Kit does not include bearings, rings, or gaskets unless specified.

Technical Specifications: BC0459-UPG Stroker Kit

The Brian Crower BC0459-UPG Stroker Kit is the definitive choice for constructing a legendary LS-based engine. It eliminates guesswork and compatibility concerns by providing a fully engineered system from a single, trusted source. For the builder targeting a specific displacement goal—especially the iconic 427—with uncompromising strength for any application, this kit is the technical blueprint for success. It delivers not just parts, but a proven formula for dominance.
