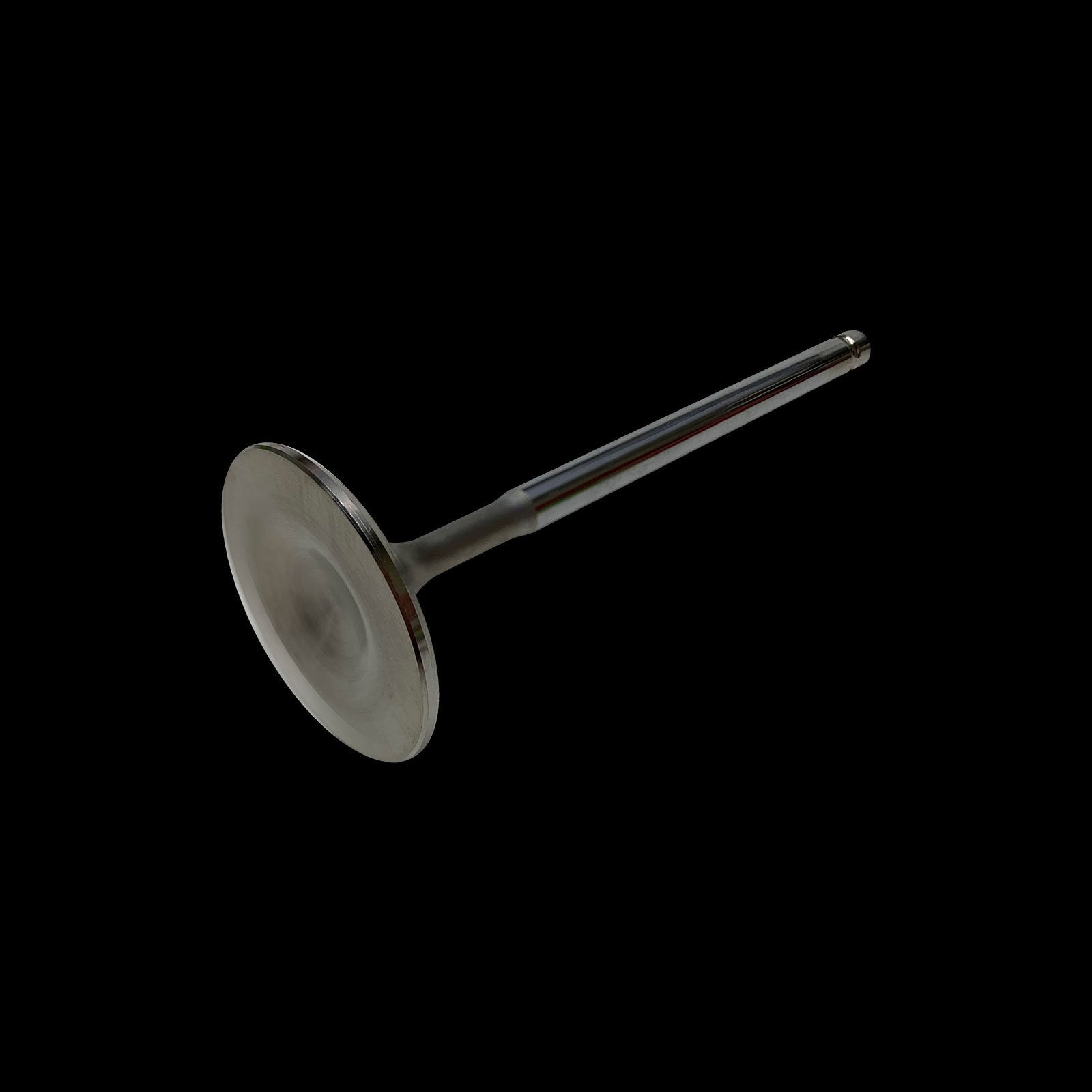

BC3235-1 – Individual Nissan RB26 Exhaust Valves (31.15mm / +1mm) – 1 only valve

In the uncompromising world of high-performance RB26 engine building, every component is a critical link in the chain of power, reliability, and response. The factory Nissan RB26DETT exhaust valve, while robust for its era, becomes a definitive bottleneck when pursuing significant horsepower targets or optimized volumetric efficiency. The BC3235-1 Individual Exhaust Valve from Brian Crower is engineered to sever that bottleneck. This is not a mere replacement part; it is a precision-machined, performance-optimized upgrade designed for the discerning builder. With an oversized 31.15mm head diameter—a full +1mm over stock—this valve is the calculated solution for expelling exhaust gases with greater authority, reducing cylinder temperature, and unlocking the flow potential of ported cylinder heads and aggressive camshaft profiles. It represents a fundamental step in transforming the legendary RB26 from a potent factory twin-turbo engine into a meticulously balanced, high-revving powerhouse.

Technical Specifications & Precision Engineering

The BC3235-1 is defined by its exacting specifications and superior material composition. It is crafted from high-quality, high-temperature EV8+ stainless steel, a material chosen for its exceptional resistance to corrosion, oxidation, and thermal fatigue—the primary enemies of exhaust valves in forced-induction applications. The valve’s geometry is optimized for both flow and durability, featuring a precision-machined back-cut on the valve head to improve low-lift flow characteristics. Every dimension is held to a strict tolerance, ensuring perfect concentricity and seat alignment, which is paramount for maintaining compression and preventing hot spots.

Performance Benefits of the +1mm Oversize Design

The core advantage of the BC3235-1 lies in its increased head diameter. This +1mm oversize is a strategic increase, large enough to provide meaningful gains without excessively compromising port velocity or requiring radical, head-weakening port modifications. The benefits are systemic and measurable.

• Enhanced Exhaust Flow: The larger valve head area, combined with a optimized back-cut, reduces restriction in the exhaust port. This allows spent combustion gases to exit the cylinder more rapidly and completely, directly reducing pumping losses and residual exhaust gas content (EGR) in the chamber.
• Reduced Cylinder Temperature: More efficient exhaust scavenging lowers in-cylinder temperatures. This is critical for preventing detonation (knock), especially in high-boost or high-compression applications, allowing for more aggressive timing maps and safer operation.
• Increased Volumetric Efficiency: By improving the exhaust side’s efficiency, the engine can draw in a denser, cooler charge of air and fuel on the subsequent intake stroke. This directly translates to increased torque and horsepower across the entire powerband.
• Improved Turbo Spool & Response: Faster-moving exhaust gas pulses carry more energy to the turbine wheel. This results in quicker turbocharger spool, reduced turbo lag, and a more immediate throttle response—a key factor in both street and track performance.
• Superior Thermal & Structural Integrity: The EV8+ stainless steel construction offers a significant safety margin over stock valves. It maintains its tensile strength and resists valve seat wear and deformation at sustained high RPM and under extreme thermal loads, a common failure point in highly-strung RB26 builds.

Vehicle Fitment & Application Notes

The BC3235-1 valve is designed exclusively for the Nissan RB26DETT inline-six engine. Its application is broad within that platform, covering all vehicles that utilized this legendary powerplant.

Primary Vehicle Applications:

• Nissan Skyline GT-R R32 (1989-1994)
• Nissan Skyline GT-R R33 (1995-1998)
• Nissan Skyline GT-R R34 (1999-2002)

Critical Installation Requirement: This is a +1mm oversized valve. Installation is not a direct drop-in procedure. It mandates that the cylinder head exhaust valve seats be professionally machined (cut) to match the new, larger 31.15mm diameter. This process, known as “seating” or “three-angle valve job,” must be performed by a qualified machinist to ensure the correct seat width, angle, and concentricity. Attempting to install an oversized valve into an unmachined seat will result in improper sealing, immediate loss of compression, and severe engine damage. This valve is intended for use during a full engine rebuild or cylinder head refurbishment where such machining is part of the standard procedure.

Installation Considerations & Technical Synergy

To fully realize the potential of the BC3235-1 valves, they must be integrated into a complementary valve train system. They are designed to work seamlessly with Brian Crower’s matched components, but the principles apply universally. Upgraded valve springs and titanium retainers (BC Valve Springs & Retainers) are highly recommended, if not essential, to control the increased mass at high RPM and prevent valve float. For maximum performance, pairing these valves with a Brian Crower RB26 Camshaft set is logical, as the cam profiles are designed to leverage improved port flow. Furthermore, proper valve-to-piston clearance must be verified when using oversized valves, especially with high-lift cams or altered deck heights. A thorough understanding of valvetrain geometry and installation principles is crucial for a successful, reliable build.

Conclusion: A Foundational Upgrade for the RB26

The Brian Crower BC3235-1 Individual Exhaust Valve is a component that speaks directly to the serious engine builder. It bypasses the limitations of the factory component with a focused, engineering-driven approach. The +1mm oversize is a purposeful compromise that delivers substantial gains in flow, thermal management, and engine response without venturing into the realm of extreme, street-unfriendly modifications. When installed correctly as part of a balanced build—including necessary head machining, appropriate valve train upgrades, and proper tuning—this valve becomes a cornerstone of reliability and performance. For any RB26 project aiming for elevated power levels, whether it’s a 500hp street GT-R or an 800hp time-attack monster, the BC3235-1 is not just an option; it is a technically sound investment in the engine’s integrity and output, ensuring the iconic RB26 can breathe freely and endure the demands placed upon it.
