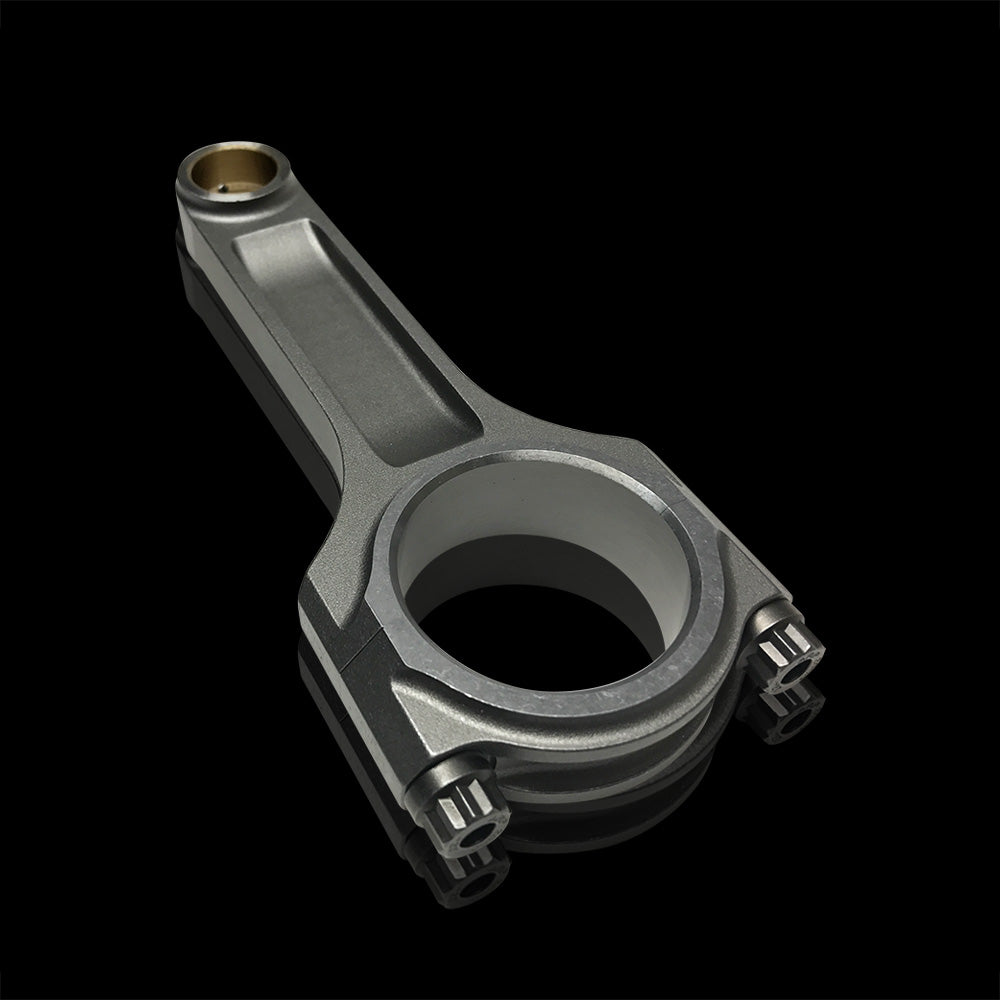

In the relentless pursuit of horsepower and rotational efficiency, the connecting rod stands as the unsung linchpin of a high-performance engine. It is the critical link that translates the violent, linear force of combustion into the smooth, rotational motion that drives the wheels. For Honda and Acura enthusiasts building stroker or high-RPM naturally aspirated engines, the margin for error is zero. The Brian Crower BC6059 Lightweight Stroker Connecting Rod Set is engineered specifically for this application, representing a pinnacle of design where material science, precision machining, and proven performance converge. With a center-to-center length of 5.985 inches, a B16A-sized 1.771″ (45mm) big end journal, and the formidable clamping force of ARP 2000 series fasteners, this rod is not merely a component—it is a foundational upgrade for builds targeting a reliable 400 wheel horsepower and beyond, whether under sustained boost or extreme piston speed.
Engineering Philosophy: The Anatomy of a Premium Rod
Brian Crower’s approach to the BC6059 is rooted in a holistic understanding of stroker dynamics. A stroker crankshaft increases displacement by lengthening the stroke, which inherently raises piston speed and lateral loading on the rod. The BC6059 is designed to manage these increased forces without adding parasitic mass. The 5.985″ C-to-C length is a critical specification, often used to maintain proper piston deck height and compression ratio with popular stroker cranks and aftermarket pistons. The rod is forged from 4340 chromoly steel, a material chosen for its exceptional strength-to-weight ratio and fatigue resistance. This billet is then CNC-machined to exacting tolerances, resulting in a final product that is both significantly stronger than a factory rod and meticulously balanced for harmonic smoothness at engine speeds that would destroy lesser components.
Critical Design Features and Material Integrity
Every facet of the BC6059’s design serves a performance and durability purpose. The H-beam design is not arbitrary; it provides an optimal balance of stiffness in the critical bending plane and weight reduction. The beams are profiled and shot-peened, a process that compresses the surface metal to create a barrier against crack initiation. The small end is precision honed and fitted with a bronze bushing for superior piston pin lubrication and durability. Most importantly, the cap is secured via a transverse grooved and serrated interface, ensuring perfect alignment and eliminating cap walk under extreme load. This attention to detail ensures the rod behaves predictably and reliably, cycle after punishing cycle.
Unmatched Fastener Technology: The ARP 2000 Advantage
The strongest rod is only as reliable as the bolts that hold it together. Brian Crower eliminates this variable by equipping the BC6059 with industry-standard ARP 2000 Cap Screws. These are not generic hardware; they are engineered fasteners manufactured from a proprietary 8740 chromoly steel alloy, heat-treated using ARP’s unique strain age hardening process. This results in a fastener with a tensile strength exceeding 200,000 psi, offering a clamping load far superior to OEM or generic aftermarket bolts. The use of ARP 2000 fasteners is a non-negotiable element for any build approaching the 400whp threshold, as rod bolt failure is catastrophic. Their inclusion here signifies a complete, no-compromise assembly ready for severe duty.
Performance and Reliability Benefits
- Optimized for Stroker Applications: The 5.985″ length is ideal for common Honda/Acura stroker combinations, ensuring correct piston positioning and engine geometry.
- 400+ Wheel Horsepower Rating: Engineered and tested to handle the dynamic loads associated with high horsepower, both forced induction and high-RPM NA.
- Significant Weight Reduction: Lightweight design reduces reciprocating mass, decreasing stress on the crankshaft and allowing for faster engine acceleration (improved throttle response).
- B16A Journal Compatibility: Features a 1.771″ (45mm) big end inner diameter, designed to fit standard B16A and compatible crankshafts without modification.
- Premium 4340 Chromoly Steel: Forged construction provides superior tensile strength and fatigue resistance compared to factory powdered metal or cast rods.
- ARP 2000 Fasteners Included: Eliminates the need for a separate, critical purchase and guarantees the highest standard of clamping force and bolt integrity.
- CNC Precision Machining: Guarantees consistent dimensions, perfect balance across the set, and reliable bearing fitment for optimal oil clearance.
Vehicle Fitment and Application Guidelines
The BC6059 is designed for the serious builder. Its primary application is in stroker engine builds for popular Honda B-series and related platforms, where the extended stroke crankshaft requires a specific rod length to maintain proper deck clearance. It is also an exceptional upgrade for any high-revving or boosted build using a standard-stroke B16A crankshaft, where the factory rod is the weak link.
Primary Fitment & Common Use Cases: This rod set is compatible with engines utilizing a B16A (or equivalent 45mm journal) crankshaft. This includes, but is not limited to, the B16A, B17A, B18C1/C5 (Type R), and B18B (when using a B16/B18C crank). It is a cornerstone component for popular stroker displacements like the 1.8L to 2.0L+ (e.g., B18C/B20 “Frankenstein” hybrids) and other custom configurations. Critical Note: Final engine assembly requires matching pistons with the correct compression height for your desired displacement and deck clearance. Always verify all clearances (piston-to-valve, piston-to-deck, rod-to-block) during assembly.
Technical Specifications: The Hard Data
| Specification | Detail |
|---|---|
| Part Number | BC6059 |
| Center-to-Center Length | 5.985 inches |
| Big End Bore (Journal Diameter) | 1.771 inches (45.00mm) – B16A Specification |
| Small End Bore (Wrist Pin) | 0.8661 inches (22.00mm) *Confirm for specific piston |
| Fasteners | ARP 2000 Cap Screws (Included) |
| Material | Forged 4340 Chromoly Steel |
| Design | Precision CNC-Machined H-Beam |
| Power Rating | Rated to 400+ Wheel Horsepower |
| Finish | Shot-Peened for Fatigue Resistance |
The Verdict for the Serious Builder
The Brian Crower BC6059 Lightweight Stroker Rod set is a definitive solution for the advancing Honda/Acura performance enthusiast. It transcends being a simple replacement part, serving instead as a calculated engineering upgrade that addresses the specific demands of increased stroke and power output. By integrating a purpose-built 5.985-inch 4340 chromoly forging with the gold-standard security of ARP 2000 fasteners, this package delivers a complete, trusted foundation for your engine’s rotating assembly. For builds targeting a reliable 400whp, whether through turbocharging, supercharging, or all-motor RPM, the BC6059 provides the necessary margin of safety and performance to not only reach your goals but to sustain them. This is the rod you install when the objective is not just power, but unshakable durability under it.
