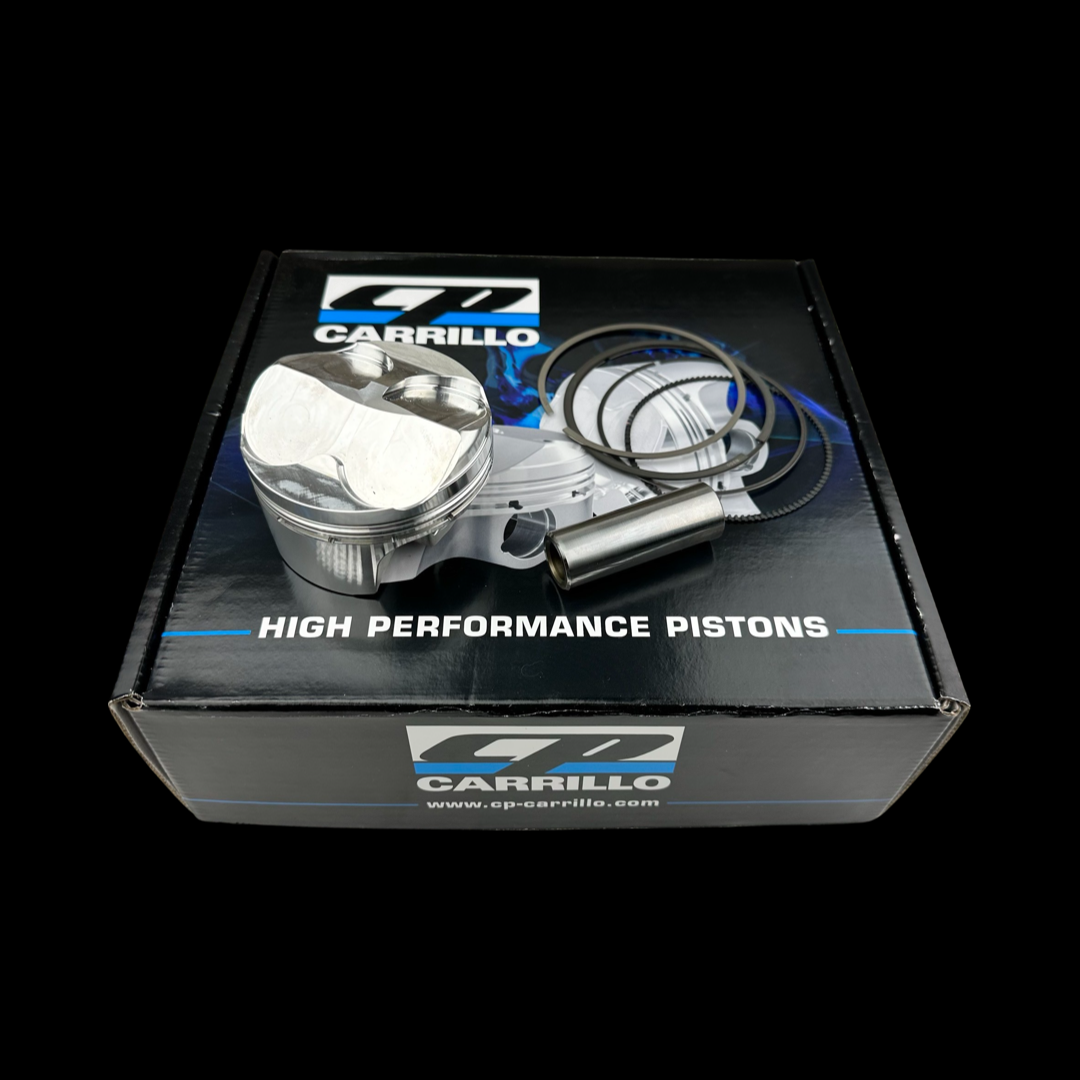

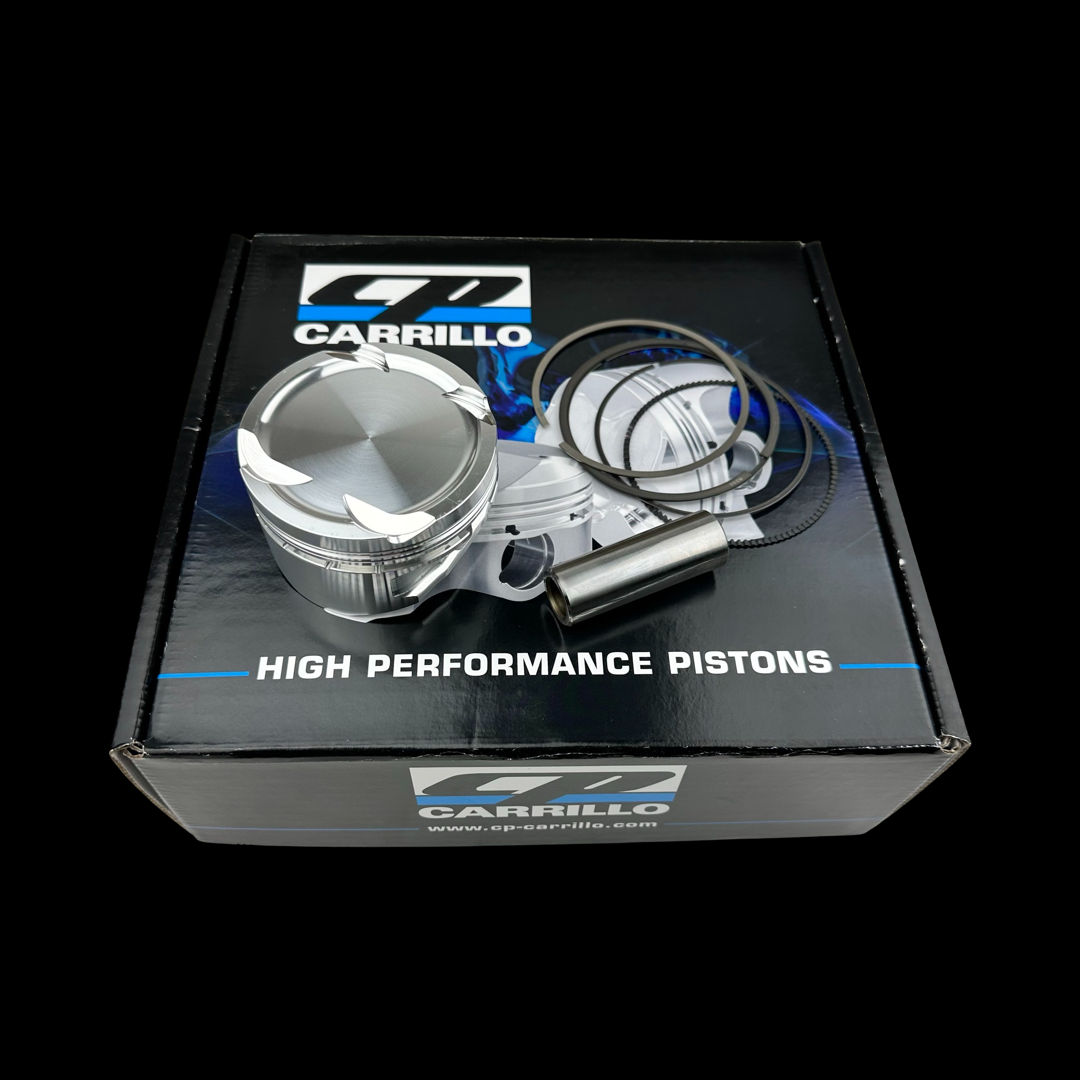

CP7325 – Nissan SR20DE CP Shelf Pistons w/All Hardware – 86.5mm x 9.0:1

For the builder seeking to transform a Nissan SR20DE from a reliable powerplant into a purpose-built performance engine, the selection of internal components is not a matter of preference—it is a matter of physics. The CP7325 Shelf Pistons from CP-Carrillo represent a critical juncture in this transformation. These are not mere replacement parts; they are a calculated upgrade engineered for those who understand that genuine power and reliability are forged from superior materials and precise geometry. Designed as a direct-fit, off-the-shelf solution for the SR20DE, these 86.5mm pistons with a 9.0:1 static compression ratio provide the foundational strength needed for significant power gains through forced induction or aggressive naturally aspirated tuning, all while maintaining crucial streetability. This is the component that separates a rebuilt engine from a re-engineered one.

Engineering for Sustained Performance: The CP-Carrillo Forged Advantage

The CP7325’s performance pedigree begins with its core material: 2618 aluminum alloy. This aerospace-grade alloy is selected for its ultimate strength and fatigue resistance under extreme thermal and pressure loading, a non-negotiable requirement for forced induction or high-RPM applications. Unlike the hypereutectic cast pistons found in most OEM applications, these are precision-forged. The forging process aligns the metal’s grain structure, creating a part that is significantly denser and more resistant to the destructive forces of detonation and high cylinder pressure. The result is a piston that can reliably contain the added stress of a turbocharger or nitrous system, where factory components would be a liability. The design incorporates a robust, CNC-machined profile with valve reliefs specifically configured for the SR20DE’s head geometry, ensuring proper clearance for aggressive camshafts without compromising structural integrity.

Precise Vehicle Fitment & Application

The “Shelf” in CP Shelf Piston denotes a ready-to-run kit engineered for a specific, popular application—eliminating guesswork and custom machining costs. The CP7325 is designed for a direct fit into the SR20DE cylinder block with a nominal 86.5mm bore.

• Primary Application: Nissan SR20DE engines (DOHC, non-turbo).
• Common Models: Nissan 200SX (S13, S14), 240SX (with SR20DE swap), Silvia, Bluebird, Pulsar GTI-R (non-turbo block).
• Critical Note on Fitment: Always verify your engine’s current cylinder bore condition. A professional machine shop must measure and likely hone the block to achieve the precise piston-to-wall clearance specified by CP (typically 0.0035″ – 0.0040″ for 2618 alloy). This kit is designed for a finished 86.5mm bore. Attempting to install without proper machining will result in immediate failure.

Uncompromised Benefits for the Discerning Builder

Choosing the CP7325 kit is a decision that pays dividends across the entire engine’s performance envelope and service life. These pistons deliver a suite of advantages that directly translate to on-track performance and long-term durability.

• Forged 2618 Aluminum Strength: Provides the highest possible resistance to detonation and mechanical shock, essential for boosted or high-compression builds.
• Optimized 9.0:1 Compression Ratio: This ratio offers an ideal balance for forced induction, providing strong off-boost response and drivability while allowing for substantial boost pressure without resorting to exotic fuel requirements. For N/A builds, it offers a tangible increase over many stock figures.
• Complete Kit Configuration: Includes wrist pins and spiral locks, ensuring compatibility and simplifying procurement. No searching for separate, matching components.
• CNC-Machined Consistency: Every piston is machined to exacting tolerances, ensuring uniform weight and balance across all four cylinders, which is critical for smooth high-RPM operation.
• Proven Shelf Design: Utilizes a time-tested profile that maintains proper flame front propagation and thermal characteristics specific to the SR20DE combustion chamber.

Technical Specifications & Kit Contents

Installation Philosophy & Final Assembly Notes

The performance potential of the CP7325 pistons can only be realized through meticulous installation and supporting modifications. This begins with professional cylinder block machining. The block must be bored and honed with a torque plate to simulate cylinder head clamping force, ensuring a perfectly round bore at operating conditions. Piston-to-wall clearance must be set to CP’s recommendation for the 2618 alloy, which is larger than OEM to account for its greater thermal expansion. Pair these pistons with a set of quality piston rings, such as a modern plasma-moly or ductile iron set, filed to the correct end-gap for your application (forced induction requires larger gaps). Finally, balancing the entire rotating assembly—crankshaft, pistons, pins, locks, and connecting rods—is not an optional service; it is a fundamental requirement for an engine that will see elevated RPM. The forged design, as explored in-depth by experts like Engine Builder Magazine, demands a systems approach to assembly. The CP7325 provides the cornerstone; your precision in assembly builds the monument.
