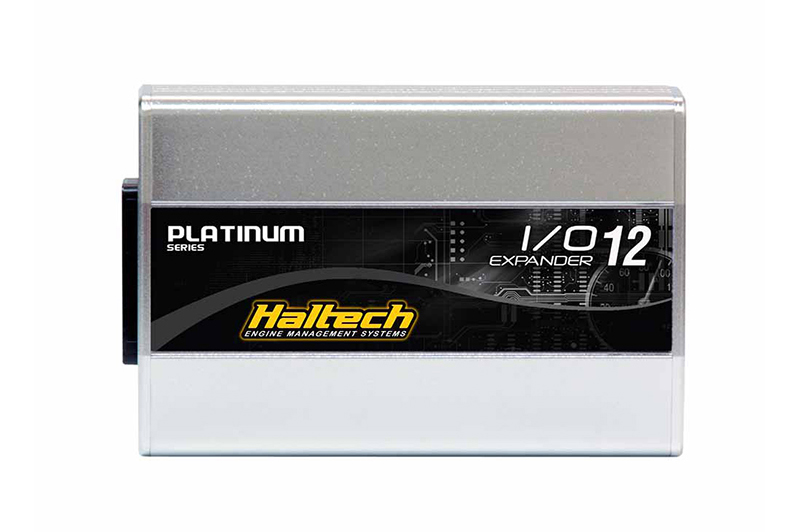

IO 12 Expander – 12 Channel (CAN ID – Box A)

Strategic ECU Expansion: IO 12 Expander (CAN ID – Box A)

The IO 12 Expander- 12 Channel is an essential CAN-based peripheral designed to break the physical limitations of standalone engine management. Assigned with CAN ID – Box A, this module serves as the primary expansion node for adding critical inputs and outputs to your vehicle’s network. This is a foundational component for builders of 2JZ, LS-swap, and high-spec K-swap race cars who require extensive telemetry for traction control, closed-loop boost control, and detonation protection. By moving auxiliary signals to the CAN bus, this expander ensures that your standalone ECU integration remains clean, professional, and scalable.

Engineering Principles: Digital Logic Expansion

A modern ECU like the Haltech Elite or Nexus processes thousands of data points per second. The IO 12 Expander acts as an Analogue-to-Digital interface hub, collecting real-world sensor data and transmitting it to the main ECU via a single 4-wire CAN connection. It features 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), and 4 Analogue Voltage Inputs (AVI). This configuration is optimized for a balanced sensor suite, allowing the tuner to add wheel speed sensors, fuel pressure transducers, and indicator lamps without taking up valuable pins on the main ECU harness. The “Box A” identifier ensures that the ECU can distinguish this module from a secondary “Box B” unit on the same network.

Operational Benefits for Force Induction Builds

For engines pushed to the outer limits of performance, data is the only insurance policy. Integrating an IO 12 Expander allows the tuner to monitor additional parameters vital for detonation protection, such as multi-cylinder EGTs or intra-cooler pressure drops. In a fuel map calibration context, the extra AVI channels can be used to log ambient pressure and temperature at the turbo inlet, providing the ECU with the data needed for precise density compensations. The DPO channels are excellent for driving closed-loop boost control solenoids or nitrous stages, offloading the high-speed switching tasks from the ECU’s internal drivers and improving overall system response time.

Installation and Harness Integration

This expander is designed for universal harness integration and includes a 300mm Elite CAN cable (DTM-4 to 8-pin Tyco). It is Plug ‘n’ Play compatible with an Elite ECU CAN port or a 4-port CAN HUB. For installations on older Haltech platforms, such as the Platinum series, the user should order a compatible 8-pin Tyco to Tyco cable. The unit is housed in a CNC-machined, anodized aluminum casing, providing excellent heat dissipation and protection from EMI (Electromagnetic Interference). Proper installation requires identifying a secure mounting point near the additional sensors to minimize analog wire length and signal noise.

Technical Specifications Table

Summary & Includes

The IO 12 Expander (Box A) is the foundational hardware for professional ECU I/O expansion. Includes: 1 x IO 12 Expander and 1 x DTM-4 to 8-pin Tyco CAN Cable (300mm). Note: Mandatory component for builds requiring more than the standard number of sensor inputs or auxiliary outputs.
