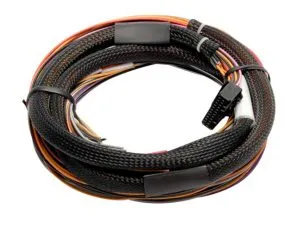

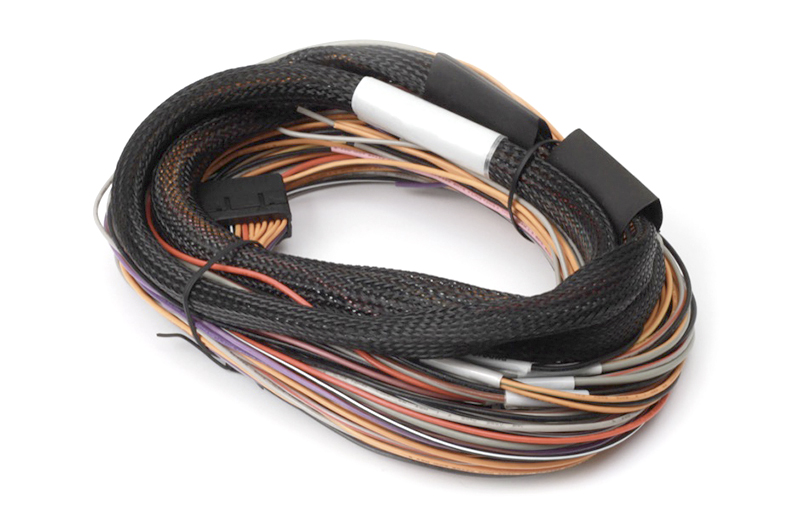

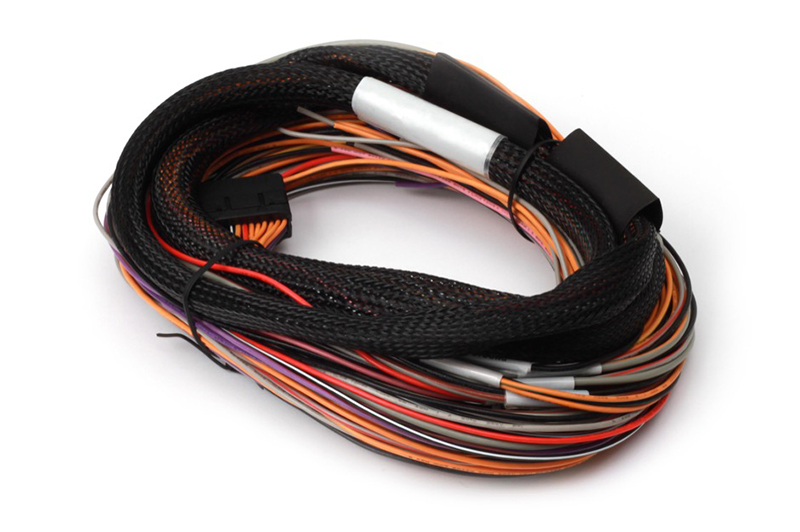

IO 12 Expander Flying Lead Harness Length: 2.5m (8′)

Strategic Expansion Harness: IO 12 Expander Flying Lead (2.5m)

In complex standalone ECU integration projects, the need to add auxiliary sensors and outputs often arises after the main harness is complete. The IO 12 Expander Flying Lead Harness is a 2.5-meter (8-foot) professional-grade wiring solution designed to facilitate the rapid expansion of your vehicle’s I/O capacity. This harness is the designated interface for the IO 12 Expander Box, providing a clean path to add 12 additional channels for monitoring engine vitals like oil pressure, EGT, and fuel pressure. It is a vital component for high-end LS-swap or 2JZ racing builds that require a sophisticated data acquisition network.

Engineering Principles: 2.5m Signal Preservation

An expansion harness must transmit sensitive data over significant lengths without signal degradation. This 2.5m harness is constructed using high-strand-count automotive wire that is loomed and protected for high-heat environments. The IO 12 Expander acts as an Analogue-to-Digital interface node on the CAN bus, and this flying lead harness provides the physical connection to the remote sensors. By utilizing a 2.5-meter length, builders can mount the expander box in the cabin while routing the leads through the firewall to the furthest points of the engine bay or rear chassis. This design minimizes EMI (Electromagnetic Interference) by allowing the sensitive conversion electronics to be mounted away from ignition coils and alternators.

Operational Benefits for Data-Driven Tuning

Integrating an IO 12 expander via this flying lead harness allows the tuner to implement comprehensive detonation protection strategies. For example, by adding four additional AVIs through this harness, the ECU can monitor individual cylinder temperatures or pressure drops across secondary fuel pumps. In a fuel map calibration scenario, having these extra data points allows for finer timing adjustments and safer high-boost operation. The flying lead configuration is the professional’s choice because it allows the installer to cut each wire to the exact length required, maintaining a tidy engine bay while ensuring every connection is securely terminated and weatherproof.

Fitment and Network Logic

This harness suits IO 12 Expander Boxes regardless of whether they are configured for CAN ID – Box A or B. The module end is pre-terminated with a 24-pin high-density connector, while the flying leads provide a “blank slate” for the installer to integrate various motorsport sensors. It is fully compatible with Haltech Elite and Nexus series ECUs, acting as a modular extension of the primary engine management system. During harness integration, it is important to follow the provided wire-identification chart to correctly map the 4 DPOs, 4 DPIs, and 4 AVIs to their intended targets in the ECU software.

Technical Specifications Table

Summary & Includes

The IO 12 Flying Lead Harness is the professional’s solution for modular I/O expansion. Includes: 1 x 2.5m Terminated Flying Lead Harness. Note: This SKU is the harness only; the IO 12 Expander module must be ordered separately.
