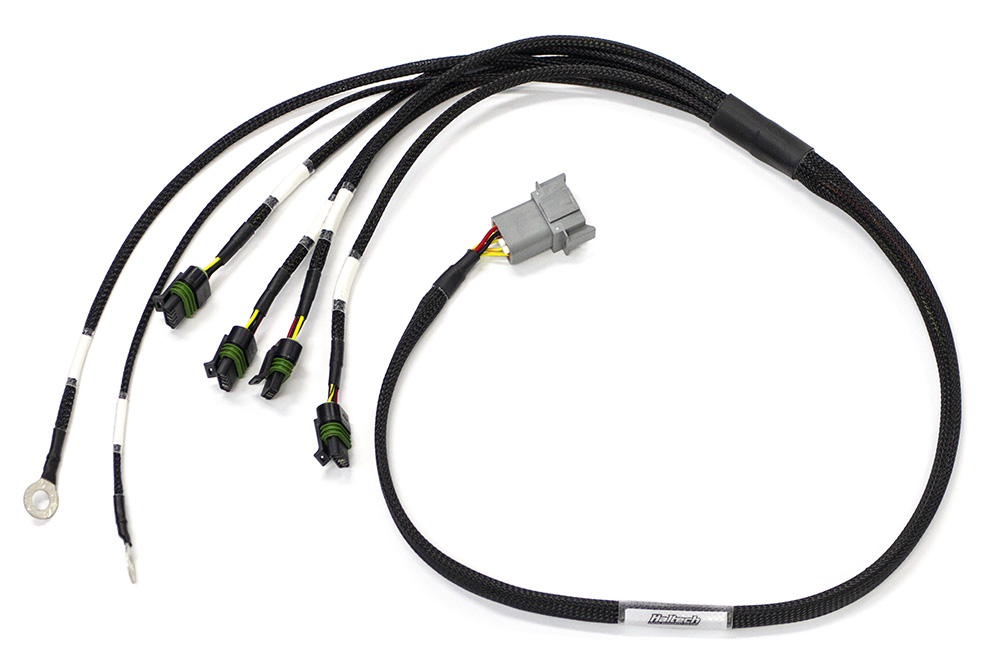

Elite 1000/1500 Terminated Ignition Harness for Mazda 13B (IGN-1A)

Rotary Ignition Reliability: Elite 13B Terminated Ignition Harness

The Mazda 13B rotary engine is world-renowned for its high-revving nature and sensitivity to ignition timing. In a high-performance rotary build, a weak spark can lead to instant engine failure due to apex seal damage. The Elite 1000/1500 Terminated Ignition Harness is specifically engineered to provide a robust electrical foundation for the legendary IGN-1A High Output coils. This harness is designed as a direct add-on for the Elite 1000/1500 Terminated Engine Harnesses, ensuring that the harness integration process is plug-and-play. For tuners pushing high boost on a 13B, this harness provides the security needed for aggressive fuel map calibration and reliable combustion.

Engineering Principles: High-Current Inductive Ignition

The IGN-1A coils are Inductive ignition units capable of producing immense spark energy, but they require a significant amount of current to operate effectively. This terminated harness is built with heavy-gauge power and ground wires to ensure that voltage drop is minimized, allowing the coils to reach their full potential. The harness is fully terminated and loomed to withstand the extreme heat generated in a rotary engine bay, particularly near the turbocharger. By providing a dedicated path for the ignition signals, it minimizes EMI (Electromagnetic Interference) which can otherwise corrupt sensitive sensor data from the eccentric shaft position sensors. This is a critical component for any standalone ECU integration project on an RX-7 or rotary swap.

Operational Benefits: Sequential Rotary Firing

Moving to IGN-1A coils with this harness allows the Haltech Elite to utilize true sequential ignition. In a 13B, this means the ECU can precisely control the leading and trailing spark events independently. This is vital for detonation protection; the split between the leading and trailing spark is a key tuning parameter for rotary engines. With the consistent energy provided by this harness, the tuner can maintain a stable split even at 9000+ RPM. This reliability ensures that the engine produces peak power while maintaining the internal safety margins required for longevity. It is the definitive solution for eliminating the failure-prone factory coils and brittle OEM wiring.

Fitment and Technical Integration

This ignition harness is designed specifically to interface with Haltech Elite 1000/1500 Mazda 13B Terminated Engine Harnesses. It connects directly to the four IGN-1A ignition coils (HT-020114), which are sold separately. The harness is built to the correct lengths for the 13B engine configuration, ensuring a clean and professional installation. It is recommended as a mandatory add-on for any build where the power goals exceed the limits of the stock ignition system. During harness integration, the installer simply plugs the ignition sub-harness into the main engine loom, significantly reducing the complexity of the build.

Technical Specifications

Summary & Includes

The Elite 13B Ignition Harness is the ultimate link for high-output rotary ignition. Includes: 1 x Terminated Ignition Harness for 13B configuration. Note: IGN-1A coils (HT-020114) must be ordered separately to complete the system.
