IO 12 Expander – 12 Channel with Flying Lead Harness Kit (CAN ID – Box A) Length: 2.5m (8′)

Modular Telemetry Integration: IO 12 Expander Kit (CAN ID – Box A)

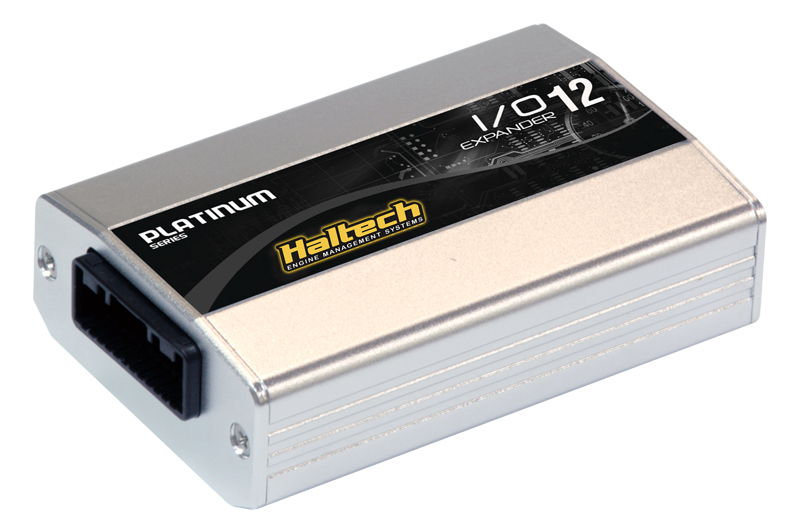

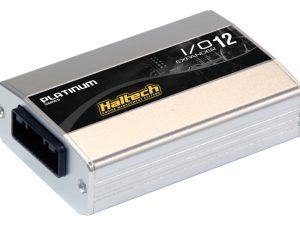

The IO 12 Expander- 12 Channel with Flying Lead Harness Kit is the industry’s premier solution for expanding the digital and analog footprint of a standalone engine management system. Assigned with CAN ID – Box A, this kit is the primary expansion gateway for your vehicle network. It provides a complete solution, including the 12-channel expander module and a 2.5m (8ft) loomed flying lead harness. For builders of professional K-swap, 2JZ, and LS-swap race cars, this kit is foundational for integrating complex sensor arrays and output controls into your standalone ECU integration with motorsport-grade precision.

Engineering Principles: CAN Backbone Resource Management

The IO 12 Expander acts as a remote synaptic node, converting signals from sensors into digital data packets for the CAN bus. It features 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), and 4 Analogue Voltage Inputs (AVI). This Analogue-to-Digital interface allows the tuner to monitor manifold pressure, oil temperature, and wheel speeds through a single expansion node. The 2.5m flying lead harness is built with high-temperature automotive wire, providing the reach needed to integrate distant sensors into the vehicle’s harness integration plan while ensuring zero signal loss, which is vital for maintaining accurate Ignition Timing and fueling corrections.

Operational Benefits: Advanced Load and Safety Telemetry

By adding an IO 12 Expander Box A, the tuner unlocks the ability to implement sophisticated detonation protection strategies. For example, the additional AVI channels can be used to log individual cylinder head temperatures or EGTs through a TCA amplifier. In high-horsepower RB26 or 2JZ builds, this data is used to optimize closed-loop boost control; if the ECU detects any parameter drifting outside the safe window (monitored via the IO 12), it can instantly drop power to protect the engine. The DPO channels provide the muscle to drive auxiliary fuel pumps, cooling fans, or nitrous solenoids, ensuring that the standalone ECU integration remains the master of all physical systems.

Installation and Professional Interface

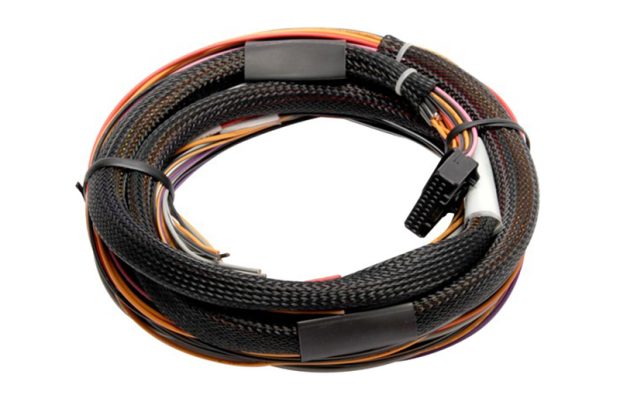

This kit is designed for a professional, seamless harness integration and includes the IO 12 Expander, a 2.5m flying lead harness, and a 300mm Elite CAN cable. The expander is Plug ‘n’ Play compatible with an Elite ECU CAN port and is also compatible with Haltech’s Nexus and Platinum platforms. During installation, the flying leads allow the installer to build a custom-length sequential I/O harness, which is essential for maintaining a clean and weatherproof engine bay. Proper two-point calibration of all analog sensors within the ECU software ensures that the data reported to the iC-7 Digital Display is deterministic and reliable for every pull.

Technical Specifications Table

Summary & Includes

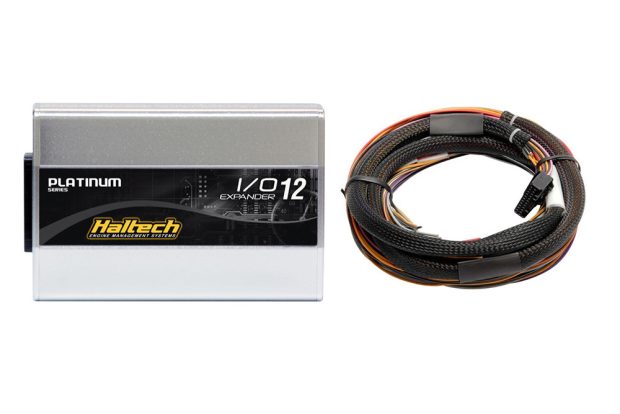

The IO 12 Expander Kit (Box A) is the definitive turn-key solution for primary ECU I/O expansion. Includes: 1 x IO 12 Expander (Box A), 1 x 2.5m Flying Lead Harness, and 1 x Elite CAN Cable. Note: The primary node for adding essential sensors and outputs to any Haltech-based racing system.
